ST184R-BCPSKQ (1989)
Toyota Celica

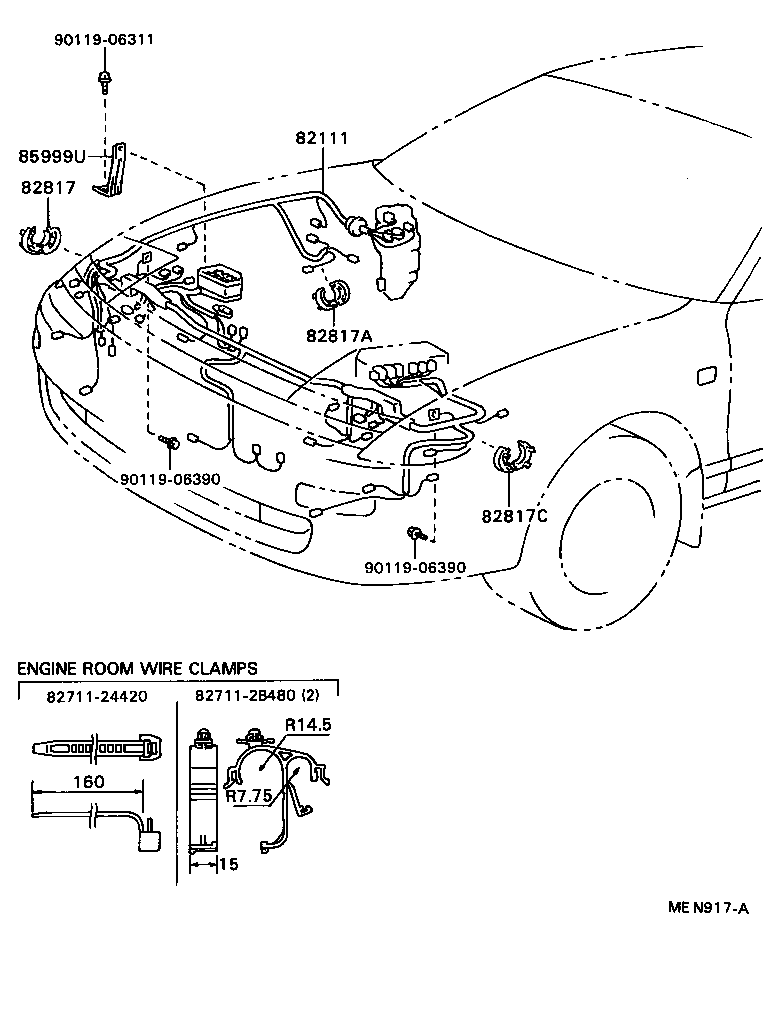

ILLUST NO. 1 OF 8(8910- )RHD
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2B280 |
ST184 |
1 | ||
| 82111-2D670 |
ST184 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
AT180,ST18# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32420 |
AT180,ST18# |
1 | ||
| 82817-2B730 |
AT180,ST18# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-2B200 |
AT180,ST18# |
1 | ||
| 85999U - BRACKET, RELAY BLOCK | ||||
| 85999-20360 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82711-2B480 | ||||
| 90119-06311 | ||||
| 90119-06390 | ||||

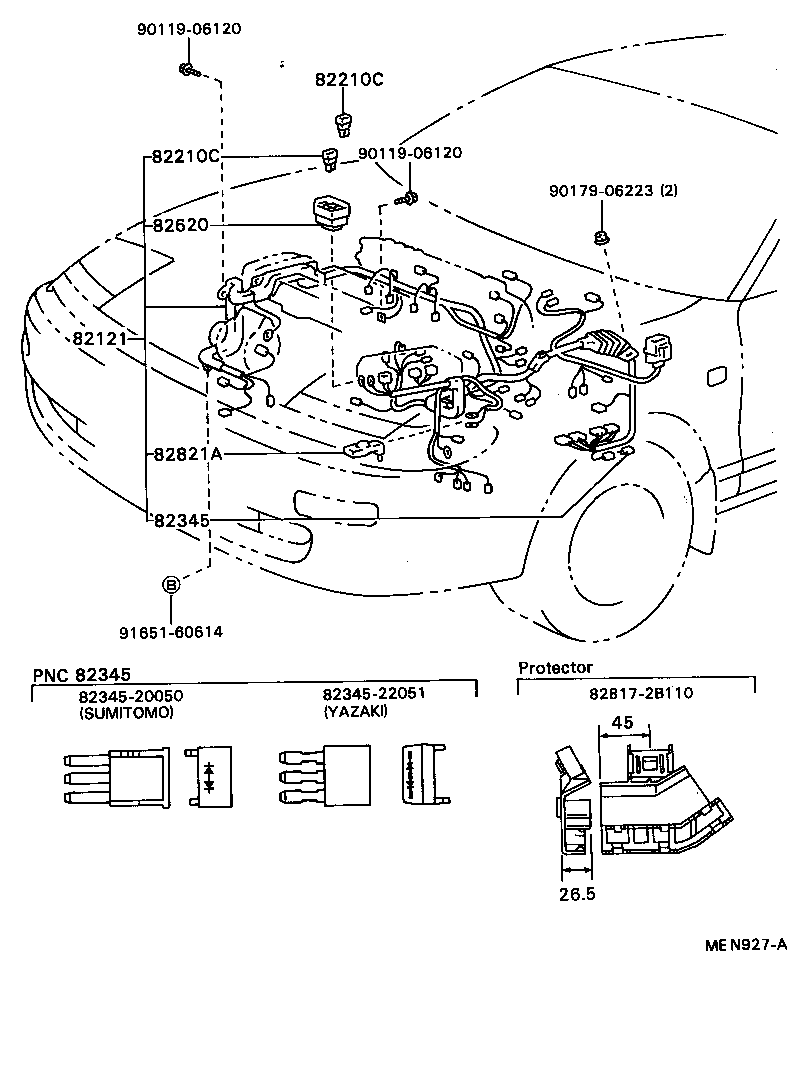

ILLUST NO. 2 OF 8(8910- )ST184
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2B640 |
ST184..NOB..ATM |
1 | ||
| 82121-2G531 |
ST184..ATM |
1 | ||
| 82121-2G530 |
ST184..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AT180,ST18# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AT180,ST18# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08188 |
AT180,ST184,185 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
ST184,185;AT180..LHD 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08188 |
AT180,ST18# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
AT180,ST184,185 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08188 |
AT180,ST18# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08189 |
AT180,ST18# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08190 |
ST184,185;AT180,ST182..LHD 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08188 |
AT180,ST18# 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08189 |
AT180,ST184,185 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AT180,ST18# 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AT180,ST18# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AT180,ST18# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08188 |
AT180,ST184,185 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
ST184,185;AT180..LHD 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08188 |
AT180,ST18# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
AT180,ST184,185 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08188 |
AT180,ST18# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08189 |
AT180,ST18# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08190 |
ST184,185;AT180,ST182..LHD 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08188 |
AT180,ST18# 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08189 |
AT180,ST184,185 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AT180,ST18# 100A,TERM.:MALE,BLUE |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
ST184..NOB..ATM ENGINE WIRE,SUMITOMO |
1 | ||
| 82345-20040 |
ST185..TBO4W;AT180,ST182,184 COWL WIRE,TYPE A |
1 | ||
| 82345-22051 |
ST184..NOB..ATM ENGINE WIRE,YAZAKI |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
ST184..NOB..ATM ENGINE WIRE,SUMITOMO |
1 | ||
| 82345-20040 |
ST185..TBO4W;AT180,ST182,184 COWL WIRE,TYPE A |
1 | ||
| 82345-22051 |
ST184..NOB..ATM ENGINE WIRE,YAZAKI |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20140 |
AT180,ST182,184 |
1 | ||
| 82620-20140 |
AT180,ST182,184 |
1 | ||
| 82620-20140 |
AT180,ST184 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20160 |
AT180,ST18# |
1 | ||
| 82821-20160 |
AT180,ST18# |
1 | ||
| 82821-20160 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 82345-20050 | ||||
| 82345-22051 | ||||
| 82817-2B110 | ||||
| 90119-06120 | ||||
| 90179-06223 | ||||
| 91651-60614 | ||||

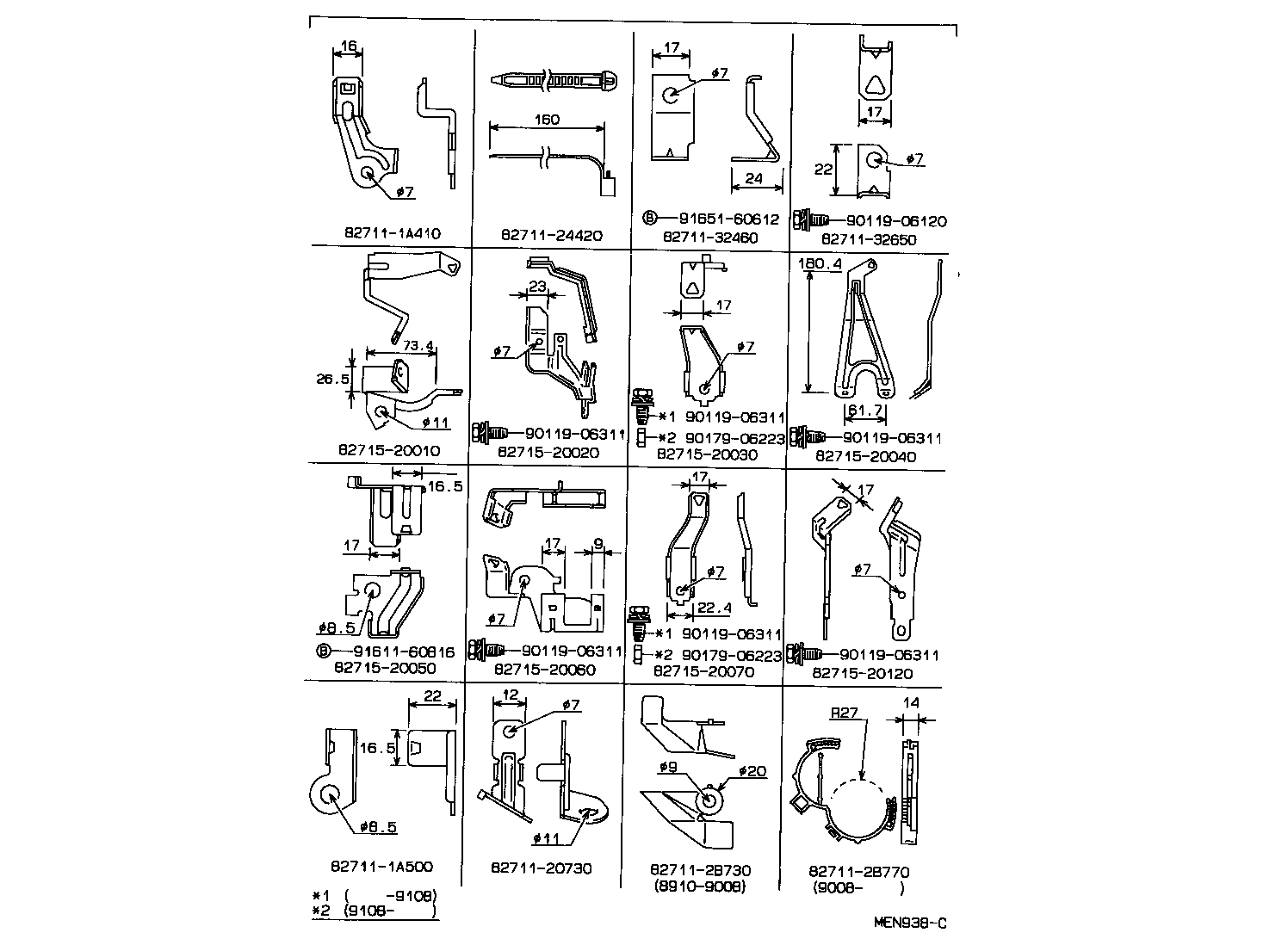

ILLUST NO. 3 OF 8(8910- )
ENGINE WIRE CLAMPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A410 | ||||
| 82711-1A500 | ||||
| 82711-20730 | ||||
| 82711-24420 | ||||
| 82711-2B730 | ||||
| 82711-2B770 | ||||
| 82711-32460 | ||||
| 82711-32650 | ||||
| 82715-20010 | ||||
| 82715-20020 | ||||
| 82715-20030 | ||||
| 82715-20040 | ||||
| 82715-20050 | ||||
| 82715-20060 | ||||
| 82715-20070 | ||||
| 82715-20120 | ||||
| 90119-06120 | ||||
| 90119-06311 | ||||
| 90179-06223 | ||||
| 91611-60816 | ||||
| 91651-60612 | ||||

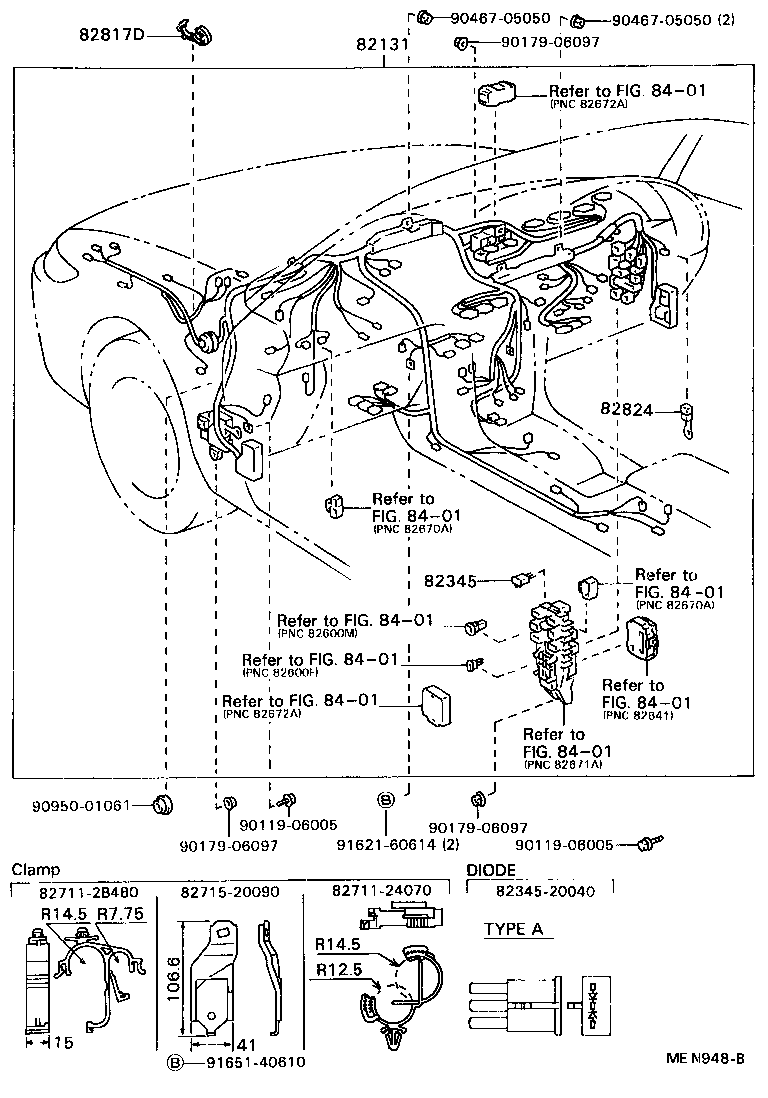

ILLUST NO. 4 OF 8(8910- )RHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2H160 |
ST184 |
1 | ||
| 82131-2H161 |
ST184..MTM;ST184..NOB..ATM |
1 | ||
| 82131-2M080 |
ST184..ATM |
1 | ||
| 82345 - DIODE | ||||
| 82345-20050 |
ST184..NOB..ATM ENGINE WIRE,SUMITOMO |
1 | ||
| 82345-20040 |
ST185..TBO4W;AT180,ST182,184 COWL WIRE,TYPE A |
1 | ||
| 82345-22051 |
ST184..NOB..ATM ENGINE WIRE,YAZAKI |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-32420 |
AT180,ST18# |
1 | ||
| 82817-2B730 |
AT180,ST18# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
ST182;AT180,ST184..RHD ENGINE WIRE |
1 | ||
| 82824-20050 |
AT180,ST184..RHD ENGINE WIRE |
1 | ||
| 82824-20060 |
AT180,ST18# COWL WIRE |
1 | ||
| Common parts | ||||
| 82345-20040 | ||||
| 82711-24070 | ||||
| 82711-2B480 | ||||
| 82715-20090 | ||||
| 90119-06005 | ||||
| 90179-06097 | ||||
| 90467-05050 | ||||
| 90950-01061 | ||||
| 91621-60614 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||

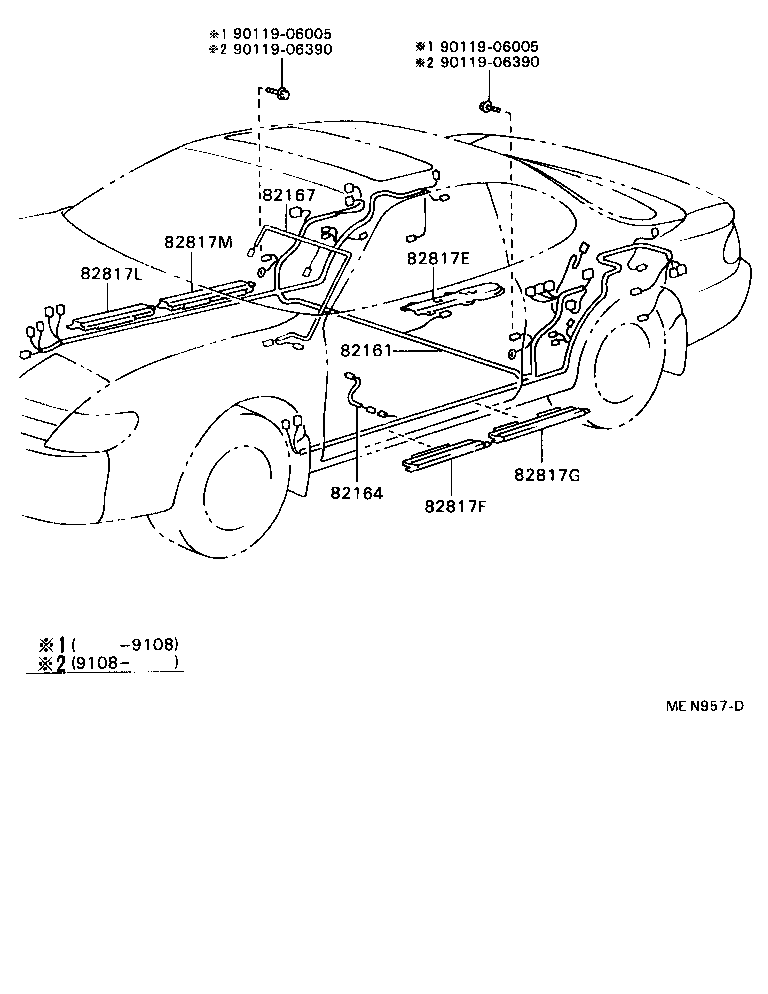

ILLUST NO. 6 OF 8(8910- )
FLOOR,FRAME WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2B681 |
AT180,ST184..RHD..CP |
1 | ||
| 82161-2H080 |
ST184..CP |
1 | ||
| 82161-2B680 |
AT180,ST184..RHD..CP |
1 | ||
| 82161-2H070 |
ST184..CP W(*66) |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-2B590 |
AT180,ST184..RHD |
1 | ||
| 82817-2B591 |
AT180,ST184..RHD |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-2B611 |
AT180,ST184..RHD |
1 | ||
| 82817-2B610 |
AT180,ST184..RHD |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06390 | ||||

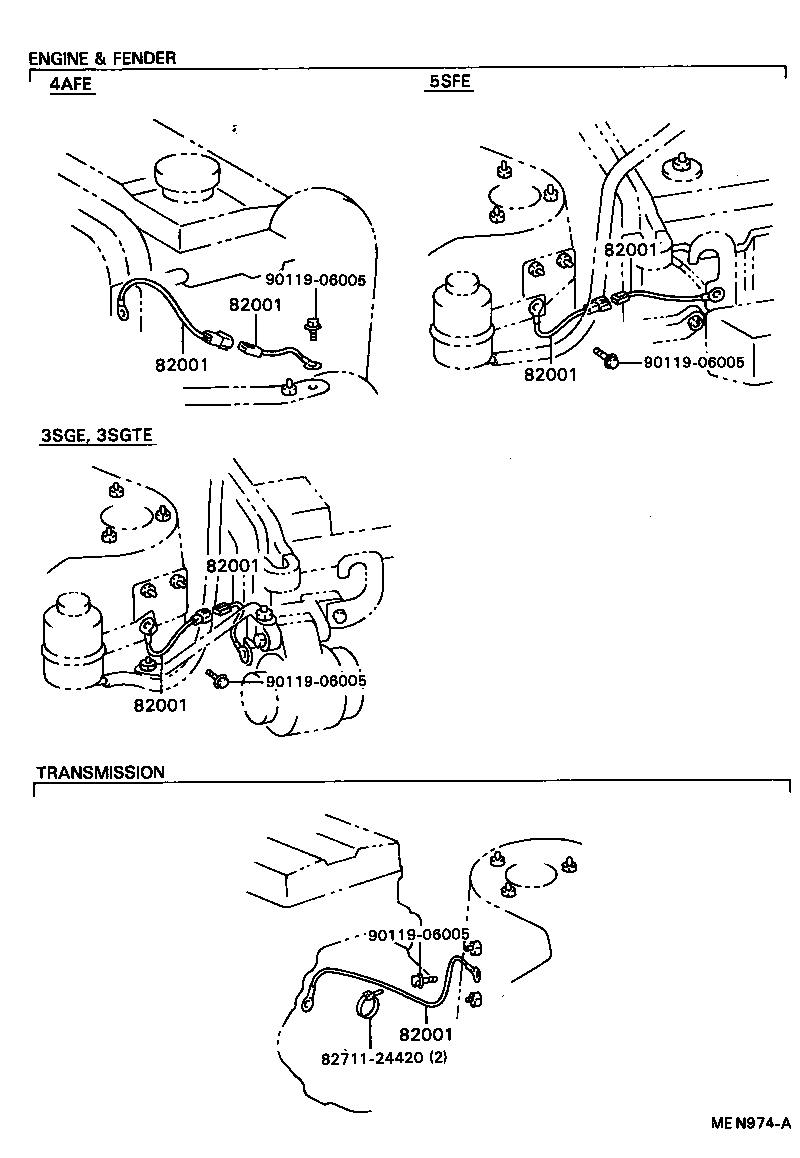

ILLUST NO. 7 OF 8(8910- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT180,ST18# FENDER RH |
1 | ||
| 90980-07280 |
ST184 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT180,ST18# TRANSMISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT180,ST18# FENDER RH |
1 | ||
| 90980-07280 |
ST184 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT180,ST18# TRANSMISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT180,ST18# FENDER RH |
1 | ||
| 90980-07280 |
ST184 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT180,ST18# TRANSMISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT180,ST18# FENDER RH |
1 | ||
| 90980-07280 |
ST184 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT180,ST18# TRANSMISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT180,ST18# FENDER RH |
1 | ||
| 90980-07280 |
ST184 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT180,ST18# TRANSMISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT180,ST18# FENDER RH |
1 | ||
| 90980-07280 |
ST184 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT180,ST18# TRANSMISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AT180,ST18# FENDER RH |
1 | ||
| 90980-07280 |
ST184 ENGINE HANGER |
1 | ||
| 90980-07264 |
AT180,ST18# TRANSMISSION |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06005 | ||||

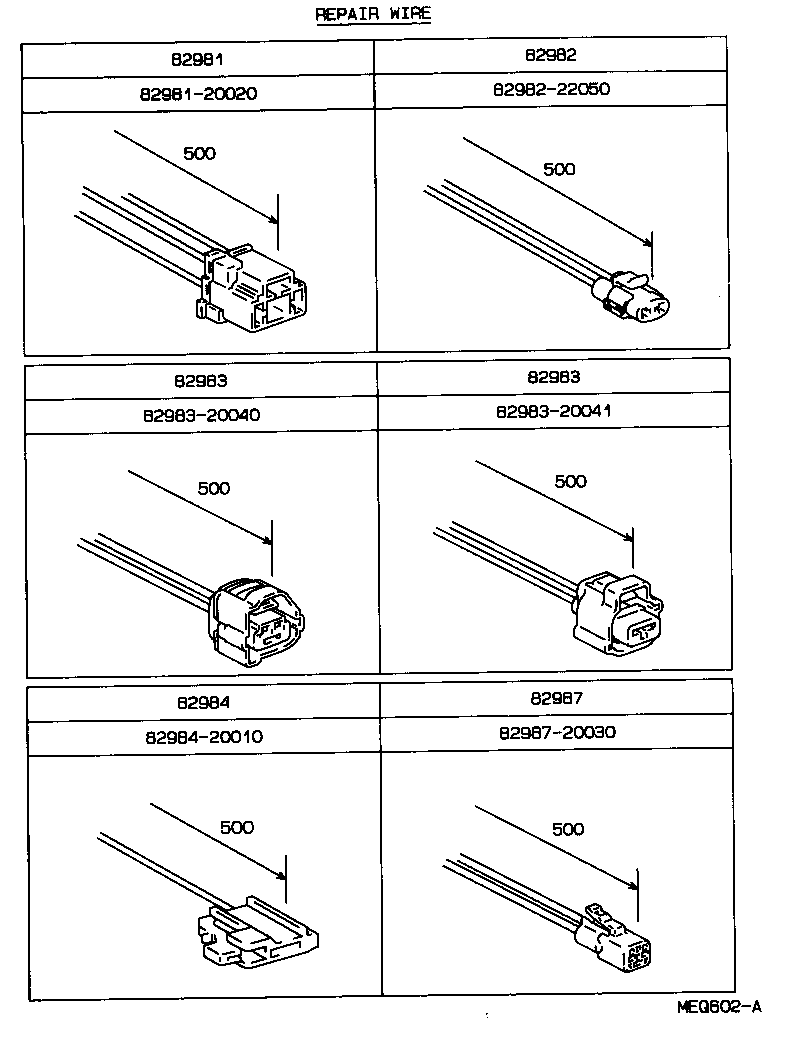

ILLUST NO. 8 OF 8(8910- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20020 |
AT180,ST18# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
AT180,ST18# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20041 |
AT180,ST18# |
1 | ||
| 82983-20040 |
AT180,ST18# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20041 |
AT180,ST18# |
1 | ||
| 82983-20040 |
AT180,ST18# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AT180,ST18# |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-20030 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 82981-20020 | ||||
| 82982-22050 | ||||
| 82983-20040 | ||||
| 82983-20041 | ||||
| 82984-20010 | ||||
| 82987-20030 | ||||

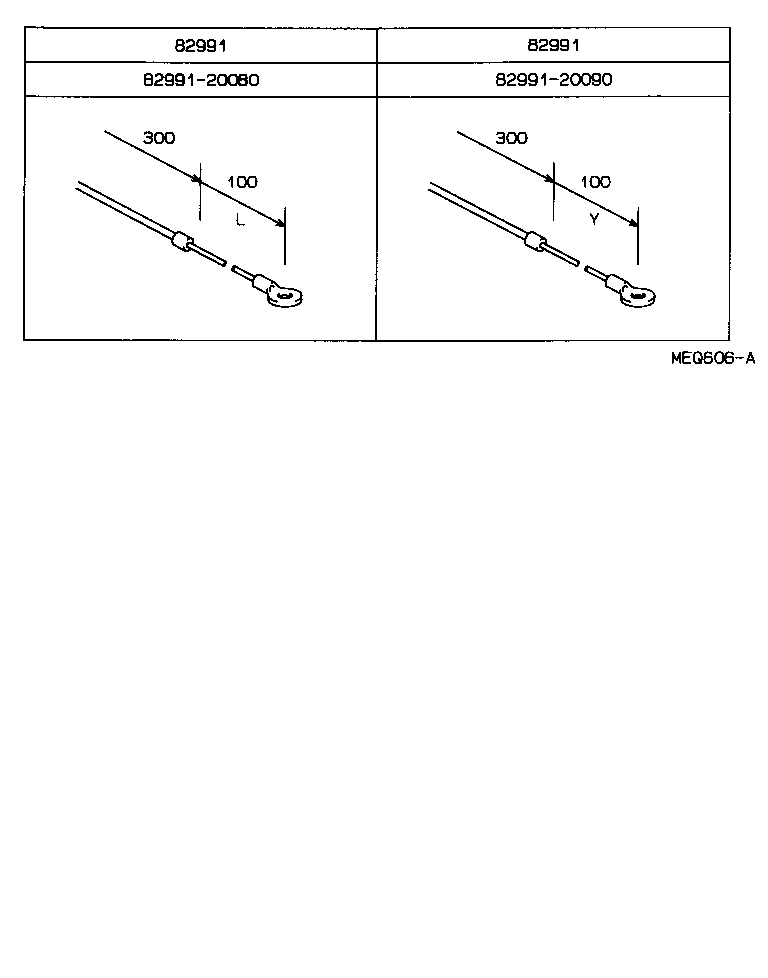

ILLUST NO. 8 OF 8(8910- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20090 |
AT180,ST18# 4WS |
1 | ||
| 82991-20080 |
AT180,ST18# MAIN |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20090 |
AT180,ST18# 4WS |
1 | ||
| 82991-20080 |
AT180,ST18# MAIN |
1 | ||
| Common parts | ||||
| 82991-20080 | ||||
| 82991-20090 | ||||

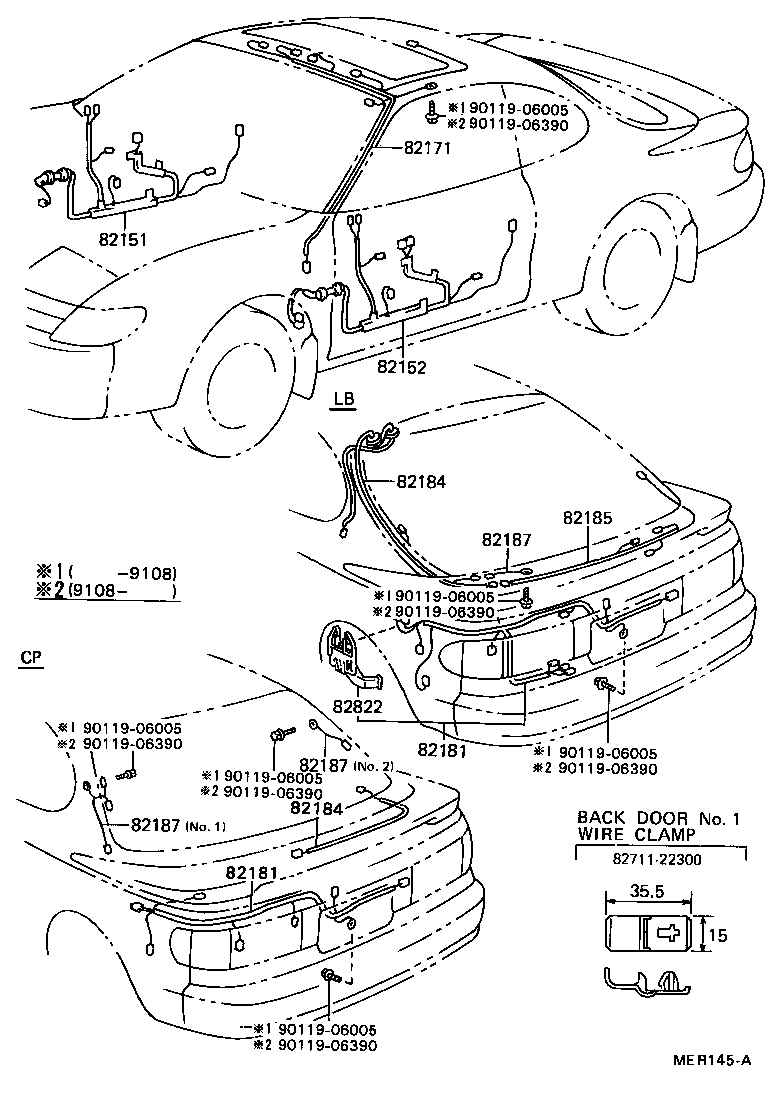

ILLUST NO. 5 OF 8(8910- )
DOOR,ROOF,LUGGAGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2B180 |
ST182,184 |
1 | ||
| 82151-2B090 |
ST184 W(POWER WINDOW) |
1 | ||
| 82151-2B181 |
ST182,184 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2B050 |
ST182,184 |
1 | ||
| 82152-20870 |
ST184 W(POWER WINDOW) |
1 | ||
| 82152-2B051 |
ST182,184 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20430 |
AT180,ST18# |
1 | ||
| 82171-20530 |
AT180,ST18# W(SUN ROOF) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20480 |
AT180,ST184..CP |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20480 |
AT180,ST184..CP |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20140 |
ST184..CP |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20140 |
ST184..CP |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20130 |
AT180,ST184..CP NO.2 |
1 | ||
| 82187-20180 |
AT180,ST184..CP NO.1 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20130 |
AT180,ST184..CP NO.2 |
1 | ||
| 82187-20180 |
AT180,ST184..CP NO.1 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20130 |
AT180,ST184..CP NO.2 |
1 | ||
| 82187-20180 |
AT180,ST184..CP NO.1 |
1 | ||
| Common parts | ||||
| 82711-22300 | ||||
| 90119-06005 | ||||
| 90119-06390 | ||||
