ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

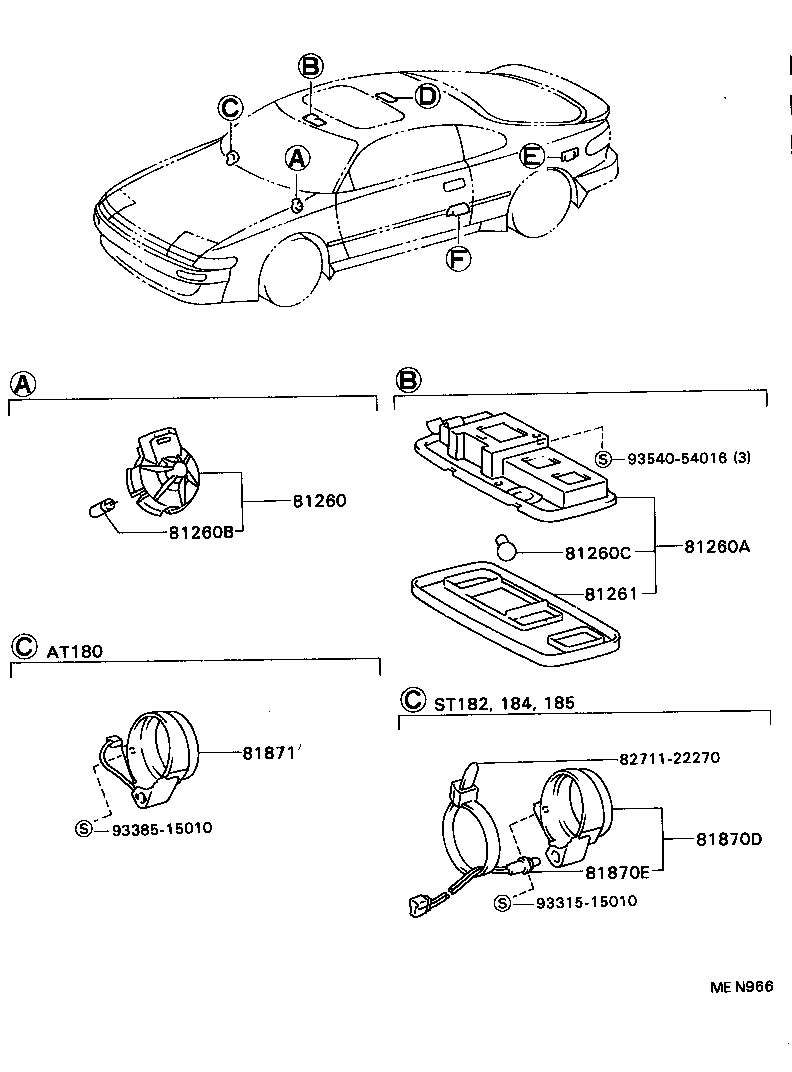

ILLUST NO. 1 OF 2(8910- )

Click highlighted areas on diagram

diagram 81260 81260A 81260B 81260C 81261 81870D 81870E 81871 8271122270 9331515010 9338515010 9354054016
Part # Description Qty Price
81260 - LAMP ASSY, GLOVE BOX
81260-32071

AT180,ST18#

 1
81260A - LAMP ASSY, MAP
81260-2016004

AT180,ST182,184

DARK BLUE,TRIM8#

 1
81260-20160S3

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
81260-2016003

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

AT180,ST18#

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AT180,ST18#

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-2016004

AT180,ST182,184

DARK BLUE,TRIM8#

 1
81261-2016003

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-20040

ST18#

 1
81870-20020

ST18#

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

ST18#

12V 1.2W W/O SOCKET

 1
Common parts
82711-22270
93315-15010
93385-15010
93540-54016

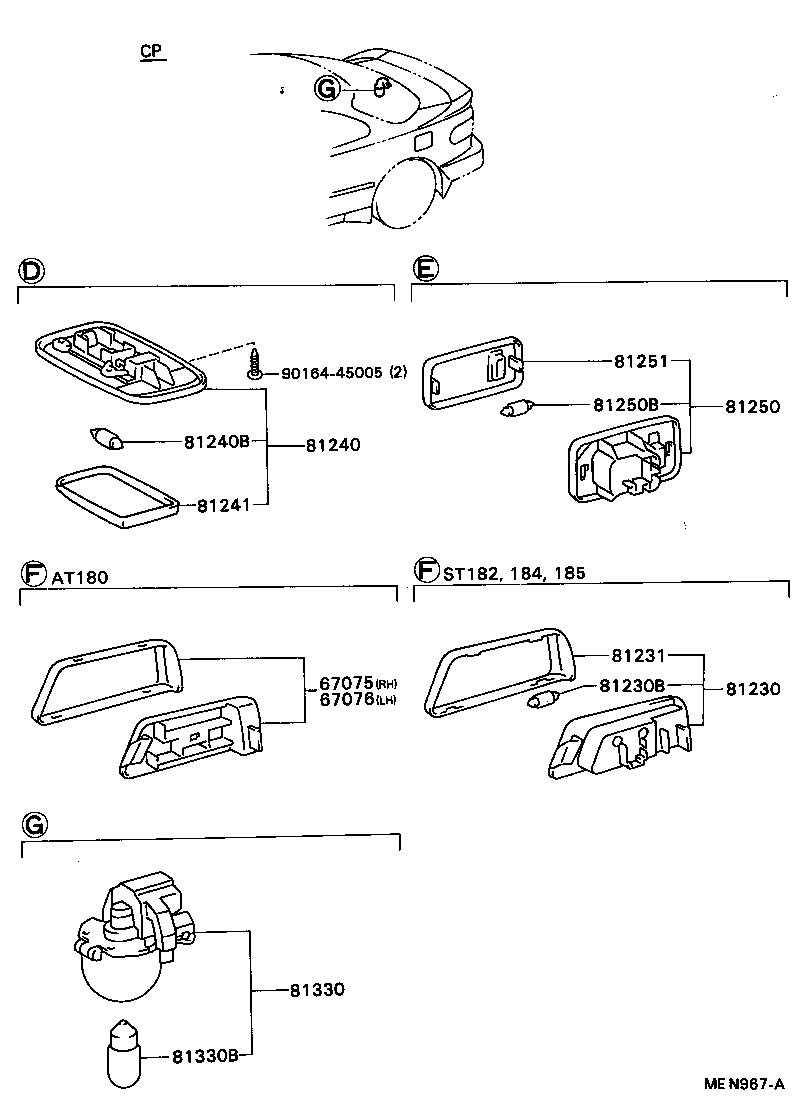

ILLUST NO. 2 OF 2(8910- )

Click highlighted areas on diagram

diagram 67075 67076 81230 81230B 81231 81240 81240B 81241 81250 81250B 81251 81330 81330B 9016445005
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-20030

ST18#

RH

 1
81310-20010

ST18#

LH

 1
81230B - BULB(FOR COURTESY LAMP)
90981-14001

ST18#

12V 3W

 2
81231 - LENS, COURTESY LAMP
81311-20010

ST18#

LH

 1
81231-20030

ST18#

RH

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-2011003

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
81240-2011004

AT180,ST182,184

DARK BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AT180,ST18#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AT180,ST18#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30090

AT180,ST184..CP

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

AT180,ST184..CP

12V 3.8W

 1
Common parts
90164-45005
