ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )CP

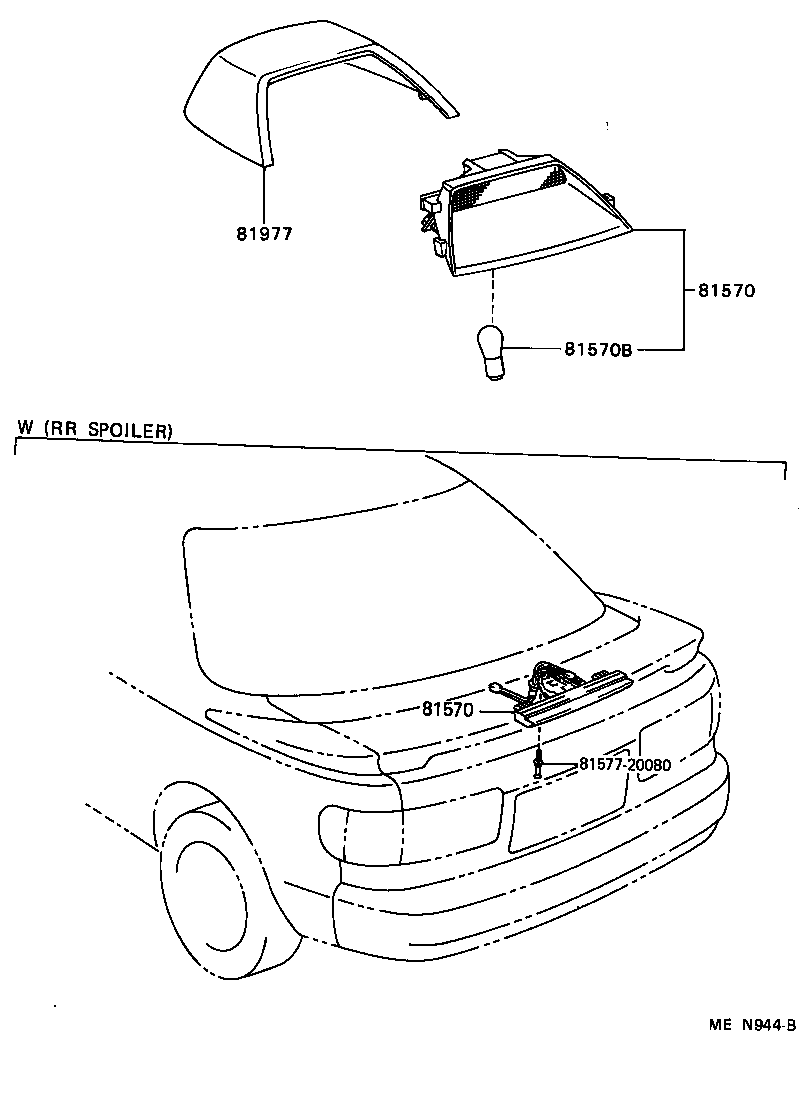

Click highlighted areas on diagram

diagram 81570 81570 81570B 8157720080 81977
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-20120

ST184..CP

W(REAR SPOILER)

 1
81570-20060

ST184..CP

 1
81570 - LAMP ASSY, CENTER STOP
81570-20120

ST184..CP

W(REAR SPOILER)

 1
81570-20060

ST184..CP

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

ST184..CP

12V 27W

 1
81977 - COVER, CENTER STOP LAMP
81977-2003004

ST184..CP

DARK BLUE,TRIM8#

 1
81977-2003003

ST184..CP

SHADOW GRAY,TRIM1#

 1
Common parts
81577-20080
