ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )

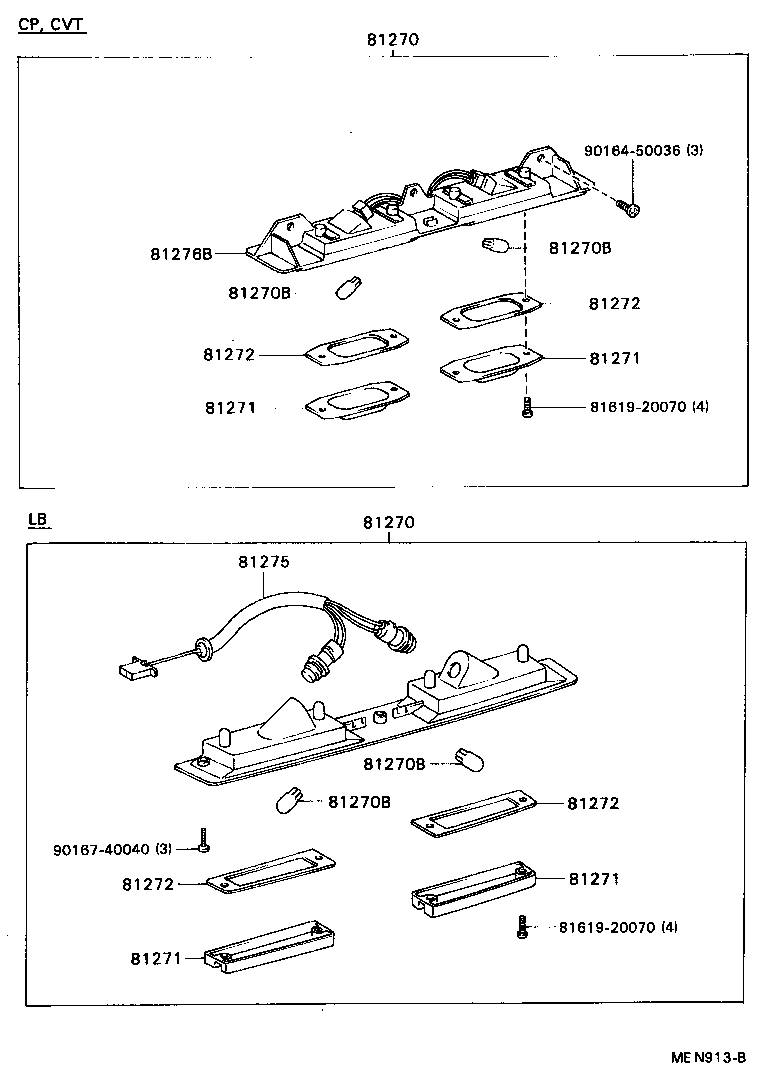

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-20440 |
AT180,ST184..CP |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-20440 |
AT180,ST184..CP |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AT180,ST18# 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AT180,ST18# 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AT180,ST18# 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AT180,ST18# 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20440 |
AT180,ST184..CP |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20440 |
AT180,ST184..CP |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20440 |
AT180,ST184..CP |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20440 |
AT180,ST184..CP |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-20440 |
AT180,ST184..CP |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-20440 |
AT180,ST184..CP |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-20440 |
AT180,ST184..CP |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-20440 |
AT180,ST184..CP |
2 | ||
| 81276B - COVER, LICENSE PLATE LAMP | ||||
| 81276-20440 |
AT180,ST184..CP |
1 | ||
| Common parts | ||||
| 81619-20070 | ||||
| 90164-50036 | ||||
| 90167-40040 | ||||
