ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )ST184

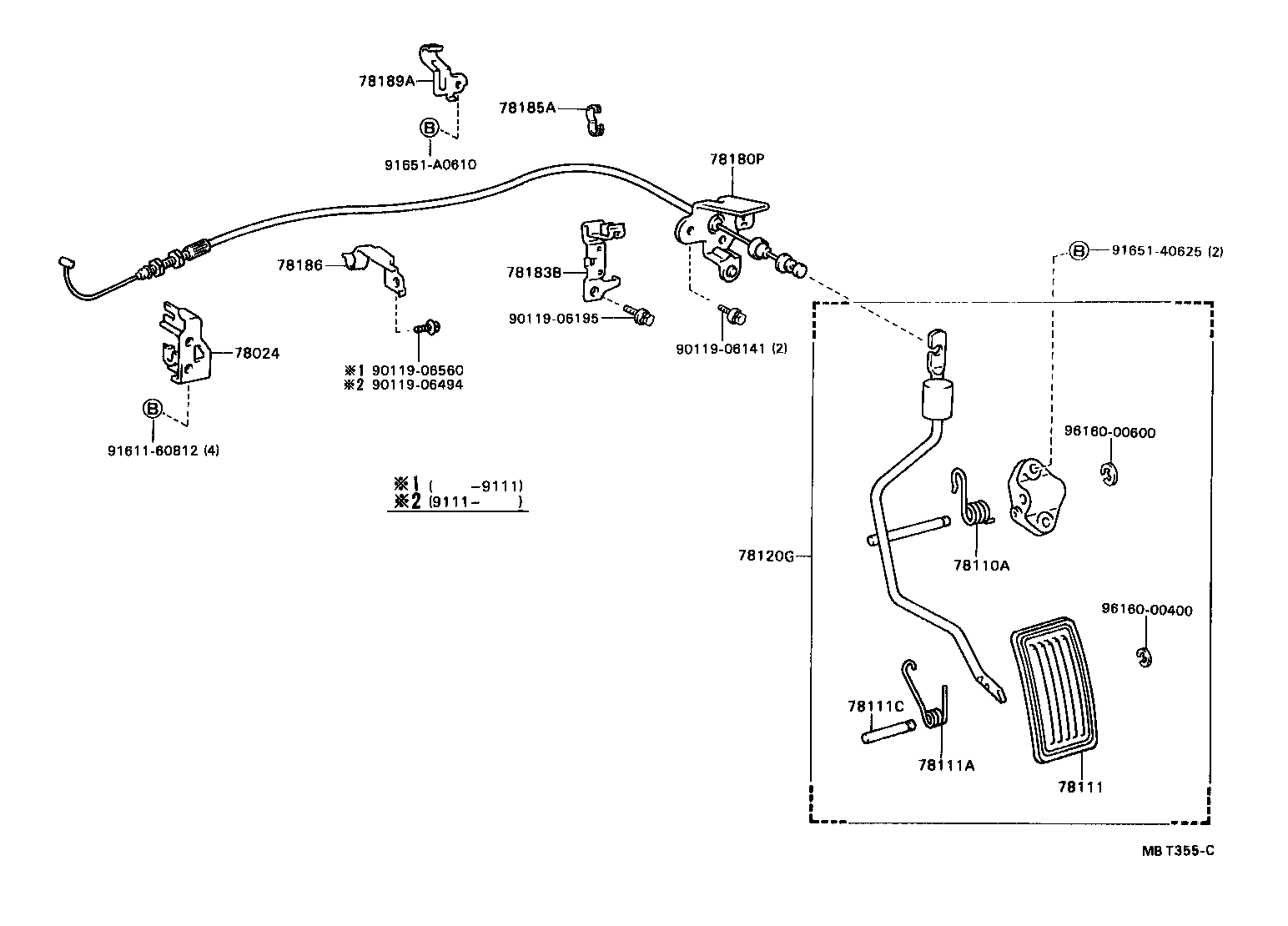

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20130 |
ST184 |
1 | ||
| 78024-20090 |
ST184 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18050 |
ST184..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
AT180,ST18# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18048 |
ST184..ATM |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT180,ST18# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20450 |
ST184..ATM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B290 |
ST184 |
1 | ||
| 78180-2B640 |
ST184 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20130 |
ST184,185 |
1 | ||
| 78183-20130 |
AT180,ST184,185..RHD |
1 | ||
| 78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78185-20080 |
ST184 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-32040 |
ST184 |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-20120 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 90119-06195 | ||||
| 90119-06494 | ||||
| 90119-06560 | ||||
| 91611-60812 | ||||
| 91651-40625 | ||||
| 91651-A0610 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
