ST184R-BCPSKQ (1989)
Toyota Celica

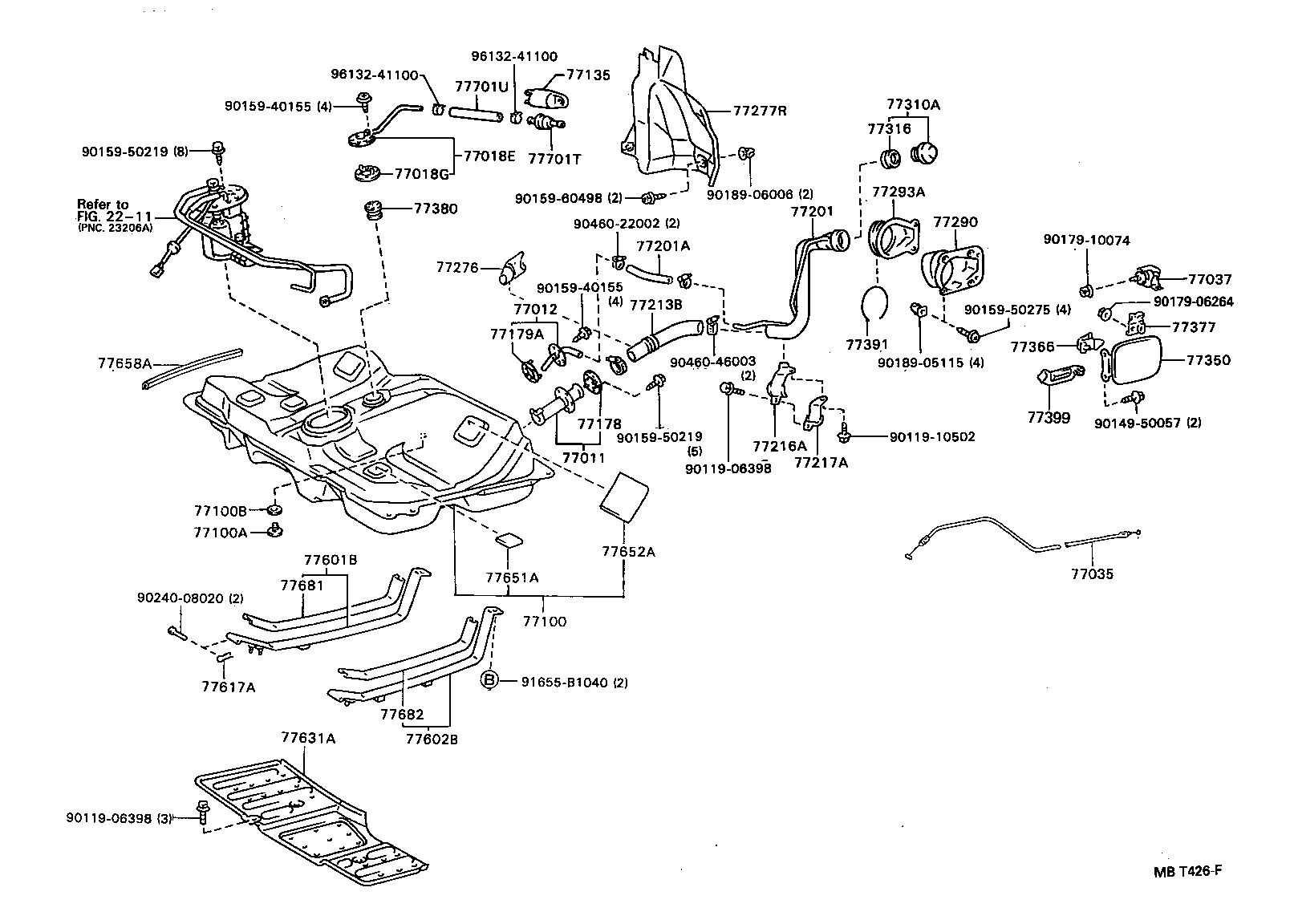

ILLUST NO. 1 OF 2(8910- )AT180,ST182,184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20080 |
AT180,ST182,184 |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-20090 |
AT180,ST182,184 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-20120 |
ST182,184 |
1 | ||
| 77018-20121 |
ST182,184 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
AT180,ST182,184 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20250 |
AT180,ST184..RHD..CP |
1 | ||
| 77035-20250 |
AT180,ST184,185..RHD |
1 | ||
| 77035-32150 |
AT180,ST184,185..RHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-20060 |
AT180,ST18# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29285 |
AT180,ST182,184 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AT180,ST182,184 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
AT180,ST182,184 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20450 |
ST184 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22033 |
AT180,ST182,184 L=175 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-20140 |
AT180,ST182,184 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-20130 |
AT180,ST182,184 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-20030 |
AT180,ST182,184 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-20020 |
AT180,ST182,184 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-20190 |
AT180,ST182,184 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20110 |
AT180,ST182,184..NOB |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20060 |
AT180,ST182,184..NOB |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AT180,ST18# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AT180,ST18# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20120 |
AT180,ST184..CP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12030 |
AT180,ST18# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
AT180,ST18# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
AT180,ST182,184 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AT180,ST18# |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-20010 |
AT180,ST18# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-20150 |
ST184 |
1 | ||
| 77601-20151 |
AT180,ST182,184 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-20181 |
AT180,ST182,184 |
1 | ||
| 77602-20180 |
ST184 |
1 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
AT180,ST182,184 TYPE A |
2 | ||
| 77617-12010 |
AT180,ST18# |
2 | ||
| 90468-14004 |
AT180,ST182,184 TYPE B |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-32030 |
AT180,ST182,184 |
6 | ||
| 77651-20090 |
AT180,ST182,184 |
4 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20110 |
AT180,ST182,184 |
4 | ||
| 77652-20110 |
AT180,ST182,184 |
2 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-20020 |
AT180,ST182,184 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-20030 |
AT180,ST182,184 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-20030 |
AT180,ST182,184 |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-10502 | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-50275 | ||||
| 90159-60498 | ||||
| 90179-06264 | ||||
| 90179-10074 | ||||
| 90189-05115 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 91655-B1040 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||

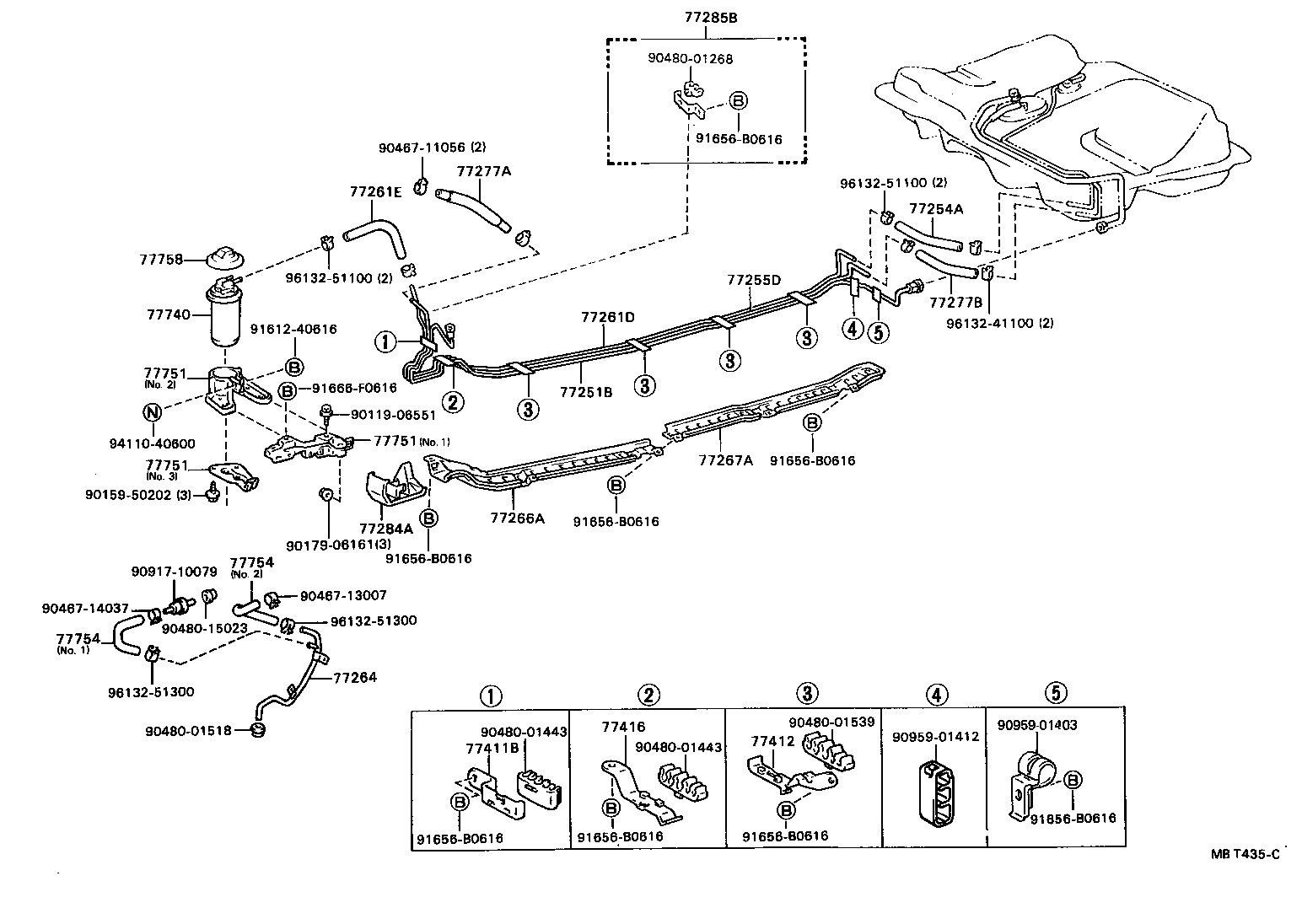

ILLUST NO. 2 OF 2(8910- )ST184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20580 |
AT180,ST184..RHD |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
ST182,184 *H,L=200 |
1 | ||
| 95333-06020 |
ST182,184 *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20450 |
AT180,ST184..RHD |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20290 |
ST184 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-20090 |
ST18# L=200 |
1 | ||
| 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER | ||||
| 77264-20080 |
ST18# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20110 |
AT180,ST182,184 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20070 |
AT180,ST182,184 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
ST184 L=320 |
1 | ||
| 90447-12141 |
ST184 L=320 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 77259-20110 |
AT180,ST182,184 L=160 |
1 | ||
| 77259-20130 |
AT180,ST182,184 L=150 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-20020 |
AT180,ST18# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20060 |
AT180,ST184,185..RHD |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20030 |
AT180,ST18# |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-20020 |
AT180,ST182,184 |
4 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-20010 |
AT180,ST182,184 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-20270 |
ST18# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20260 |
ST18# NO.2 |
1 | ||
| 77751-20240 |
ST18# NO.1 |
1 | ||
| 77751-20270 |
ST18# NO.3 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20260 |
ST18# NO.2 |
1 | ||
| 77751-20240 |
ST18# NO.1 |
1 | ||
| 77751-20270 |
ST18# NO.3 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20260 |
ST18# NO.2 |
1 | ||
| 77751-20240 |
ST18# NO.1 |
1 | ||
| 77751-20270 |
ST18# NO.3 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20110 |
ST18# NO.2 |
1 | ||
| 77754-20120 |
ST18# NO.1 |
1 | ||
| 77754-20110 |
ST184,185 NO.2 |
1 | ||
| 77754-20120 |
ST184,185 NO.1 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20110 |
ST18# NO.2 |
1 | ||
| 77754-20120 |
ST18# NO.1 |
1 | ||
| 77754-20110 |
ST184,185 NO.2 |
1 | ||
| 77754-20120 |
ST184,185 NO.1 |
1 | ||
| 77758 - CAP, CHARCOAL CANISTER | ||||
| 77758-20020 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06551 | ||||
| 90159-50202 | ||||
| 90179-06161 | ||||
| 90467-11056 | ||||
| 90467-13007 | ||||
| 90467-14037 | ||||
| 90480-01268 | ||||
| 90480-01443 | ||||
| 90480-01518 | ||||
| 90480-01539 | ||||
| 90480-15023 | ||||
| 90917-10079 | ||||
| 90959-01403 | ||||
| 90959-01412 | ||||
| 91612-40616 | ||||
| 91656-B0616 | ||||
| 91666-F0616 | ||||
| 94110-40600 | ||||
| 96132-41100 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
