ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910-9108)

Click highlighted areas on diagram

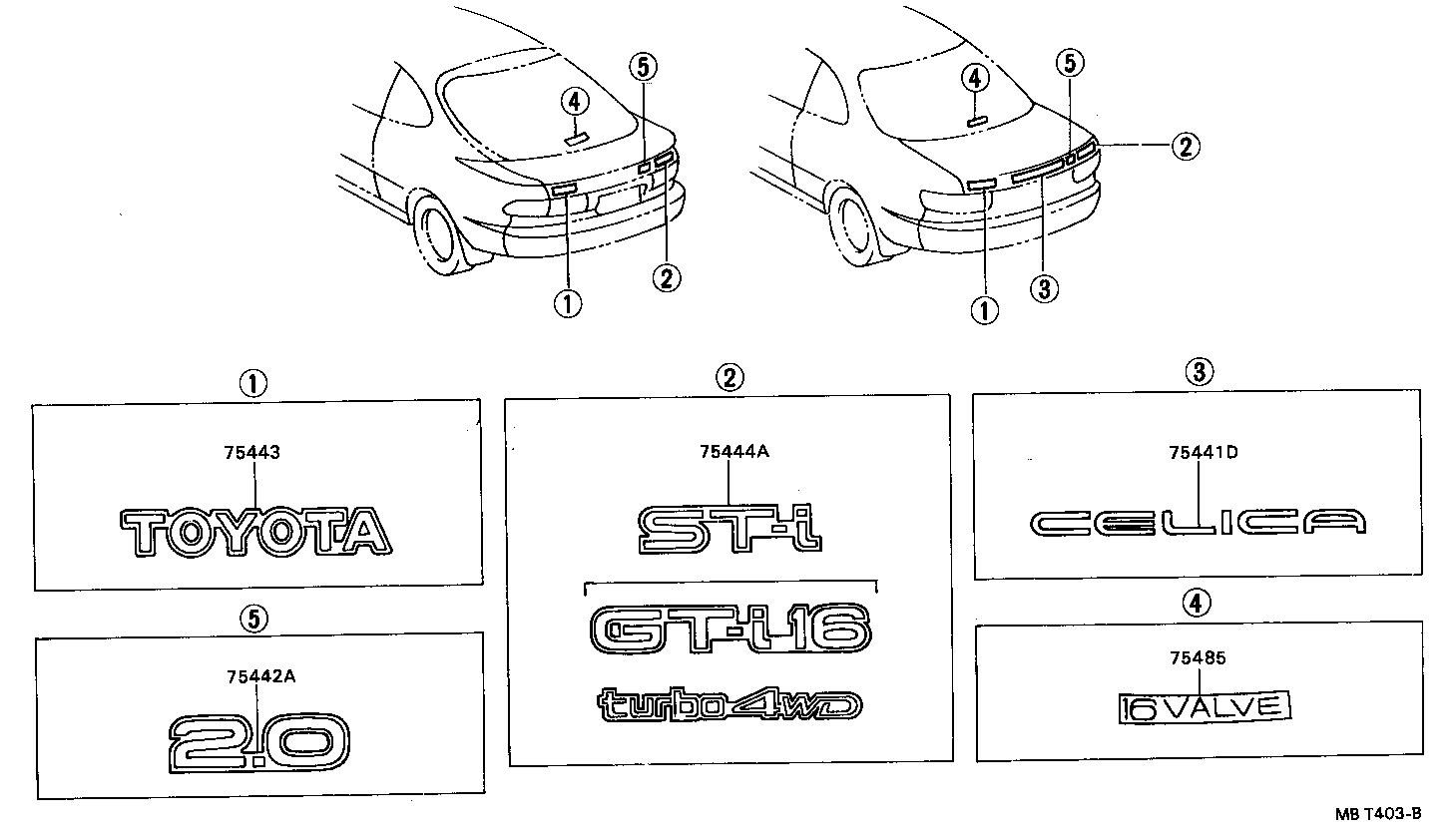

diagram 75441D 75442A 75443 75444A 75485
Part # Description Qty Price
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-2028003

AT180,ST184..CP

CELICA,DARK GRAY,040 ,3E5

 1
75441-2028013

AT180,ST184..CP

CELICA,SILVER,182 ,202 ,3H4 ,8G7

 1
75441-2028003

AT180,ST184..CP

CELICA,DARK GRAY,040 ,181 ,3E5

 1
75441-20290

AT180,ST18#

CELICA

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-20460

AT180,ST18#

TOYOTA

 1
75443-20490

AT180,ST18#

TOYOTA

 1
75485 - PLATE, BACK WINDOW NAME
75485-20480

AT180,ST182,184

16 VALVE

 1

(9108- )

Click highlighted areas on diagram

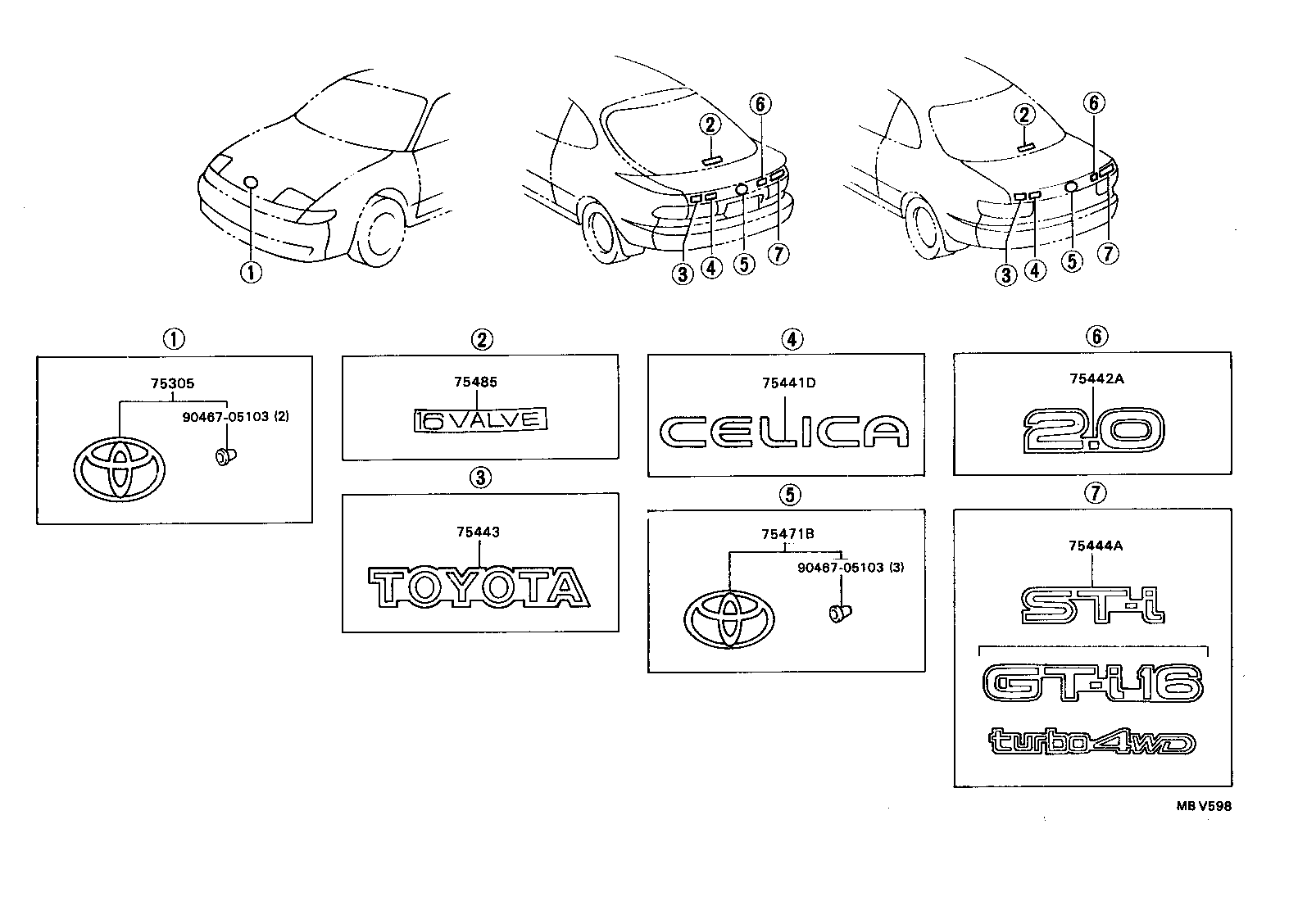

diagram 75305 75441D 75442A 75443 75444A 75471B 75485 9046705103 9046705103
Part # Description Qty Price
75305 - EMBLEM, HOOD
75331-20030

AT180,ST18#

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-2028003

AT180,ST184..CP

CELICA,DARK GRAY,040 ,3E5

 1
75441-2028013

AT180,ST184..CP

CELICA,SILVER,182 ,202 ,3H4 ,8G7

 1
75441-2028003

AT180,ST184..CP

CELICA,DARK GRAY,040 ,181 ,3E5

 1
75441-20290

AT180,ST18#

CELICA

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-20460

AT180,ST18#

TOYOTA

 1
75443-20490

AT180,ST18#

TOYOTA

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-20030

ST184..CP

 1
75485 - PLATE, BACK WINDOW NAME
75485-20480

AT180,ST182,184

16 VALVE

 1
Common parts
90467-05103
