ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )ST184,185

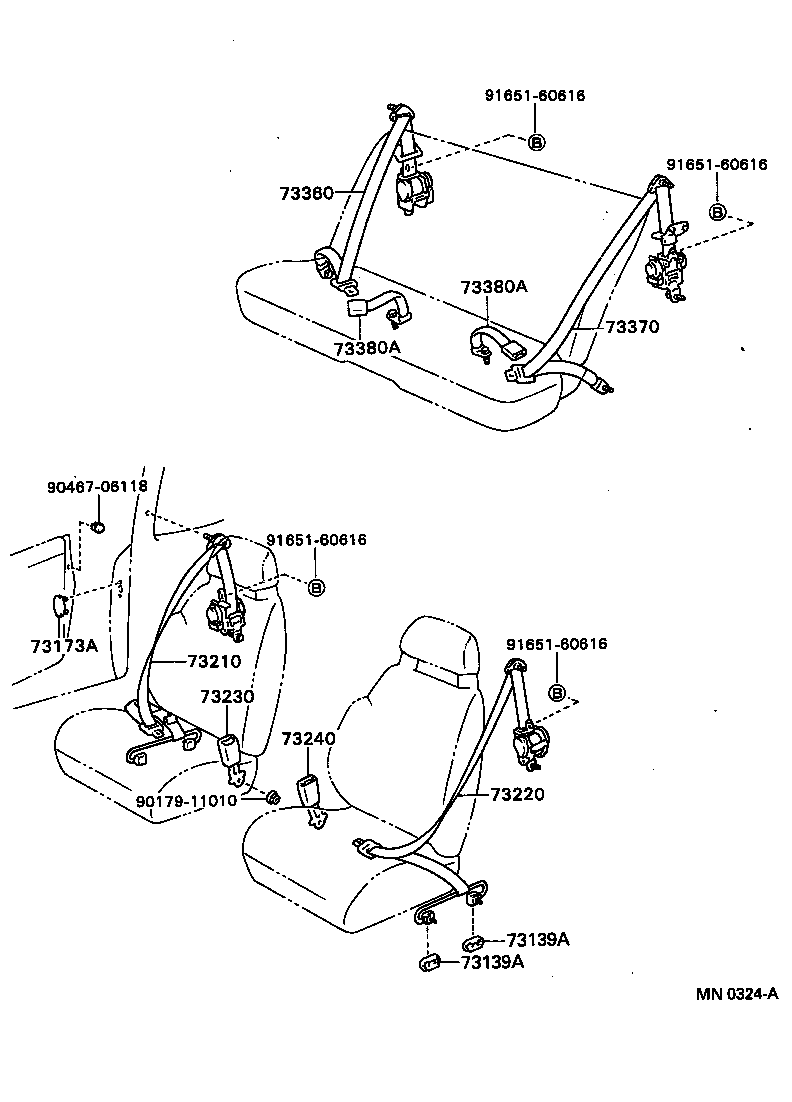

Click highlighted areas on diagram

diagram 73139A 73139A 73173A 73210 73220 73230 73240 73360 73370 73380A 73380A 9017911010 9046706118 9165160616 9165160616 9165160616 9165160616
Part # Description Qty Price
73139A - COVER, SEAT BELT ANCHOR
73139-20010B0

ST18#

SHADOW GRAY,TRIM1#

 4
73139A - COVER, SEAT BELT ANCHOR
73139-20010B0

ST18#

SHADOW GRAY,TRIM1#

 4
73173A - COVER, FRONT SEAT BELT HOLE
73173-14010

ST184,185

 2
73173-14010

ST18#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2051003

ST18#

SHADOW GRAY,TRIM1#

 1
73210-2051004

ST184

DARK BLUE,TRIM8#

 1
73210-2051003

ST184,185

SHADOW GRAY,TRIM1#

 1
73210-20511B0

ST18#

SHADOW GRAY,TRIM1#

 1
73210-2051004

ST182,184

DARK BLUE,TRIM8#

 1
73210-20512B0

ST18#

SHADOW GRAY,TRIM1#

 1
73210-20513B0

ST18#

SHADOW GRAY,TRIM1#

 1
73210-20511J0

ST182,184

DARK BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-2038003

ST18#

SHADOW GRAY,TRIM1#

 1
73220-2038003

ST184,185

SHADOW GRAY,TRIM1#

 1
73220-2038004

ST182,184

DARK BLUE,TRIM8#

 1
73220-2038004

ST184

DARK BLUE,TRIM8#

 1
73220-20382B0

ST18#

SHADOW GRAY,TRIM1#

 1
73220-20383B0

ST18#

SHADOW GRAY,TRIM1#

 1
73220-20381B0

ST18#

SHADOW GRAY,TRIM1#

 1
73220-20381J0

ST182,184

DARK BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2051103

ST184,185

SHADOW GRAY,TRIM1#

 1
73230-2051104

ST184

DARK BLUE,TRIM8#

 1
73230-2051003

ST184,185

SHADOW GRAY,TRIM1#

 1
73230-20512P0

ST184,185

SHADOW GRAY,TRIM1#

 1
73230-2051004

ST184

DARK BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-2051003

ST184,185

SHADOW GRAY,TRIM1#

 1
73230-2051004

ST184

DARK BLUE,TRIM8#

 1
73230-20512P0

ST184,185

SHADOW GRAY,TRIM1#

 1
73230-2051104

ST184

DARK BLUE,TRIM8#

 1
73230-2051103

ST184,185

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20341J0

ST184..CP

DARK BLUE,TRIM8#

 1
73360-2034003

ST184..CP

SHADOW GRAY,TRIM1#

 1
73360-2034004

ST184..CP

DARK BLUE,TRIM8#

 1
73360-20341B0

ST184..CP

SHADOW GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-2021004

ST184..CP

DARK BLUE,TRIM8#

 1
73370-20211J0

ST184..CP

DARK BLUE,TRIM8#

 1
73370-2021003

ST184..CP

SHADOW GRAY,TRIM1#

 1
73370-20211B0

ST184..CP

SHADOW GRAY,TRIM1#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-2029004

ST184..CP

DARK BLUE,TRIM8#

 2
73380-2029004

ST184

DARK BLUE,TRIM8#

 2
73380-2029003

ST184

SHADOW GRAY,TRIM1#

 2
73380-2029003

ST184..CP

SHADOW GRAY,TRIM1#

 2
73380-2029103

ST184

SHADOW GRAY,TRIM1#

 2
73380-20292B0

ST184

SHADOW GRAY,TRIM1#

 2
73380-2029104

ST184

DARK BLUE,TRIM8#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-2029004

ST184..CP

DARK BLUE,TRIM8#

 2
73380-2029004

ST184

DARK BLUE,TRIM8#

 2
73380-2029003

ST184

SHADOW GRAY,TRIM1#

 2
73380-2029003

ST184..CP

SHADOW GRAY,TRIM1#

 2
73380-2029103

ST184

SHADOW GRAY,TRIM1#

 2
73380-20292B0

ST184

SHADOW GRAY,TRIM1#

 2
73380-2029104

ST184

DARK BLUE,TRIM8#

 2
Common parts
90179-11010
90467-06118
91651-60616
