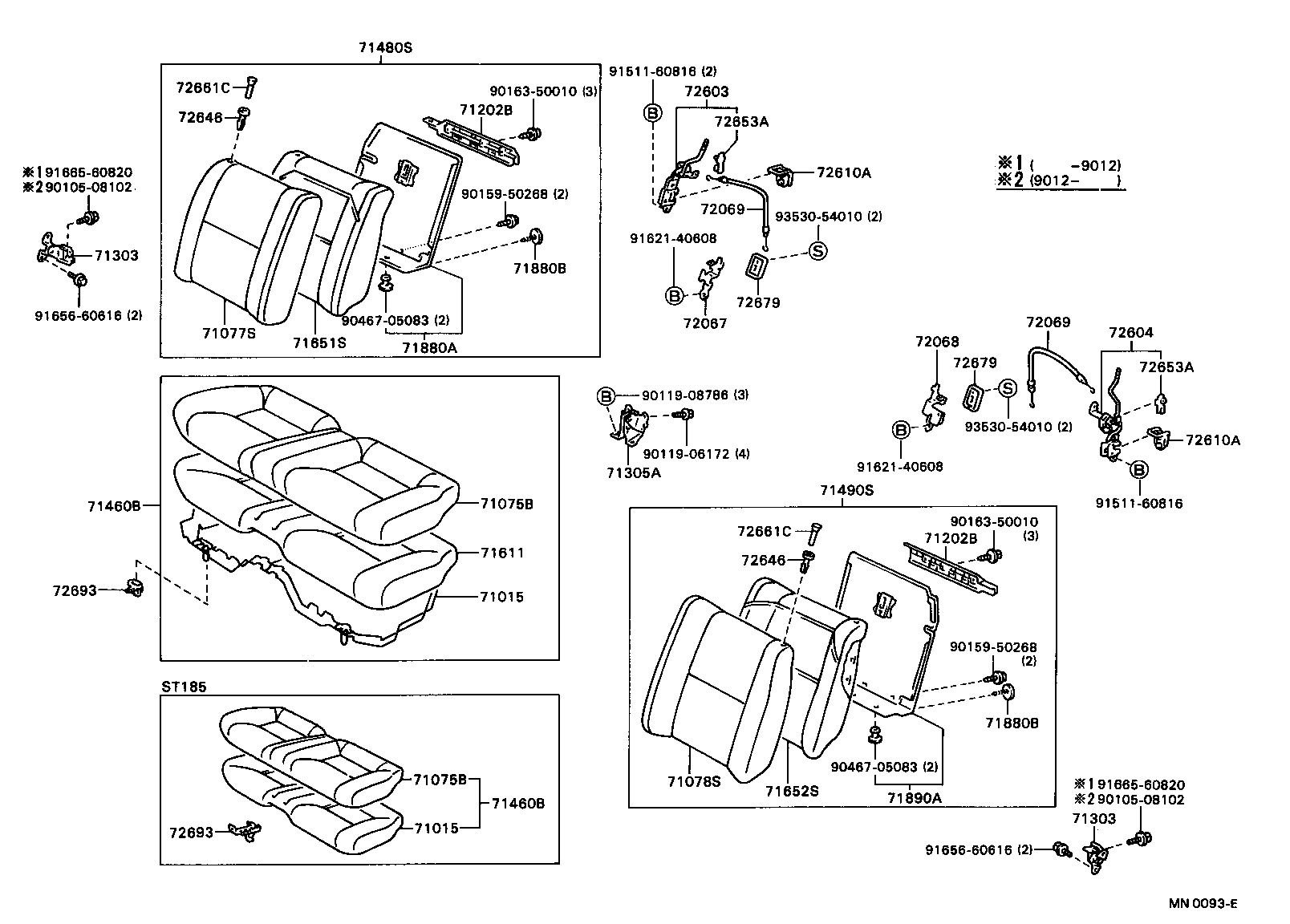

ST184R-BCPSKQ (1989)
Toyota Celica
(8910- )ST184 ; (8910- )AT180,ST182,185..LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20310 |
AT180,ST182,184 |
1 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20310 |
AT180,ST182,184 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-2B49004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71075-2B49103 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B49003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B492J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71075-2B492B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B49104 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-2B49004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71075-2B49103 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B49003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B492J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71075-2B492B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B49104 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2D53004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71077-2D53003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2D53104 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71077-2D53103 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2D532B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2D532J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2073004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71078-20732J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71078-2073003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2073104 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71078-2073103 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71078-20732B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71202B - PANEL, REAR SEAT BACK | ||||
| 71203-20020 |
AT180,ST18# LH |
1 | ||
| 71202-20010 |
AT180,ST18# RH |
1 | ||
| 71202B - PANEL, REAR SEAT BACK | ||||
| 71203-20020 |
AT180,ST18# LH |
1 | ||
| 71202-20010 |
AT180,ST18# RH |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-20080 |
ST184;AT180,ST182,185..LB |
2 | ||
| 71303-20080 |
AT180,ST18# |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-20080 |
ST184;AT180,ST182,185..LB |
2 | ||
| 71303-20080 |
AT180,ST18# |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20120 |
AT180,ST18# |
1 | ||
| 71305-20120 |
ST184;AT180,ST182,185..LB |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-2B44003 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-2B44104 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B44004 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B442J0 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B442B0 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-2B44103 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-2B44003 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-2B44104 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B44004 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B442J0 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B442B0 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-2B44103 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2D53004 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2D53003 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2D53104 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2D53103 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2D532B0 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2D532J0 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2049003 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2049004 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71490-2049103 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2049104 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71490-20492J0 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71490-20492B0 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20500 |
AT180,ST182,184 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71507-20190 |
AT180,ST18# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71508-20030 |
AT180,ST18# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-20120C0 |
ST184..CP BLACK,TRIM1# |
1 | ||
| 71880-20120C0 |
ST184..CP BLACK,TRIM1#,8# |
1 | ||
| 71880-2012003 |
AT180,ST184..RHD..CP GRAY,TRIM1#,8# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-2006003 |
AT180,ST184..CP GRAY,TRIM1#,8# |
1 | ||
| 71890-20060C0 |
ST184..CP BLACK,TRIM1# |
1 | ||
| 71890-20060C0 |
ST184..CP BLACK,TRIM1#,8# |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20040 |
AT180,ST18# |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20040 |
AT180,ST18# |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20060 |
AT180,ST18# |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20060 |
AT180,ST18# |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20050 |
AT180,ST18# |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20050 |
AT180,ST18# |
1 | ||
| 72610A - STRIKER ASSY, REAR SEAT BACK LOCK | ||||
| 72610-20020 |
AT180,ST18# |
2 | ||
| 72610A - STRIKER ASSY, REAR SEAT BACK LOCK | ||||
| 72610-20020 |
AT180,ST18# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2002003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72646-2002014 |
AT180,ST182,184..NOB DARK BLUE,TRIM8# |
1 | ||
| 72646-2002014 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72646-2002003 |
ST185;AT180,ST182,184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2002003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72646-2002014 |
AT180,ST182,184..NOB DARK BLUE,TRIM8# |
1 | ||
| 72646-2002014 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72646-2002003 |
ST185;AT180,ST182,184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
AT180,ST18# LH |
1 | ||
| 69759-24010 |
AT180,ST18# RH |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
AT180,ST18# LH |
1 | ||
| 69759-24010 |
AT180,ST18# RH |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72658-2301023 |
AT180,ST18# GRAY,TRIM1# |
2 | ||
| 72656-2001023 |
AT180,ST18# GRAY,TRIM1# |
2 | ||
| 72661-1201003 |
AT180,ST18# GRAY,TRIM1# |
2 | ||
| 72658-23010J0 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72661-1201024 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72656-2001059 |
ST184..CP;AT180,ST182 DARK BLUE |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72658-2301023 |
AT180,ST18# GRAY,TRIM1# |
2 | ||
| 72656-2001023 |
AT180,ST18# GRAY,TRIM1# |
2 | ||
| 72661-1201003 |
AT180,ST18# GRAY,TRIM1# |
2 | ||
| 72658-23010J0 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72661-1201024 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72656-2001059 |
ST184..CP;AT180,ST182 DARK BLUE |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601033 |
AT180,ST184..CP LIGHT GRAY,TRIM1#,8# |
2 | ||
| 72679-16010C0 |
ST184,185 BLACK,TRIM1# |
2 | ||
| 72679-16010C0 |
AT180,ST182,184 BLACK,TRIM1#,8# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601033 |
AT180,ST184..CP LIGHT GRAY,TRIM1#,8# |
2 | ||
| 72679-16010C0 |
ST184,185 BLACK,TRIM1# |
2 | ||
| 72679-16010C0 |
AT180,ST182,184 BLACK,TRIM1#,8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20030 |
AT180,ST182,184 |
2 | ||
| 72693-20031 |
AT180,ST182,184 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20030 |
AT180,ST182,184 |
2 | ||
| 72693-20031 |
AT180,ST182,184 |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06172 | ||||
| 90119-08786 | ||||
| 90159-50268 | ||||
| 90163-50010 | ||||
| 90467-05083 | ||||
| 91511-60816 | ||||
| 91621-40608 | ||||
| 91656-60616 | ||||
| 91665-60820 | ||||
| 93530-54010 | ||||

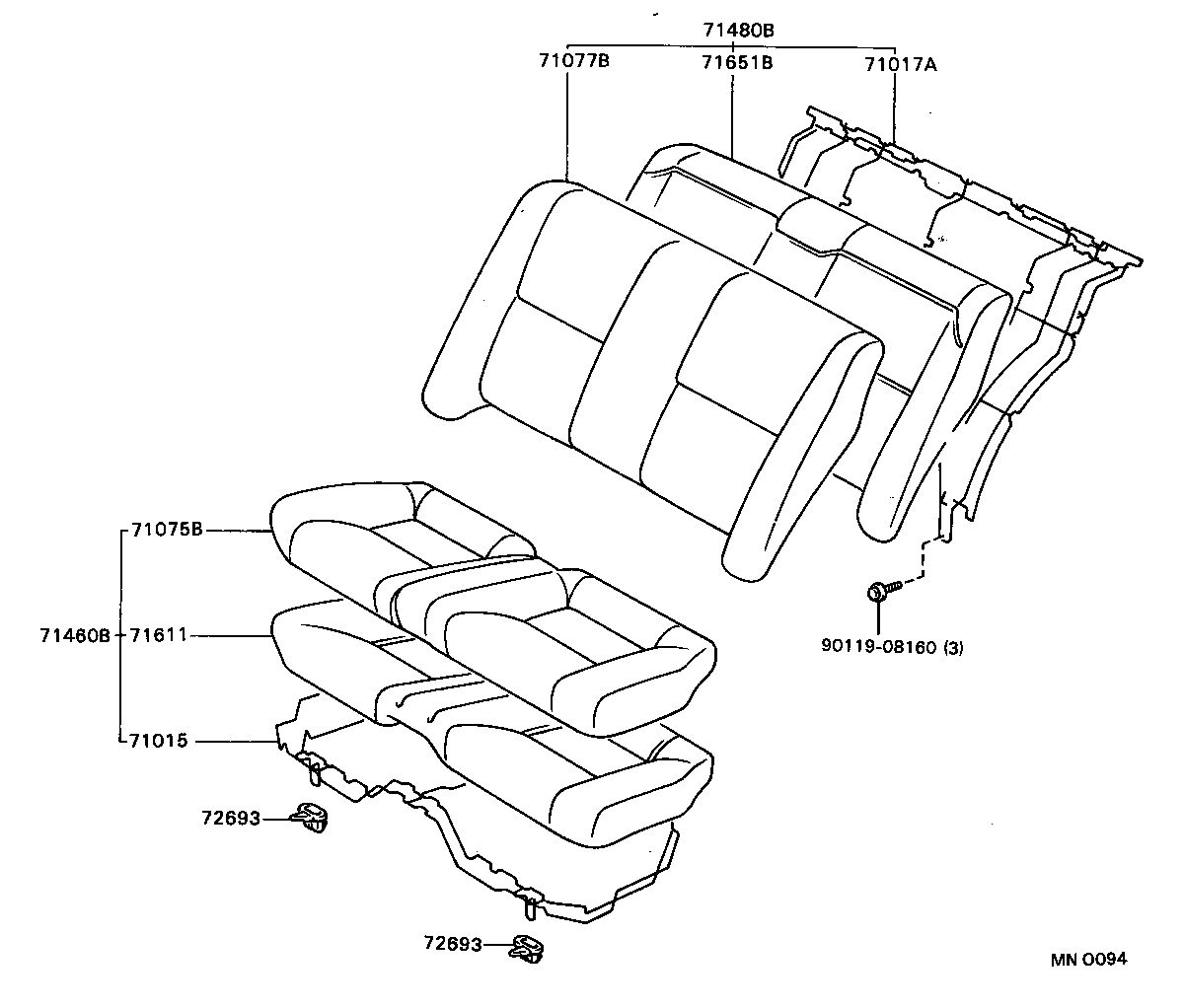

(8910- )CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20310 |
AT180,ST182,184 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-2B49004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71075-2B49103 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B49003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B492J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71075-2B492B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2B49104 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-2B44003 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-2B44104 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B44004 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B442J0 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-2B442B0 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-2B44103 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20500 |
AT180,ST182,184 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20030 |
AT180,ST182,184 |
2 | ||
| 72693-20031 |
AT180,ST182,184 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20030 |
AT180,ST182,184 |
2 | ||
| 72693-20031 |
AT180,ST182,184 |
2 | ||
| Common parts | ||||
| 90119-08160 | ||||
