ST184R-BCPSKQ (1989)
Toyota Celica

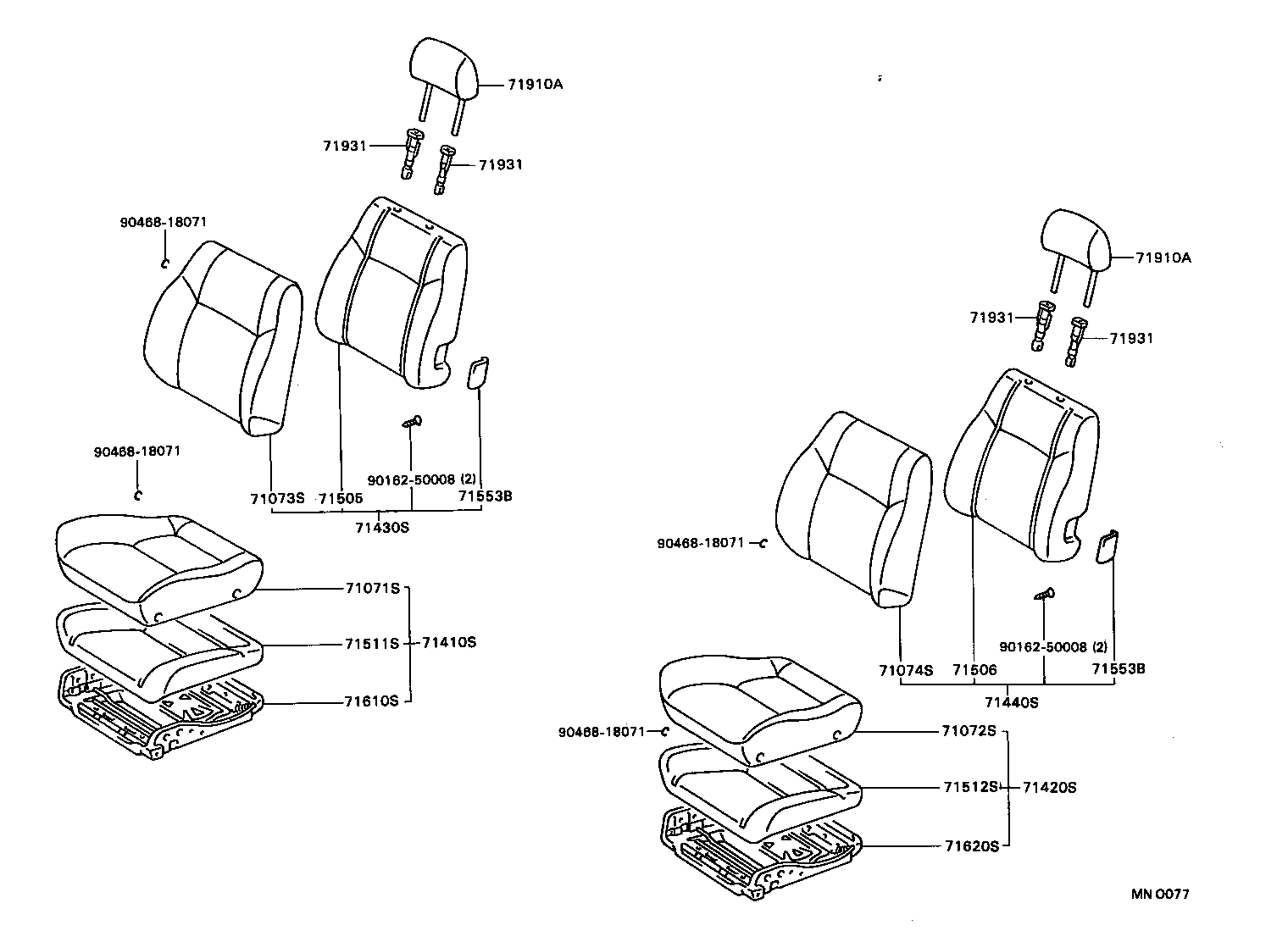

ILLUST NO. 1 OF 2(8910- )AT180 ; (8910- )ST184..CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D52003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D52004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71071-2D52104 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71072-2D172J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71071-2D52103 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D172B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D08004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71072-2D08003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D602J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71072-2D08103 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D08104 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71071-2D602B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D50003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D50203 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D50204 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71073-2D50004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71073-2D680J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71073-2D680B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D20004 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71073-2D503J0 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71074-2D20203 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D20204 |
ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 71073-2D503B0 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D20003 |
ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2G26003 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G26004 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-2G26103 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G26104 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-2D392J0 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-2D392B0 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2D33003 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2D33004 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-2D852B0 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2D852J0 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-2D33104 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-2D33103 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2D78003 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2D78004 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-2G390J0 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-2D78103 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2D78104 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-2G390B0 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2D78003 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2D78004 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-2D78103 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2D78104 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-2D782J0 |
ST184..NOB ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-2D782B0 |
ST184..NOB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20130 |
AT180,ST184..NOB |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-20130 |
AT180,ST184..NOB |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20580 |
AT180,ST184..NOB |
1 | ||
| 71511-20581 |
AT180,ST184..NOB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20580 |
AT180,ST184..NOB |
1 | ||
| 71511-20581 |
AT180,ST184..NOB |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20190 |
AT180,ST184..NOB |
4 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20190 |
AT180,ST184..NOB |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20460 |
AT180,ST184,185..RHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20470 |
AT180,ST184,185 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B32104 |
ST184..NOB DARK BLUE,TRIM8# |
2 | ||
| 71910-2B32003 |
ST184..NOB SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32004 |
ST184..NOB DARK BLUE,TRIM8# |
2 | ||
| 71910-2B32103 |
ST184..NOB SHADOW GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B32104 |
ST184..NOB DARK BLUE,TRIM8# |
2 | ||
| 71910-2B32003 |
ST184..NOB SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32004 |
ST184..NOB DARK BLUE,TRIM8# |
2 | ||
| 71910-2B32103 |
ST184..NOB SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2204014 |
AT180,ST184..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-2201014 |
AT180,ST184..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2204014 |
AT180,ST184..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-2201014 |
AT180,ST184..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2204014 |
AT180,ST184..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-2201014 |
AT180,ST184..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2204014 |
AT180,ST184..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-2201014 |
AT180,ST184..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90162-50008 | ||||
| 90468-18071 | ||||

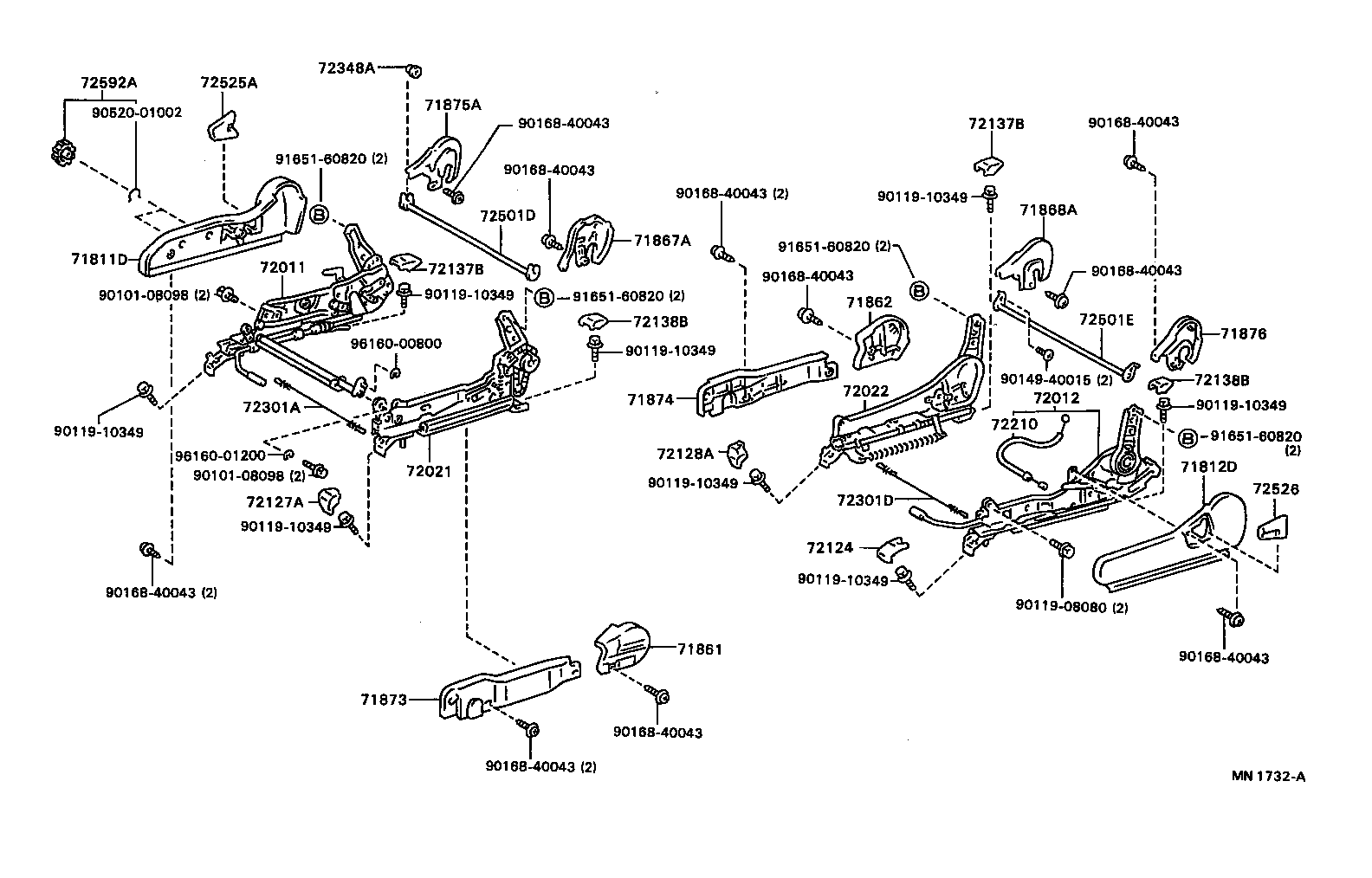

ILLUST NO. 2 OF 2(8910- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2021003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-2021004 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2016004 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 71812-2016003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2010003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 71861-2010004 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2009003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-2009004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-2002003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 71867-2002004 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-2001004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 71868-2001003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-20030 |
AT180,ST18# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-20030 |
AT180,ST18# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-2003003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 71875-2003004 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-2002003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71876-2002004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20100 |
AT180,ST184,185..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20150 |
AT180,ST184,185..RHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20070 |
AT180,ST184..RHD..NOB |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20100 |
AT180,ST184..RHD |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-2012004 |
AT180,ST184,185..RHD DARK BLUE,TRIM8# |
1 | ||
| 72123-2012003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2004004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 72127-2004003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-2003003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72128-2003004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2005004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2005004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-2005004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-2005004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
2 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-20060 |
AT180,ST184,185..RHD |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20270 |
AT180,ST182,184 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-20270 |
AT180,ST18# |
1 | ||
| 72348A - HOOK, RECLINING CONECTING, NO.2, RH | ||||
| 72348-20010 |
AT180,ST184,185..RHD |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-20020 |
AT180,ST184,185..RHD |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-20030 |
AT180,ST18# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2012004 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 72525-2012003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-2009003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2009004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-2004004 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
2 | ||
| 72592-2004003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 91651-60820 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
