ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )CP

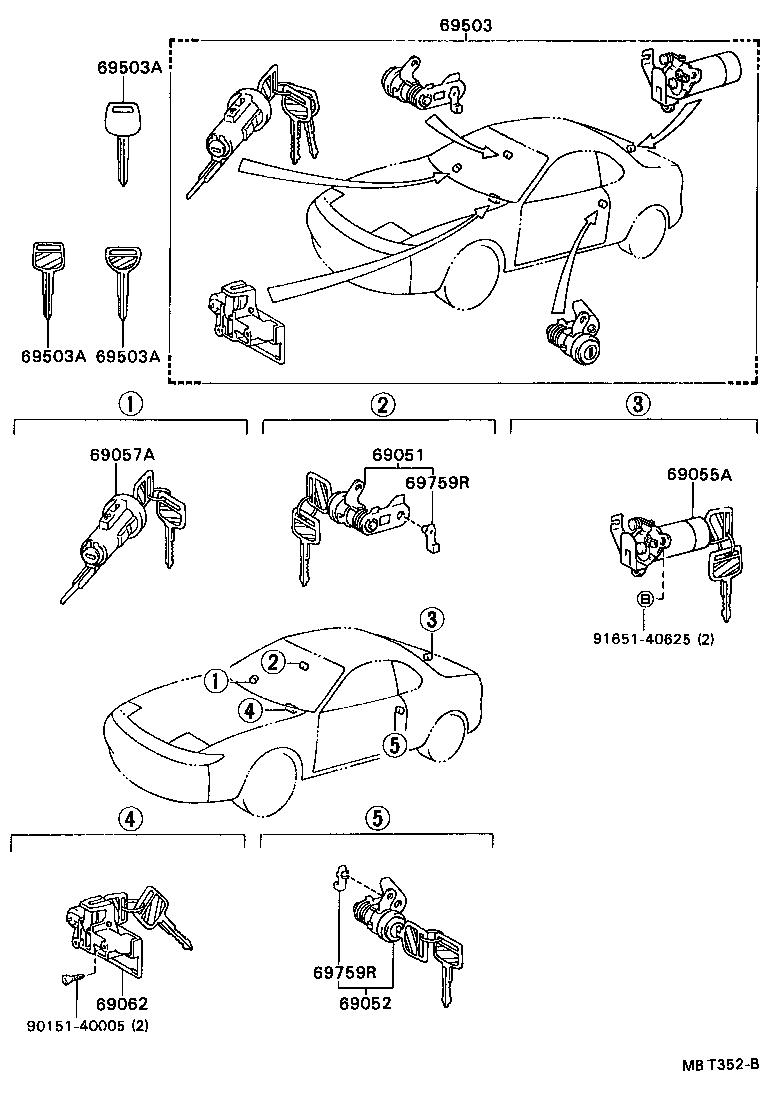

Click highlighted areas on diagram

diagram 69051 69052 69055A 69057A 69062 69503 69503A 69503A 69503A 69759R 69759R 9015140005 9165140625
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-20260

AT180,ST184..CP

 1
69051-20280

ST184..CP

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-20260

AT180,ST184..CP

 1
69052-20280

ST184..CP

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-20430

AT180,ST184..CP

 1
69055-20450

ST184..CP

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-20250

AT180,ST184..CP

 1
69057-20270

ST184..CP

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-20190

AT180,ST184..CP

 1
69056-20210

ST184..CP

 1
69503 - CYLINDER SET, LOCK
69005-2B050

ST184..CP

 1
69005-2B030

AT180,ST184..CP

 1
69503A - KEY, BLANK
90999-00163

AT180,ST184..CP

MASTER KEY

 1
90999-00165

AT180,ST184..CP

SUB KEY

 1
90999-00164

AT180,ST184..CP

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00163

AT180,ST184..CP

MASTER KEY

 1
90999-00165

AT180,ST184..CP

SUB KEY

 1
90999-00164

AT180,ST184..CP

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00163

AT180,ST184..CP

MASTER KEY

 1
90999-00165

AT180,ST184..CP

SUB KEY

 1
90999-00164

AT180,ST184..CP

MASTER KEY,W(*68)

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080

AT180,ST184..CP

ORANGE

 1
69759-22080

AT180,ST18#

ORANGE

 1
69759-22090

AT180,ST184..CP

PINK

 1
69759-22090

AT180,ST18#

PINK

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080

AT180,ST184..CP

ORANGE

 1
69759-22080

AT180,ST18#

ORANGE

 1
69759-22090

AT180,ST184..CP

PINK

 1
69759-22090

AT180,ST18#

PINK

 1
Common parts
90151-40005
91651-40625
