ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

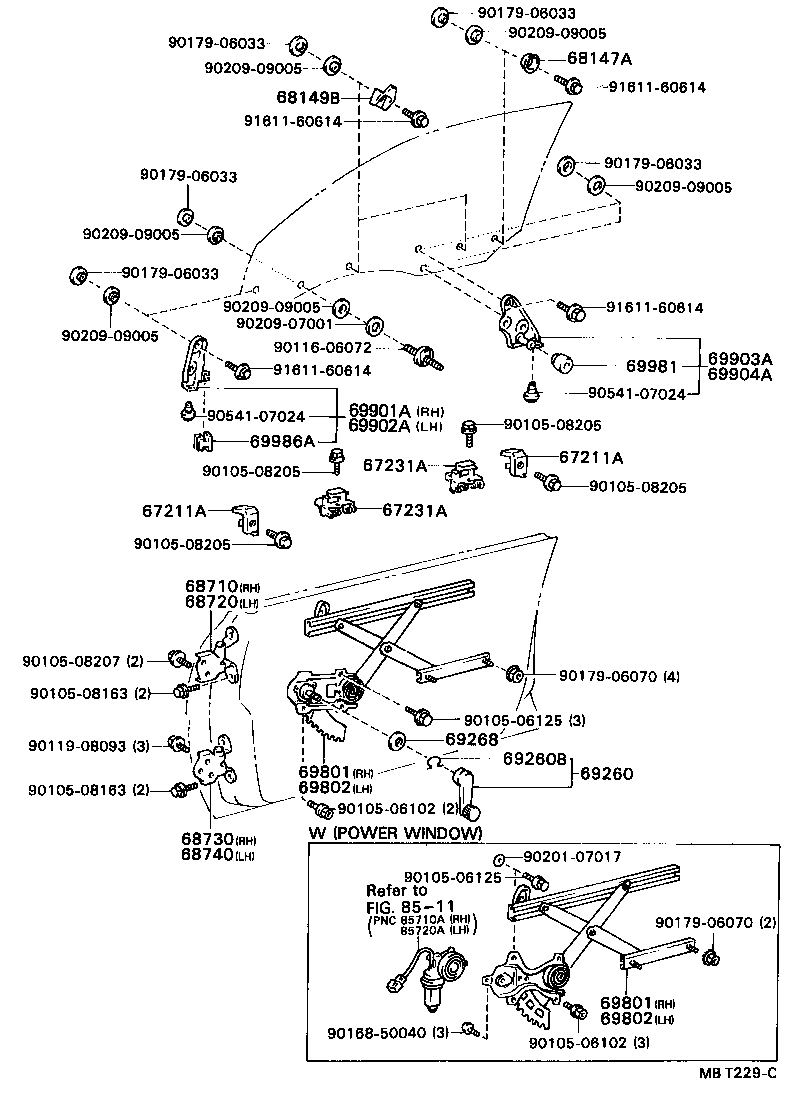

Click highlighted areas on diagram

diagram 67211A 67211A 67231A 67231A 68147A 68149B 68710 68720 68730 68740 69260 69260B 69268 69801 69801 69802 69802 69901A 69902A 69903A 69904A 69981 69986A 8511 9010506102 9010506102 9010506125 9010506125 9010508163 9010508163 9010508205 9010508205 9010508205 9010508205 9010508207 9011606072 9011908093 9016850040 9017906033 9017906033 9017906033 9017906033 9017906033 9017906070 9017906070 9020107017 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9054107024 9054107024 9161160614 9161160614 9161160614 9161160614
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-20050

AT180,ST18#

STAMPED NO.1

 4
67211-20030

AT180,ST18#

STAMPED NO.2

 4
67211-20120

AT180,ST18#

STAMPED N0.3

 4
67211-20120

AT180,ST18#

STAMPED NO.1

 4
67211-20060

AT180,ST18#

STAMPED NO.3

 4
67211-20120

AT180,ST18#

STAMPED NO.3

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-20050

AT180,ST18#

STAMPED NO.1

 4
67211-20030

AT180,ST18#

STAMPED NO.2

 4
67211-20120

AT180,ST18#

STAMPED N0.3

 4
67211-20120

AT180,ST18#

STAMPED NO.1

 4
67211-20060

AT180,ST18#

STAMPED NO.3

 4
67211-20120

AT180,ST18#

STAMPED NO.3

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-20061

AT180,ST18#

STAMPED N0.2

 4
67231-20071

AT180,ST18#

STAMPED NO.3

 4
67231-20061

AT180,ST18#

STAMPED NO.2

 4
67231-20060

AT180,ST18#

STAMPED NO.2

 4
67231-20051

AT180,ST18#

STAMPED NO.1

 4
67231-20050

AT180,ST18#

STAMPED NO.1

 4
67231-20071

AT180,ST18#

STAMPED N0.3

 4
67231-20051

AT180,ST18#

STAMPED N0.1

 4
67231-20070

AT180,ST18#

STAMPED NO.3

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-20061

AT180,ST18#

STAMPED N0.2

 4
67231-20071

AT180,ST18#

STAMPED NO.3

 4
67231-20061

AT180,ST18#

STAMPED NO.2

 4
67231-20060

AT180,ST18#

STAMPED NO.2

 4
67231-20051

AT180,ST18#

STAMPED NO.1

 4
67231-20050

AT180,ST18#

STAMPED NO.1

 4
67231-20071

AT180,ST18#

STAMPED N0.3

 4
67231-20051

AT180,ST18#

STAMPED N0.1

 4
67231-20070

AT180,ST18#

STAMPED NO.3

 4
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-14020

AT180,ST18#

 2
68149B - STABILIZER, FRONT DOOR GLASS MALE
68149-20030

AT180,ST18#

 4
68149-20010

AT180,ST18#

 4
68149-20020

AT180,ST18#

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20100

AT180,ST18#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20090

AT180,ST18#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20120

AT180,ST18#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20120

AT180,ST18#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2203013

AT180,ST182,184

SHADOW GRAY,TRIM1#

 2
69260-2203014

AT180,ST182,184

DARK BLUE,TRIM8#

 2
69260-22030P0

AT180,ST182,184

SHADOW GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AT180,ST182,184

 2
69268 - PLATE, WINDOW REGULATOR HANDLE
69268-20020

AT180,ST182,184

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-20220

AT180,ST182,184

 1
69801-20170

AT180,ST182,184

W(POWER WINDOW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-20220

AT180,ST182,184

 1
69801-20170

AT180,ST182,184

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-20240

AT180,ST182,184

 1
69802-20190

AT180,ST182,184

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-20240

AT180,ST182,184

 1
69802-20190

AT180,ST182,184

W(POWER WINDOW)

 1
69901A - BRACKET SUB-ASSY, FRONT DOOR GLASS, RH
69901-20160

AT180,ST18#

 1
69902A - BRACKET SUB-ASSY, FRONT DOOR GLASS, LH
69902-20080

AT180,ST18#

 1
69903A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH
69903-20090

AT180,ST18#

 1
69904A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH
69904-20070

AT180,ST18#

 1
69981 - ROLLER, FRONT DOOR GLASS GUIDE
69981-14020

AT180,ST18#

 2
69986A - PIECE, FRONT DOOR GLASS GUIDE
69986-20020

AT180,ST18#

 2
Common parts
90105-06102
90105-06125
90105-08163
90105-08205
90105-08207
90116-06072
90119-08093
90168-50040
90179-06033
90179-06070
90201-07017
90209-07001
90209-09005
90541-07024
91611-60614
Linked diagrams
8511
