ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

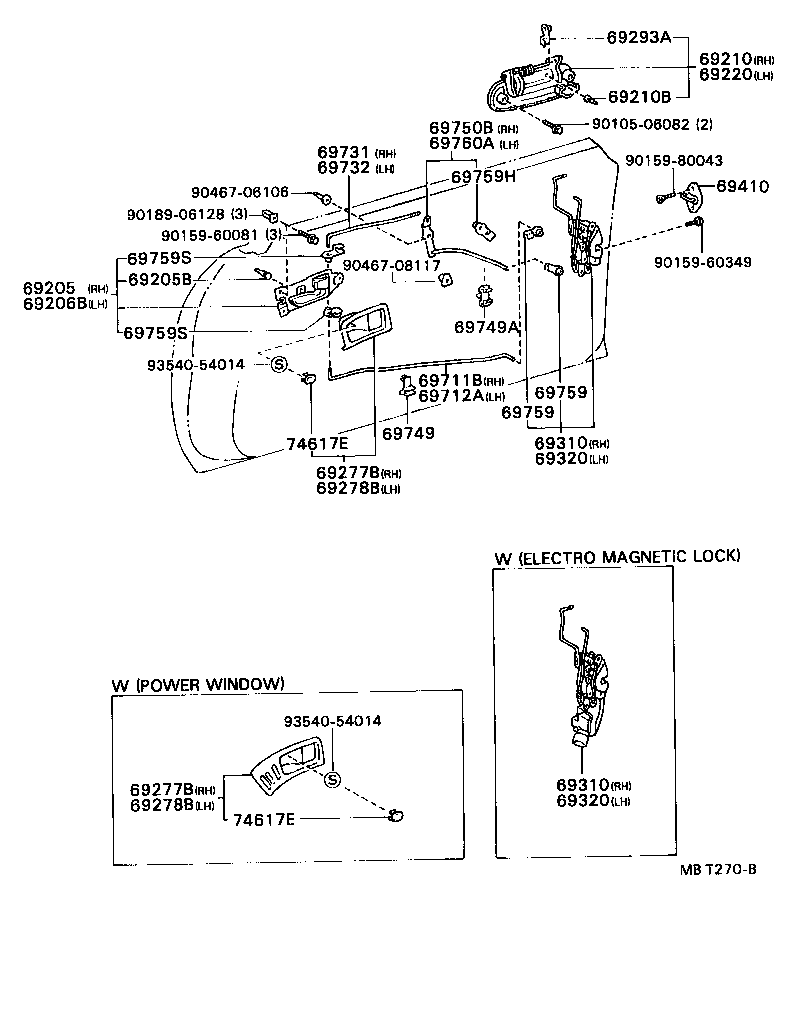

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69210B 69220 69277B 69277B 69278B 69278B 69293A 69310 69310 69320 69320 69410 69711B 69712A 69731 69732 69749 69749A 69750B 69759 69759 69759H 69759S 69759S 69760A 74617E 74617E 9010506082 9015960081 9015960349 9015980043 9018906128 9046706106 9046708117 9354054014 9354054014
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20090

AT180,ST18#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

AT180,ST18#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20060

AT180,ST18#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-2021024

ST182,184..NOB

W(SIDE PROTECTION MOULDING),BLUE MICA M.,8G7

 1
69210-2021001

ST182,184..NOB

W(SIDE PROTECTION MOULDING),BLACK,202

 1
69210-2021012

ST182,184..NOB

W(SIDE PROTECTION MOULDING),RED MICA,3H4

 1
69210-2021008

ST182,184..NOB

W(SIDE PROTECTION MOULDING),SUPER WHITE 2,040

 1
69210-2021003

ST182,184..NOB

W(SIDE PROTECTION MOULDING),BLUISH SILVER M.,181

 1
69210-20210D0

ST182,184..NOB

W(SIDE PROTECTION MOULDING),WINE RED M,3J8

 1
69210-20240

AT180,ST182,184..NOB

 1
69210-20210H0

ST182,184..NOB

W(SIDE PROTECTION MOULDING),MEDIUM TURQUOISE M.,749

 1
69210-2021002

ST182,184..NOB

W(SIDE PROTECTION MOULDING),SUPER RED 2,3E5

 1
69210-20210J0

ST182,184..NOB

W(SIDE PROTECTION MOULDING),DARK BLUE M.M,8J1

 1
69210-2021013

ST182,184..NOB

W(SIDE PROTECTION MOULDING),BLUISH GRAY M.,182

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018

AT180,ST18#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-2021012

ST182,184..NOB

W(SIDE PROTECTION MOULDING),RED MICA,3H4

 1
69220-2021024

ST182,184..NOB

W(SIDE PROTECTION MOULDING),BLUE MACA M.,8G7

 1
69220-2021002

ST182,184..NOB

W(SIDE PROTECTION MOULDING),SUPER RED 2,3E5

 1
69220-2021013

ST182,184..NOB

W(SIDE PROTECTION MOULDING),BLUISH GRAY M.,182

 1
69220-2021001

ST182,184..NOB

W(SIDE PROTECTION MOULDING),BLACK,202

 1
69220-2021008

ST182,184..NOB

W(SIDE PROTECTION MOULDING),SUPER WHITE 2,040

 1
69220-20210J0

ST182,184..NOB

W(SIDE PROTECTION MOULDING),DARK BLUE M.M,8J1

 1
69220-20210H0

ST182,184..NOB

W(SIDE PROTECTION MOULDING),MEDIUM TURQUOISE M.,749

 1
69220-20210D0

ST182,184..NOB

W(SIDE PROTECTION MOULDING),WINE RED M,3J8

 1
69220-2021003

ST182,184..NOB

W(SIDE PROTECTION MOULDING),BLUISH SILVER M.,181

 1
69220-20240

AT180,ST182,184..NOB

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-2011001

AT180,ST182,184

BLACK,TRIM1#,8#

 1
69277-2011001

ST184

BLACK,TRIM1#

 1
69277-2012001

AT180,ST184..RHD

BLACK,TRIM1#,8#

 1
69277-2012001

AT180,ST184..RHD

W(POWER WINDOW),BLACK,TRIM1#,8#

 1
69277-2012001

ST184

W(POWER WINDOW),BLACK,TRIM1#

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-2011001

AT180,ST182,184

BLACK,TRIM1#,8#

 1
69277-2011001

ST184

BLACK,TRIM1#

 1
69277-2012001

AT180,ST184..RHD

BLACK,TRIM1#,8#

 1
69277-2012001

AT180,ST184..RHD

W(POWER WINDOW),BLACK,TRIM1#,8#

 1
69277-2012001

ST184

W(POWER WINDOW),BLACK,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-2011001

AT180,ST182,184

BLACK,TRIM1#,8#

 1
69278-2011001

ST184

BLACK,TRIM1#

 1
69278-2012001

ST184

W(POWER WINDOW),BLACK,TRIM1#

 1
69278-2012001

AT180,ST184..RHD

BLACK,TRIM1#,8#

 1
69278-2012001

AT180,ST184..RHD

W(POWER WINDOW),BLACK,TRIM1#,8#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-2011001

AT180,ST182,184

BLACK,TRIM1#,8#

 1
69278-2011001

ST184

BLACK,TRIM1#

 1
69278-2012001

ST184

W(POWER WINDOW),BLACK,TRIM1#

 1
69278-2012001

AT180,ST184..RHD

BLACK,TRIM1#,8#

 1
69278-2012001

AT180,ST184..RHD

W(POWER WINDOW),BLACK,TRIM1#,8#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

AT180,ST18#

NATURAL

 1
69293-12040

AT180,ST18#

YELLOW

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20600

ST182,184

 1
69030-20320

ST182,184

W(POWER WINDOW)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20600

ST182,184

 1
69030-20320

ST182,184

W(POWER WINDOW)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-20290

ST182,184

W(POWER WINDOW)

 1
69320-20590

ST182,184

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-20290

ST182,184

W(POWER WINDOW)

 1
69320-20590

ST182,184

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20090

AT180,ST18#

 2
69410-20080

AT180,ST18#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-20150

AT180,ST18#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-20150

AT180,ST18#

 1
69731 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69731-20050

AT180,ST18#

 1
69732 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69732-20050

AT180,ST18#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-50010

AT180,ST18#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-20040

AT180,ST18#

 2
69749-20040

AT180,ST18#

 1
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-20020

AT180,ST18#

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24090

AT180,ST18#

BROWN

 2
69759-24080

AT180,ST18#

YELLOW

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24090

AT180,ST18#

BROWN

 2
69759-24080

AT180,ST18#

YELLOW

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24030

AT180,ST18#

RED

 2
69759-24080

AT180,ST18#

YELLOW

 1
69759-24040

AT180,ST18#

PINK

 2
69759-50040

AT180,ST18#

NATURAL

 2
69759-24090

AT180,ST18#

BROWN

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-24070

AT180,ST18#

YELLOW

 2
69759-14050

AT180,ST18#

PINK

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-24070

AT180,ST18#

YELLOW

 2
69759-14050

AT180,ST18#

PINK

 2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-20020

AT180,ST18#

 1
74617E - PLAG, DOOR INSIDE HANDLE BEZEL
74617-20020

AT180,ST18#

 2
74617E - PLAG, DOOR INSIDE HANDLE BEZEL
74617-20020

AT180,ST18#

 2
Common parts
90105-06082
90159-60081
90159-60349
90159-80043
90189-06128
90467-06106
90467-08117
93540-54014
