ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

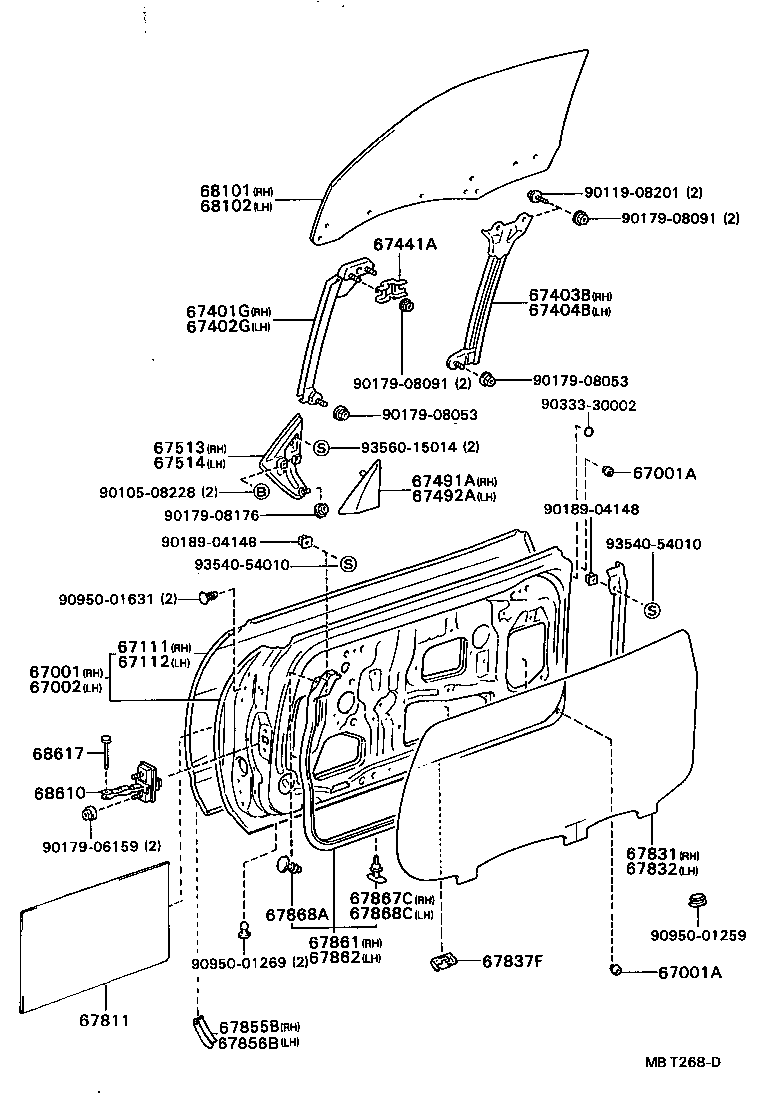

ILLUST NO. 1 OF 2(8910- )

Click highlighted areas on diagram

diagram 67001 67001A 67001A 67002 67111 67112 67401G 67402G 67403B 67404B 67441A 67491A 67492A 67513 67514 67811 67831 67832 67837F 67855B 67856B 67861 67862 67867C 67868A 67868C 68101 68102 68610 68617 9010508228 9011908201 9017906159 9017908053 9017908053 9017908091 9017908091 9017908176 9018904148 9018904148 9033330002 9095001259 9095001269 9095001631 9354054010 9354054010 9356015014
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-20830

ST18#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09006

AT180,ST18#

 4
67001A - CUSHION, FRONT DOOR PANEL
90541-09006

AT180,ST18#

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-20790

ST18#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-20300

AT180,ST18#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-20320

AT180,ST18#

 1
67401G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401-20190

AT180,ST18#

 1
67402G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67402-20180

AT180,ST18#

 1
67403B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
67403-20080

AT180,ST18#

 1
67404B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH
67404-20080

AT180,ST18#

 1
67441A - PLATE, FRONT DOOR FRONT GUIDE, UPPER
67441-20060

AT180,ST18#

 2
67441-32020

AT180,ST18#

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-20190

AT180,ST18#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-20210

AT180,ST18#

 1
67513 - BRACKET, FRONT DOOR MIRROR, RH
67513-20061

AT180,ST18#

 1
67513-20060

AT180,ST18#

 1
67514 - BRACKET, FRONT DOOR MIRROR, LH
67514-20060

AT180,ST18#

 1
67514-20061

AT180,ST18#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-20360

AT180,ST18#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-20360

AT180,ST18#

 1
67837F - SEAL, DOOR DUST PROOF
67837-22030

ST184,185

 2
67837-22030

ST185;ST184..CP

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-20320

AT180,ST18#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20320

AT180,ST18#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-20130

AT180,ST18#

 19
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67869-20030

AT180,ST18#

 4
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-20130

AT180,ST18#

 19
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-20550

AT180,ST18#

*TT,T=5.0,BLUE

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-20470

AT180,ST18#

*TT,T=5.0,BLUE

 1
68610 - CHECK ASSY, FRONT DOOR
68620-20010

AT180,ST18#

LH

 1
68610-20090

AT180,ST18#

RH

 1
68610-20070

AT180,ST18#

 2
68617 - PIN, FRONT DOOR CHECK
68617-20020

AT180,ST18#

 2
Common parts
90105-08228
90119-08201
90179-06159
90179-08053
90179-08091
90179-08176
90189-04148
90333-30002
90950-01259
90950-01269
90950-01631
93540-54010
93560-15014

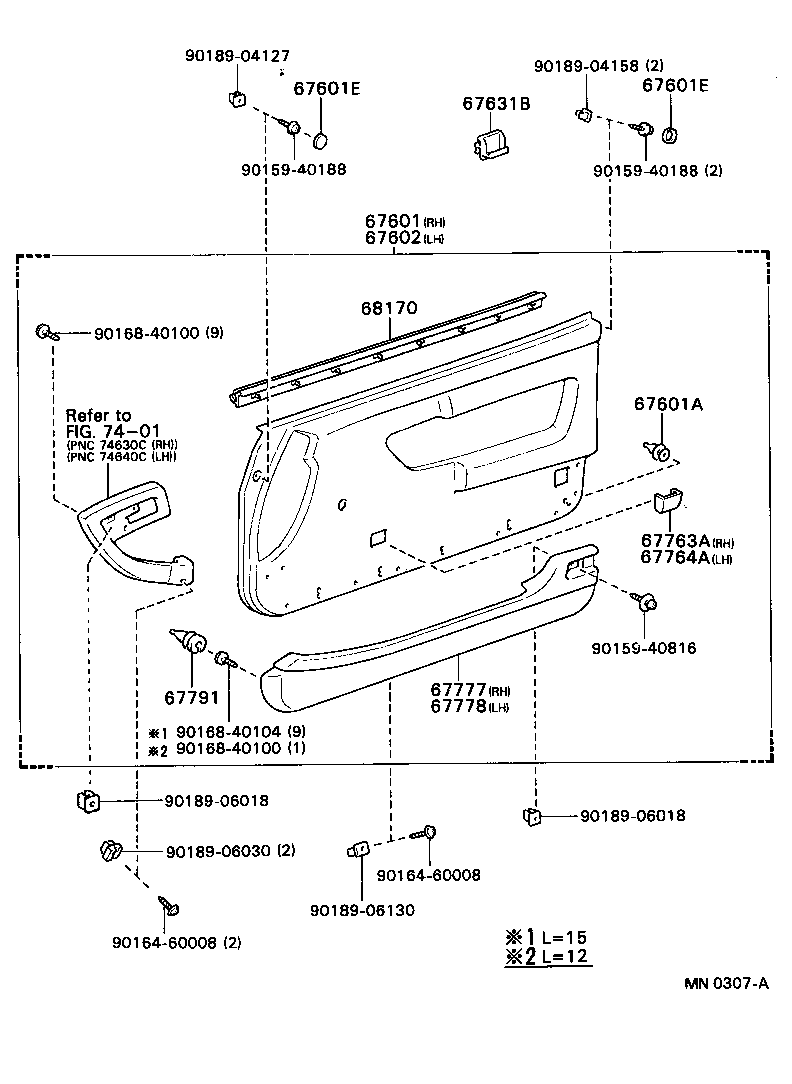

ILLUST NO. 2 OF 2(8910- )

Click highlighted areas on diagram

diagram 67601 67601A 67601E 67601E 67602 67631B 67763A 67764A 67777 67778 67791 68170 7401 9015940188 9015940188 9015940816 9016460008 9016460008 9016840100 9016840100 9016840104 9018904127 9018904158 9018906018 9018906018 9018906030 9018906130
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2D34003

ST184

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-2D34004

ST184

W(POWER WINDOW),DARK BLUE,TRIM8#

 1
67610-2D61003

ST184

SHADOW GRAY,TRIM1#

 1
67610-2D34103

ST184

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-2D61004

ST184

DARK BLUE,TRIM8#

 1
67610-2D61103

ST184

SHADOW GRAY,TRIM1#

 1
67610-2D61104

ST184

DARK BLUE,TRIM8#

 1
67610-2D34203

ST184..NOB

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-2D34204

ST184..NOB

W(POWER WINDOW),DARK BLUE,TRIM8#

 1
67610-2D34104

ST184

W(POWER WINDOW),DARK BLUE,TRIM8#

 1
67610-2D61203

ST184..NOB

SHADOW GRAY,TRIM1#

 1
67610-2D61204

ST184..NOB

DARK BLUE,TRIM8#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12030

AT180,ST18#

 5
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000804

AT180,ST182,184

DARK BLUE,TRIM8#

 6
90339-1000803

AT180,ST18#

SHADOW GRAY,TRIM1#

 6
67601E - CAP(FOR FRONT DOOR TRIM BOARD)
90339-1000804

AT180,ST182,184

DARK BLUE,TRIM8#

 6
90339-1000803

AT180,ST18#

SHADOW GRAY,TRIM1#

 6
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2G63003

ST184

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67620-2G63004

ST184

W(POWER WINDOW),DARK BLUE,TRIM8#

 1
67620-2G88004

ST184

DARK BLUE,TRIM8#

 1
67620-2G88003

ST184

SHADOW GRAY,TRIM1#

 1
67620-2G63104

ST184

W(POWER WINDOW),DARK BLUE,TRIM8#

 1
67620-2G88103

ST184

SHADOW GRAY,TRIM1#

 1
67620-2G88104

ST184

DARK BLUE,TRIM8#

 1
67620-2G63103

ST184

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67620-2G63204

ST184..NOB

W(POWER WINDOW),DARK BLUE,TRIM8#

 1
67620-2G63203

ST184..NOB

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67620-2G88204

ST184..NOB

DARK BLUE,TRIM8#

 1
67620-2G88203

ST184..NOB

SHADOW GRAY,TRIM1#

 1
67631B - RETAINER, FRONT DOOR TRIM, UPPER
67631-20010

AT180,ST18#

 2
67763A - COVER, FRONT DOOR TRIM, LOWER RH
67763-2009003

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
67763-2009004

AT180,ST182,184

DARK BLUE,TRIM8#

 1
67764A - COVER, FRONT DOOR TRIM, LOWER LH
67764-2006003

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
67764-2006004

AT180,ST182,184

DARK BLUE,TRIM8#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67770-2007003

ST184

SHADOW GRAY,TRIM1#

 1
67770-2007004

ST184

DARK BLUE,TRIM8#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67780-2004004

ST184

DARK BLUE,TRIM8#

 1
67780-2004003

ST184

SHADOW GRAY,TRIM1#

 1
67780-2004003

ST184..NOB

SHADOW GRAY,TRIM1#

 1
67791 - RETAINER, FRONT DOOR POCKET
67791-20040

AT180,ST18#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-20370

AT180,ST18#

RH

 1
68220-20280

AT180,ST18#

LH

 1
68170-20371

AT180,ST18#

RH

 1
68220-20281

AT180,ST18#

LH

 1
Common parts
90159-40188
90159-40816
90164-60008
90168-40100
90168-40104
90189-04127
90189-04158
90189-06018
90189-06030
90189-06130
Linked diagrams
7401
