ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )CP

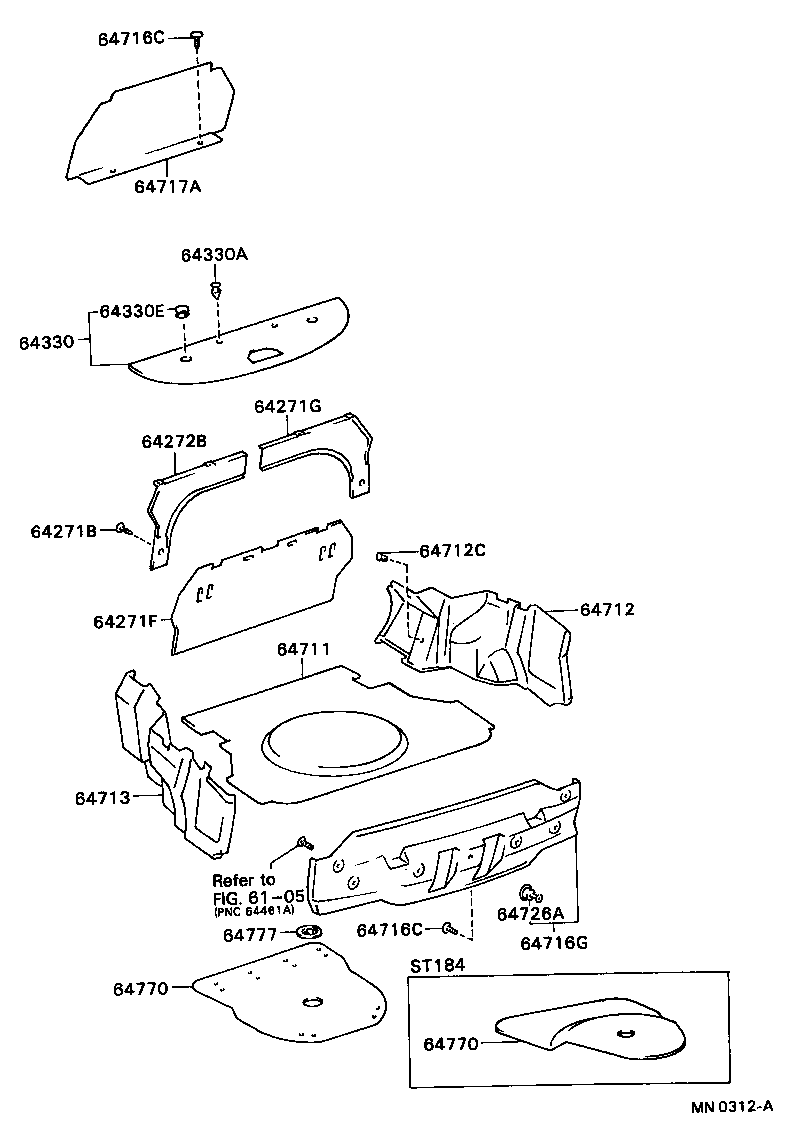

Click highlighted areas on diagram

diagram 6105 64271B 64271F 64271G 64272B 64330 64330A 64330E 64711 64712 64712C 64713 64716C 64716C 64716G 64717A 64726A 64770 64770 64777
Part # Description Qty Price
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-0601633

ST184..CP

GRAY,TRIM1#

 2
90467-0601658

AT180,ST184..CP

GRAY,TRIM1#,8#

 2
90467-0601633

ST184..CP

GRAY,TRIM1#,8#

 2
64271G - BOARD, ROOM PARTITION, RH
64271-2018003

AT180,ST184..CP

GRAY,TRIM1#,8#

 1
64271-2018003

ST184..CP

GRAY,TRIM1#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-2002003

ST184..CP

GRAY,TRIM1#

 1
64272-2002003

AT180,ST184..CP

GRAY,TRIM1#,8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2B20004

ST184..CP

DARK BLUE,TRIM8#

 1
64330-2B20003

ST184..CP

SHADOW GRAY,TRIM1#

 1
64330-2B22004

ST184..CP

W(SPOILER),DARK BLUE,TRIM8#

 1
64330-2B22003

ST184..CP

W(SPOILER),SHADOW GRAY,TRIM1#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0803713

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 6
90467-08037J0

ST184..CP

DARK BLUE,TRIM8#

 6
90467-0803724

AT180,ST184..CP

DARK BLUE,TRIM8#

 6
64330E - PLUG(FOR PACKAGE TRAY TRIM PANEL)
90950-01436B1

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 2
90950-01436J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 2
90950-0143613

AT180,ST184..CP

GRAY,TRIM1#

 2
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-20640C0

ST184..CP

BLACK,TRIM1#,8#

 1
64711-20640C0

ST184..CP

BLACK,TRIM1#

 1
64711-2064003

ST184..CP

GRAY,TRIM1#,8#

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-2017003

AT180,ST184..CP

GRAY,TRIM1#,8#

 1
64712-20170C0

ST184..CP

BLACK,TRIM1#,8#

 1
64712-20170C0

ST184..CP

BLACK,TRIM1#

 1
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-0805623

AT180,ST184..CP

GRAY,TRIM1#,8#

 6
90467-08056C0

ST184..CP

BLACK,TRIM1#,8#

 6
90467-08056C0

ST184..CP

BLACK,TRIM1#

 6
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-20170C0

ST184..CP

BLACK,TRIM1#

 1
64713-20170C0

ST184..CP

BLACK,TRIM1#,8#

 1
64713-2017003

AT180,ST184..CP

GRAY,TRIM1#,8#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0705301

ST184..CP

BLACK,TRIM1#

 1
90467-0705323

AT180,ST184..CP

GRAY,TRIM1#,8#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0705301

ST184..CP

BLACK,TRIM1#

 1
90467-0705323

AT180,ST184..CP

GRAY,TRIM1#,8#

 1
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-20320C0

ST184..CP

BLACK,TRIM1#,8#

 1
64716-20320C0

ST184..CP

BLACK,TRIM1#

 1
64716-2032003

AT180,ST184..CP

GRAY,TRIM1#,8#

 1
64726A - CLIP, LUGGAGE TRIM, REAR
64726-2002001

ST184..CP

BLACK,TRIM1#

 6
64726-2002003

AT180,ST184..CP

GRAY,TRIM1#,8#

 6
64726-2002001

ST184..CP

BLACK,TRIM1#,8#

 6
64770 - COVER ASSY, SPARE WHEEL
64770-20090

ST184..CP

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20090

ST184..CP

 1
Linked diagrams
6105
