ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

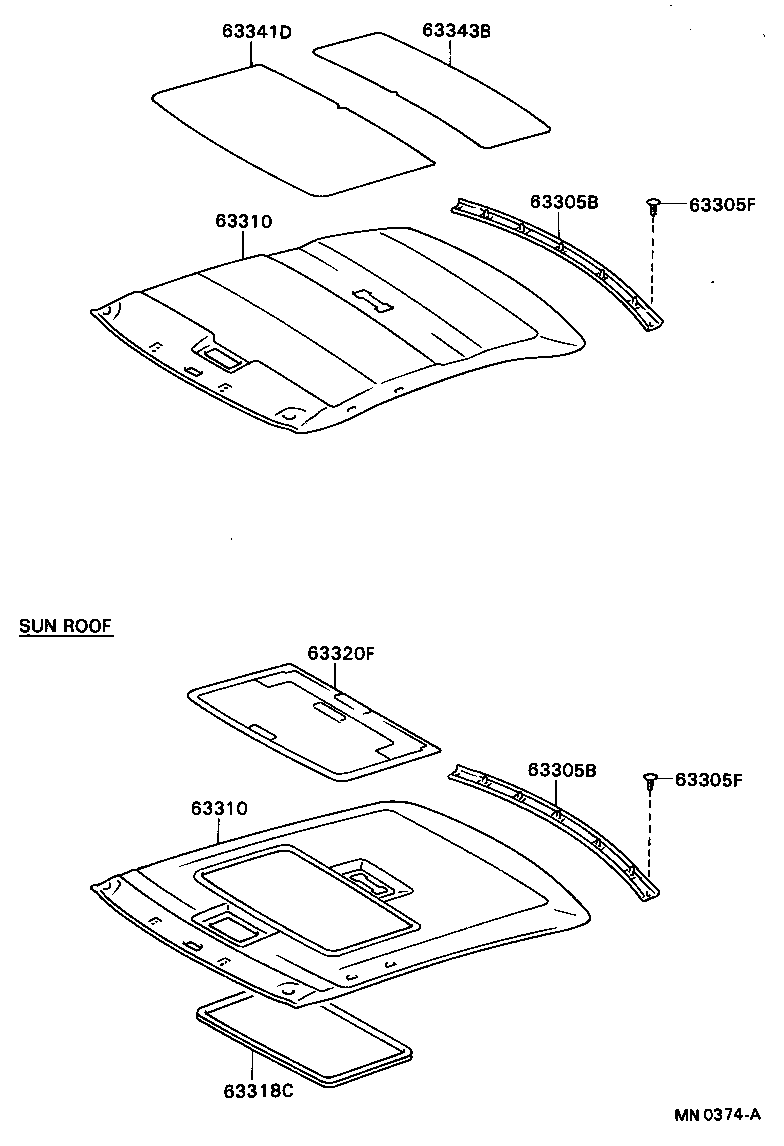

Click highlighted areas on diagram

diagram 63305B 63305B 63305F 63305F 63310 63310 63318C 63320F 63341D 63343B
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-2010003

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 1
63305-20100S3

AT180,ST184..CP

LIGHT GRAY,TRIM1#

 1
63305-20100R4

AT180,ST184..CP

LIGHT BLUE,TRIM8#

 1
63305-20100J0

ST184..CP

DARK BLUE,TRIM8#

 1
63305-2010004

AT180,ST184..CP

DARK BLUE,TRIM8#

 1
63305-20100B0

ST184..CP

SHADOW GRAY,TRIM1#

 1
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-2010003

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 1
63305-20100S3

AT180,ST184..CP

LIGHT GRAY,TRIM1#

 1
63305-20100R4

AT180,ST184..CP

LIGHT BLUE,TRIM8#

 1
63305-20100J0

ST184..CP

DARK BLUE,TRIM8#

 1
63305-2010004

AT180,ST184..CP

DARK BLUE,TRIM8#

 1
63305-20100B0

ST184..CP

SHADOW GRAY,TRIM1#

 1
63305F - CLIP(FOR ROOF HEADLINING TRIM)
90467-0501401

AT180,ST184..CP

BLACK,TRIM1#,8#

 2
90467-0501401

ST184..CP

BLACK,TRIM1#

 2
63305F - CLIP(FOR ROOF HEADLINING TRIM)
90467-0501401

AT180,ST184..CP

BLACK,TRIM1#,8#

 2
90467-0501401

ST184..CP

BLACK,TRIM1#

 2
63310 - HEADLINING ASSY, ROOF
63310-2B11003

AT180,ST184..CP

W(SUNROOF),SHADOW GRAY,TRIM1#

 1
63310-2B08003

AT180,ST184..RHD..CP

SHADOW GRAY,TRIM1#

 1
63310-2B11004

AT180,ST184..CP

W(SUNROOF),DARK BLUE,TRIM8#

 1
63310-2B11003

ST184..CP

SHADOW GRAY,TRIM1#

 1
63310-2B08004

AT180,ST184..RHD..CP

DARK BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-2B11003

AT180,ST184..CP

W(SUNROOF),SHADOW GRAY,TRIM1#

 1
63310-2B08003

AT180,ST184..RHD..CP

SHADOW GRAY,TRIM1#

 1
63310-2B11004

AT180,ST184..CP

W(SUNROOF),DARK BLUE,TRIM8#

 1
63310-2B11003

ST184..CP

SHADOW GRAY,TRIM1#

 1
63310-2B08004

AT180,ST184..RHD..CP

DARK BLUE,TRIM8#

 1
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-2010004

AT180,ST182,184

DARK BLUE,TRIM8#

 1
63318-2010003

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
63320F - HEADLINING ASSY, SUN ROOF
63320-2007004

AT180,ST182,184

DARK BLUE,TRIM8#

 1
63320-2007003

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
63341D - PAD, ROOF SILENCER, FRONT
63341-20190

AT180,ST18#

 1
63343B - PAD, ROOF SILENCER, REAR
63343-20060

AT180,ST184..CP

 1
