ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )CP

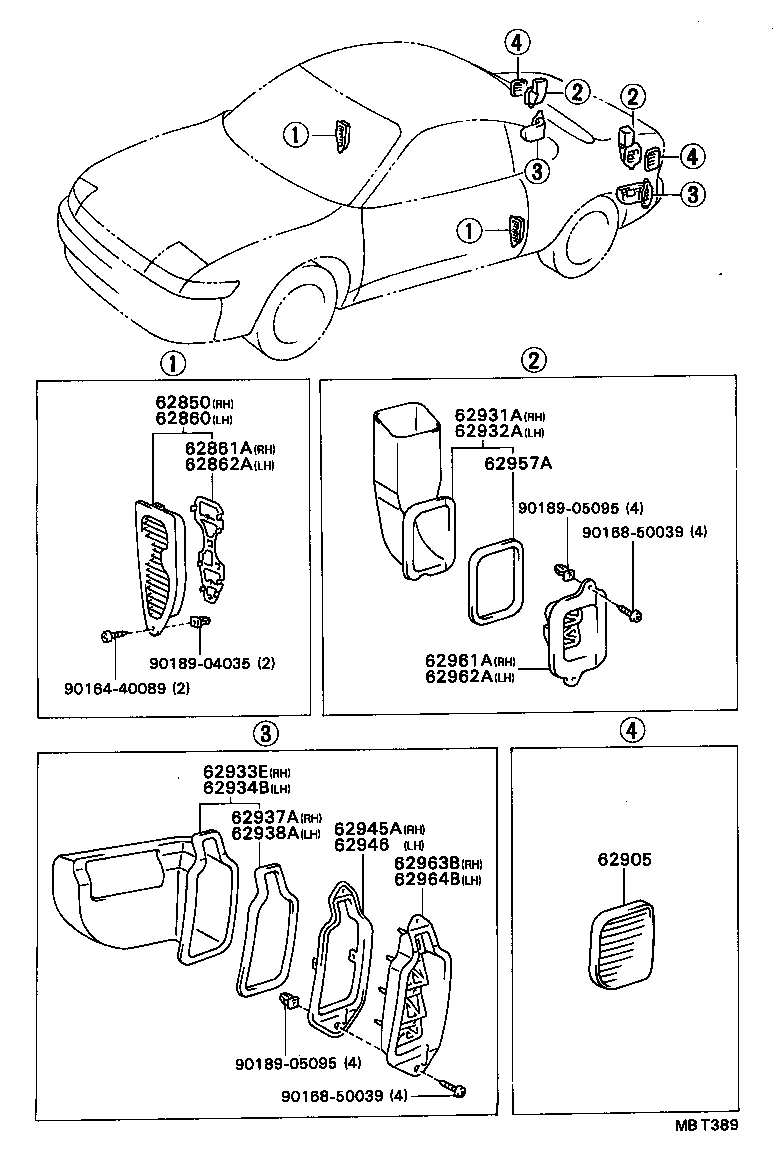

Click highlighted areas on diagram

diagram 62850 62860 62861A 62862A 62905 62931A 62932A 62933E 62934B 62937A 62938A 62945A 62946 62957A 62961A 62962A 62963B 62964B 9016440089 9016850039 9016850039 9018904035 9018905095 9018905095
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-20050

AT180,ST18#

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-20060

AT180,ST18#

 1
62861A - GASKET, ROOM PRESSURE RELIEF VALVE, RH
62861-20050

AT180,ST18#

 1
62862A - GASKET, ROOM PRESSURE RELIEF VALVE, LH
62862-20040

AT180,ST18#

 1
62905 - LOUVER, QUARTER VENTILATION
62952-20240

ST184..CP

LH

 1
62951-20220

AT180,ST184..CP

RH

 1
62952-20220

AT180,ST184..CP

LH

 1
62951-20260

ST184..CP

RH

 1
62931A - DUCT, QUARTER VENT, RH
62931-20130

AT180,ST184..CP

 1
62932A - DUCT, QUARTER VENT, LH
62932-20120

AT180,ST184..CP

 1
62933E - DUCT, QUARTER VENT, INNER RH
62933-20040

AT180,ST18#

 1
62934B - DUCT, QUARTER VENT, INNER LH
62934-20040

AT180,ST18#

 1
62937A - PACKING, QUARTER VENT DUCT, RH
62937-20050

AT180,ST18#

 1
62938A - PACKING, QUARTER VENT DUCT, LH
62938-20020

AT180,ST18#

 1
62945A - RETAINER, QUARTER VENT DUCT, NO.3
62945-20010

AT180,ST18#

 1
62946 - RETAINER, QUARTER VENT DUCT, NO.4
62946-20010

AT180,ST18#

 1
62957A - SEAL, QUARTER VENT DUCT, NO.1
62957-20060

AT180,ST184..CP

 2
62961A - GRILLE, ROOM VENT, RH
62961-20020

AT180,ST184..CP

 1
62962A - GRILLE, ROOM VENT, LH
62962-20020

AT180,ST184..CP

 1
62963B - PLATE, QUARTER VENT LOUVER, RH
62963-20050

AT180,ST18#

 1
62964B - PLATE, QUARTER VENT LOUVER, LH
62964-20030

AT180,ST18#

 1
Common parts
90164-40089
90168-50039
90189-04035
90189-05095
