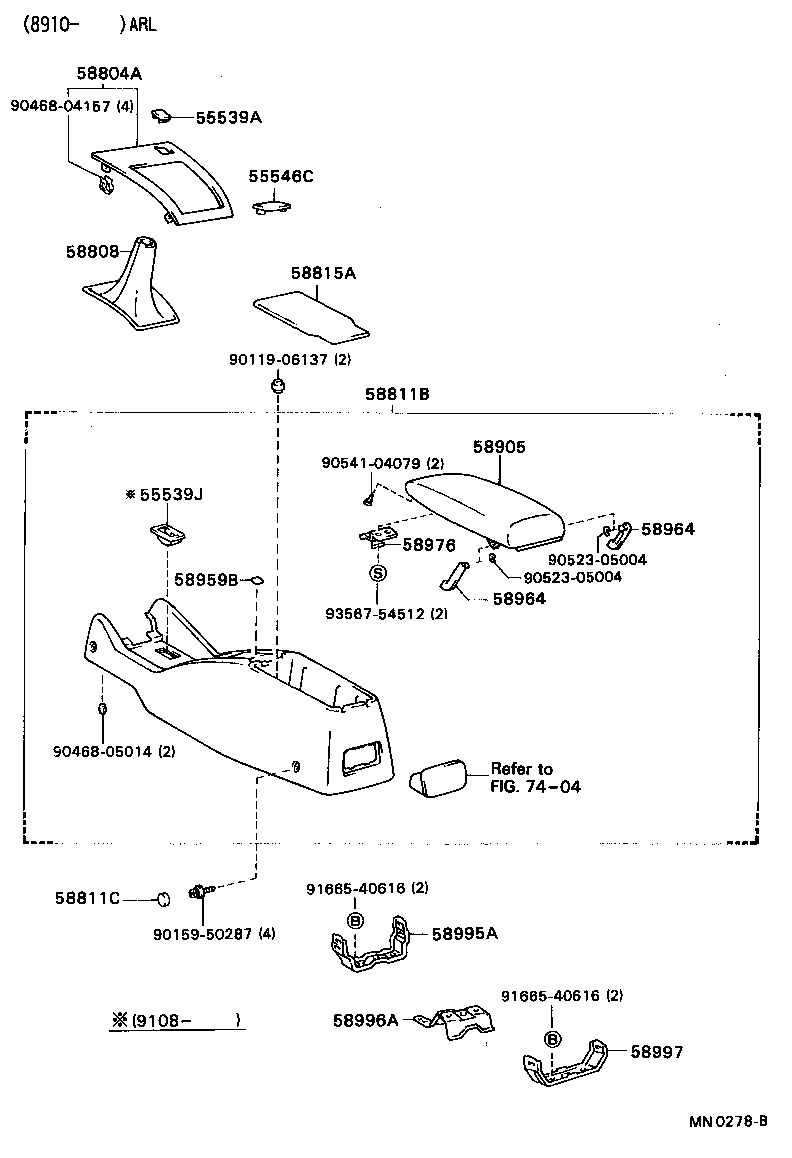

ST184R-BCPSKQ (1989)
Toyota Celica
(8910- )ST184,185
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2008004 |
AT180,ST184..RHD DARK BLUE,TRIM8# |
1 | ||
| 55539-2008003 |
AT180,ST184,185..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-3203004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 55539-32030B0 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 55546C - COVER, POWER SEAT SWITCH HOLE | ||||
| 55546-2002003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 55546-2002004 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-2004004 |
ST184..ATM DARK BLUE,TRIM8# |
1 | ||
| 58804-2004003 |
ST184..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58801-2021003 |
ST184 SHADOW GRAY,TRIM1# |
1 | ||
| 58801-2021004 |
ST184 DARK BLUE,TRIM8# |
1 | ||
| 58801-20211P0 |
ST184 SHADOW GRAY,TRIM1# |
1 | ||
| 58801-20211R8 |
ST184 DARK BLUE,TRIM8# |
1 | ||
| 58811C - CAP(FOR CONSOLE) | ||||
| 90339-1000904 |
AT180,ST182,184 DARK BLUE,TRIM8# |
4 | ||
| 90339-1000903 |
ST185;AT180,ST182,184..NOB SHADOW GRAY,TRIM1# |
4 | ||
| 90339-1000903 |
AT180,ST18# SHADOW GRAY,TRIM1# |
4 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-2002001 |
ST184,185 BLACK,TRIM1# |
1 | ||
| 58815-2002001 |
AT180,ST182,184 BLACK,TRIM1#,8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2012004 |
ST184 DARK BLUE,TRIM8# |
1 | ||
| 58905-2012003 |
ST184,185 SHADOW GRAY,TRIM1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
AT180,ST18# |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-90K00 |
AT180,ST18# RH |
1 | ||
| 58964-20020 |
AT180,ST18# LH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-90K00 |
AT180,ST18# RH |
1 | ||
| 58964-20020 |
AT180,ST18# LH |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-20020 |
AT180,ST18# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20050 |
AT180,ST182,184 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-20050 |
AT180,ST182,184 |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-20020 |
AT180,ST182,184 |
1 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90159-50287 | ||||
| 90468-04157 | ||||
| 90468-05014 | ||||
| 90523-05004 | ||||
| 90541-04079 | ||||
| 91665-40616 | ||||
| 93567-54512 | ||||
| Linked diagrams | ||||
| 7404 | ||||
