ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )CP

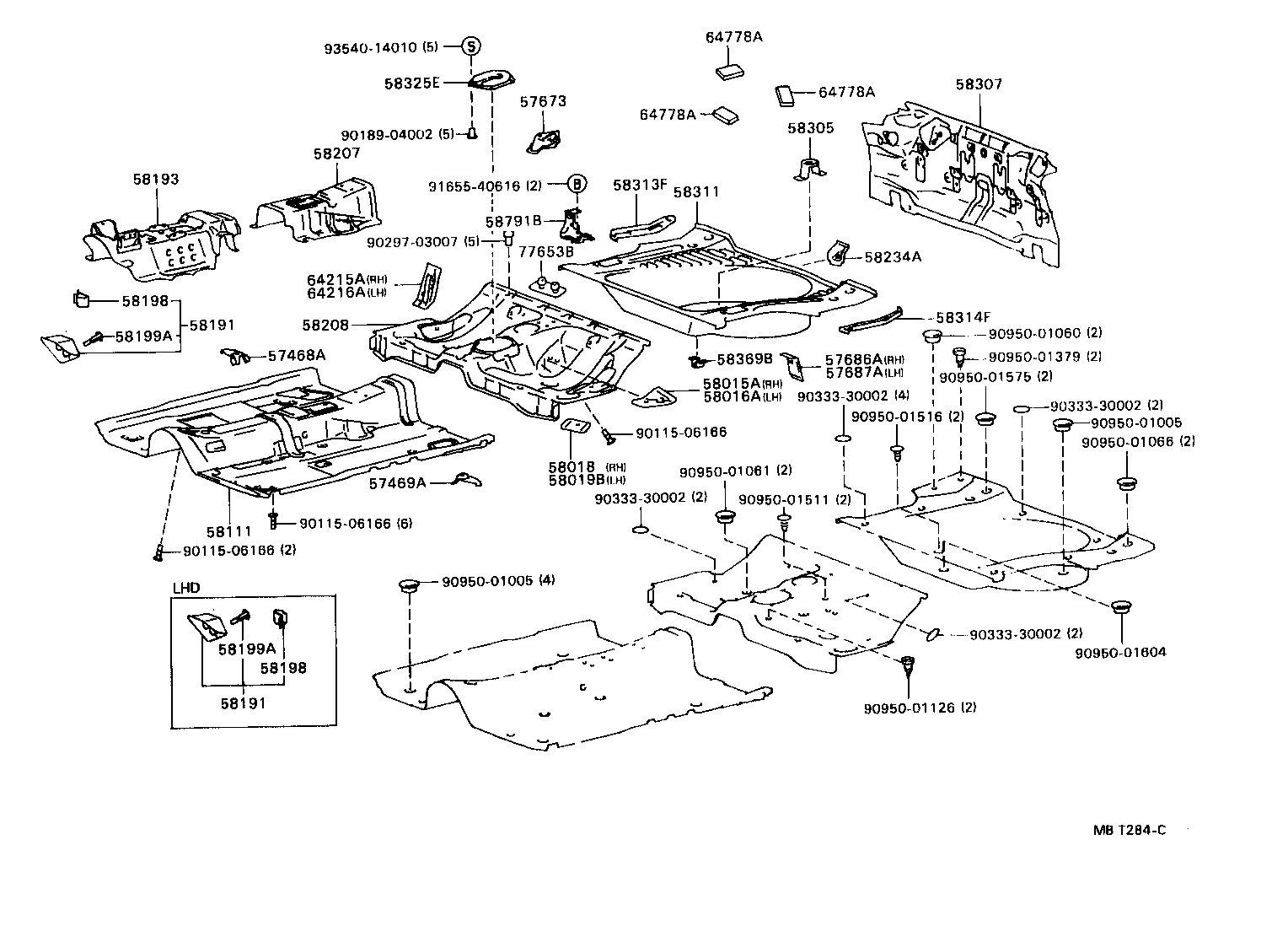

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-20050 |
AT180,ST18# |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-20050 |
AT180,ST18# |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-20060 |
AT180,ST182,184 |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-20040 |
AT180,ST182,184 |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57686-20040 |
AT180,ST182,184 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-20060 |
AT180,ST182,184 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-20050 |
AT180,ST182,184 |
1 | ||
| 58018 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 RH | ||||
| 58018-20020 |
ST184 |
1 | ||
| 58019B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 LH | ||||
| 58019-20020 |
ST184 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-20150 |
AT180,ST182,184 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-20060 |
AT180,ST184,185..RHD |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-20060 |
AT180,ST184,185..RHD |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-20110 |
AT180,ST182,184 |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-20100 |
AT180,ST184,185..RHD |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-20100 |
AT180,ST184,185..RHD |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-20020 |
AT180,ST184,185..RHD |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-20020 |
AT180,ST184,185..RHD |
1 | ||
| 58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-20100 |
AT180,ST182,184 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-20310 |
AT180,ST182,184 |
1 | ||
| 58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER | ||||
| 58234-20050 |
AT180,ST182,184 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AT180,ST18# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-20740 |
AT180,ST184..CP |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-20270 |
AT180,ST182,184 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-20230 |
AT180,ST182,184 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-20210 |
AT180,ST182,184 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-20050 |
AT180,ST182,184 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-20010 |
AT180,ST182,184 |
5 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-20050 |
AT180,ST184..CP |
1 | ||
| 64215A - EXTENSION, REAR FLOOR TO PACKAGE TRAY, RH | ||||
| 64215-20030 |
AT180,ST184..CP |
1 | ||
| 64216A - EXTENSION, REAR FLOOR TO PACKAGE TRAY, LH | ||||
| 64216-20040 |
AT180,ST184..CP |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-20070 |
ST18# |
3 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-20070 |
ST18# |
3 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-20070 |
ST18# |
3 | ||
| 77653B - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-20070 |
ST184 |
2 | ||
| 77653-20071 |
AT180,ST182,184 |
2 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90189-04002 | ||||
| 90297-03007 | ||||
| 90333-30002 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||
| 90950-01126 | ||||
| 90950-01379 | ||||
| 90950-01511 | ||||
| 90950-01516 | ||||
| 90950-01575 | ||||
| 90950-01604 | ||||
| 91655-40616 | ||||
| 93540-14010 | ||||
