ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )

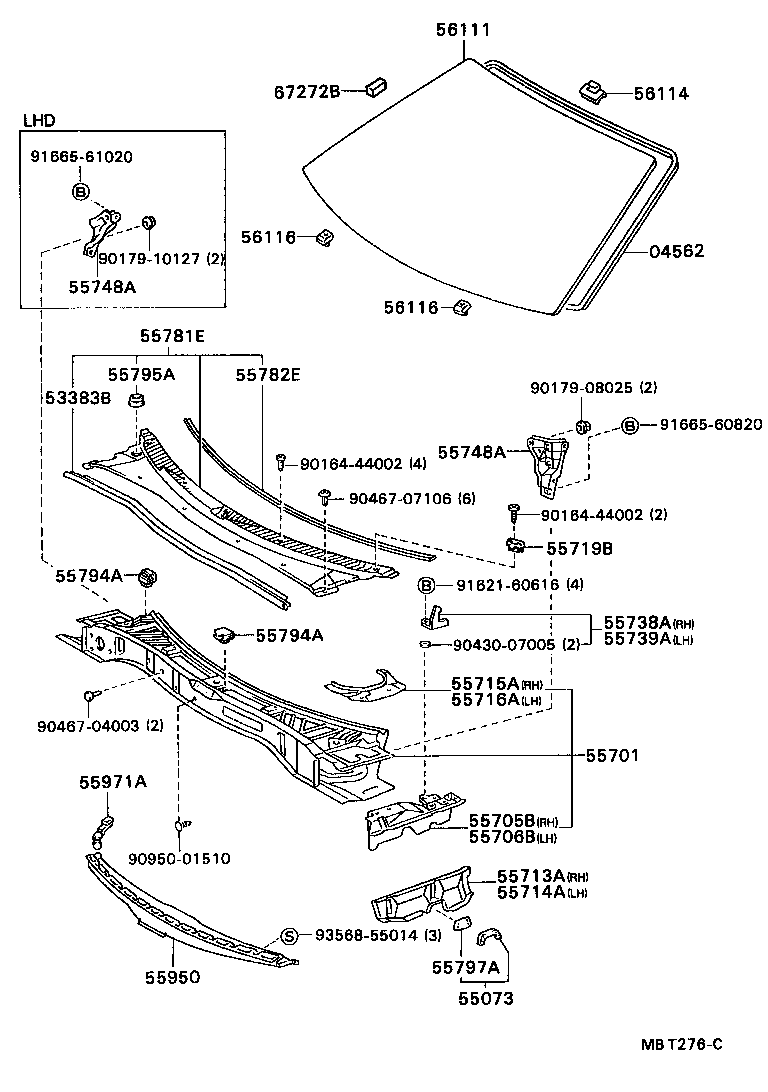

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
AT180,ST18# |
1 | ||
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-20150 |
AT180,ST18# |
1 | ||
| 55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT | ||||
| 55073-20020 |
ST18# |
2 | ||
| 55073-20040 |
AT180,ST18# |
2 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-20900 |
AT180,ST184,185..RHD |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-20070 |
AT180,ST18# |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-20090 |
AT180,ST18# |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-20120 |
AT180,ST18# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-20120 |
AT180,ST18# |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-20110 |
AT180,ST18# |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-20080 |
AT180,ST18# |
1 | ||
| 55719B - BRACKET, COWL TOP OUTER PANEL, NO.2 | ||||
| 55719-20020 |
AT180,ST18# |
2 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-20040 |
AT180,ST18# |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-20040 |
AT180,ST18# |
1 | ||
| 55748A - BRACE, COWL TOP INNER TO PILLAR | ||||
| 55748-20120 |
AT180,ST184,185..RHD |
1 | ||
| 55748A - BRACE, COWL TOP INNER TO PILLAR | ||||
| 55748-20120 |
AT180,ST184,185..RHD |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-20072 |
ST185..TBO4W;AT180,ST184..RHD |
1 | ||
| 55708-20071 |
AT180,ST184,185..RHD |
1 | ||
| 55782E - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55782-20070 |
AT180,ST18# |
1 | ||
| 55794A - BRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2 | ||||
| 55783-20130 |
AT180,ST184,185..RHD RH |
1 | ||
| 55794-20020 |
AT180,ST18# |
2 | ||
| 55794-20020 |
AT180,ST184,185..RHD LH |
1 | ||
| 55794A - BRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2 | ||||
| 55783-20130 |
AT180,ST184,185..RHD RH |
1 | ||
| 55794-20020 |
AT180,ST18# |
2 | ||
| 55794-20020 |
AT180,ST184,185..RHD LH |
1 | ||
| 55795A - SEAL, WIPER MOTOR SERVICE HOLE | ||||
| 55795-20030 |
AT180,ST18# |
1 | ||
| 55797A - SEAL, COWL WATER EXTRACT | ||||
| 55797-20030 |
ST18# |
2 | ||
| 55797-20050 |
AT180,ST18# |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-20090 |
AT180,ST184,185..RHD |
1 | ||
| 55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-20090 |
AT180,ST184,185..RHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-20830 |
ST184,185 *LAM,T=4.7 |
1 | ||
| 56111-20810 |
ST18# *TL,T=4.7,BLUE |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-20010 |
AT180,ST18# |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-20060 |
AT180,ST18# |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-20060 |
AT180,ST18# |
2 | ||
| 67272B - CUSHION, BACK DOOR STOPPER, NO.2 | ||||
| 67272-20010 |
AT180,ST18# |
7 | ||
| Common parts | ||||
| 90164-44002 | ||||
| 90179-08025 | ||||
| 90179-10127 | ||||
| 90430-07005 | ||||
| 90467-04003 | ||||
| 90467-07106 | ||||
| 90950-01510 | ||||
| 91621-60616 | ||||
| 91665-60820 | ||||
| 91665-61020 | ||||
| 93568-55014 | ||||
