ST184R-BCPSKQ (1989)
Toyota Celica
(8910- )

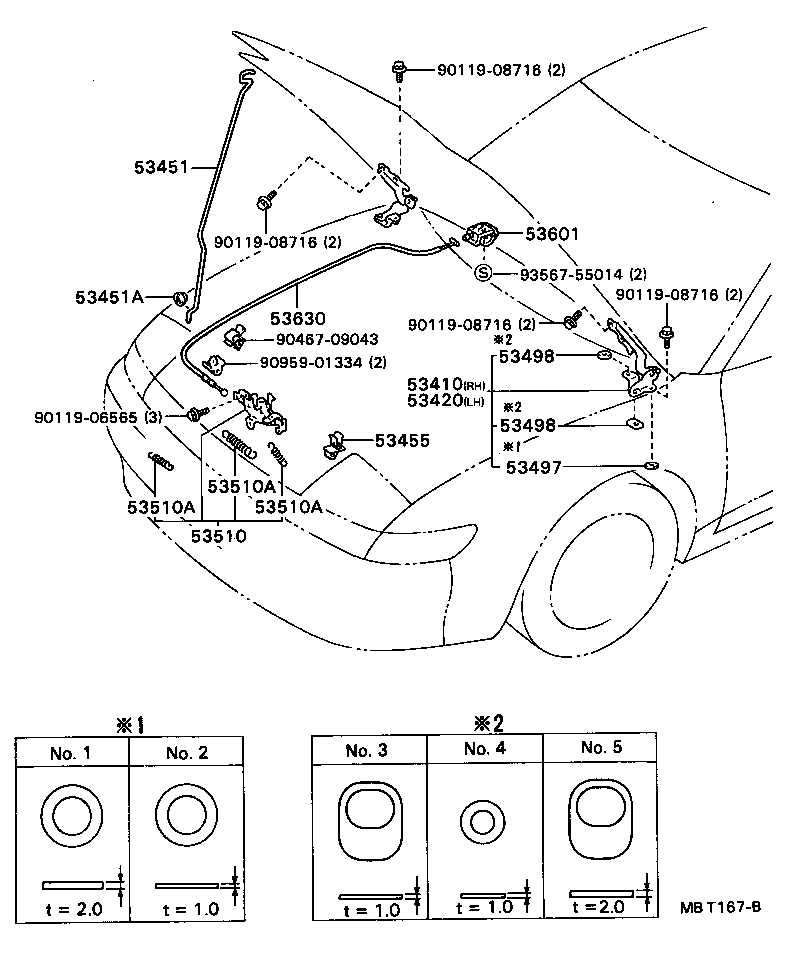

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-20130 |
AT180,ST18# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-20130 |
AT180,ST18# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-20100 |
AT180,ST18# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15020 |
AT180,ST18# |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-20030 |
AT180,ST18# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20060 |
AT180,ST18# |
1 | ||
| 53497-20060 |
AT180,ST18# NO.2 |
1 | ||
| 53497-20050 |
AT180,ST18# NO.1 |
1 | ||
| 53497-20050 |
AT180,ST18# NO.1 |
4 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-20050 |
AT180,ST18# NO.5 |
2 | ||
| 53498-20040 |
AT180,ST18# NO.4 |
1 | ||
| 53498-20050 |
AT180,ST18# NO.5 |
1 | ||
| 53498-20040 |
AT180,ST18# N0.4 |
1 | ||
| 53498-20030 |
AT180,ST18# NO.3 |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-20050 |
AT180,ST18# NO.5 |
2 | ||
| 53498-20040 |
AT180,ST18# NO.4 |
1 | ||
| 53498-20050 |
AT180,ST18# NO.5 |
1 | ||
| 53498-20040 |
AT180,ST18# N0.4 |
1 | ||
| 53498-20030 |
AT180,ST18# NO.3 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-20280 |
AT180,ST184,185..RHD |
1 | ||
| 53510-20370 |
AT180,ST184,185..RHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20061 |
AT180,ST18# WD=2.0,CW=17,L=59.0 |
1 | ||
| 90506-09052 |
AT180,ST18# WD=0.9,CW=20.75,WD=0.9,CW=20.75,L=35.0 |
2 | ||
| 90506-09039 |
AT180,ST18# WD=0.9,CW=21.25,WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-09029 |
AT180,ST18# WD=0.9,WD=0.9,CW=26.5,L=39.6 |
1 | ||
| 90506-20008 |
AT180,ST18# WD=2.0,CW=17,L=59.0 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20061 |
AT180,ST18# WD=2.0,CW=17,L=59.0 |
1 | ||
| 90506-09052 |
AT180,ST18# WD=0.9,CW=20.75,WD=0.9,CW=20.75,L=35.0 |
2 | ||
| 90506-09039 |
AT180,ST18# WD=0.9,CW=21.25,WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-09029 |
AT180,ST18# WD=0.9,WD=0.9,CW=26.5,L=39.6 |
1 | ||
| 90506-20008 |
AT180,ST18# WD=2.0,CW=17,L=59.0 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20061 |
AT180,ST18# WD=2.0,CW=17,L=59.0 |
1 | ||
| 90506-09052 |
AT180,ST18# WD=0.9,CW=20.75,WD=0.9,CW=20.75,L=35.0 |
2 | ||
| 90506-09039 |
AT180,ST18# WD=0.9,CW=21.25,WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-09029 |
AT180,ST18# WD=0.9,WD=0.9,CW=26.5,L=39.6 |
1 | ||
| 90506-20008 |
AT180,ST18# WD=2.0,CW=17,L=59.0 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-2008104 |
AT180,ST182,184 DARK BLUE,TRIM8# |
1 | ||
| 53601-2008103 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-20351 |
AT180,ST184,185..RHD |
2 | ||
| 53630-20390 |
AT180,ST184,185..RHD |
1 | ||
| Common parts | ||||
| 90119-06565 | ||||
| 90119-08716 | ||||
| 90467-09043 | ||||
| 90959-01334 | ||||
| 93567-55014 | ||||
