ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )CP

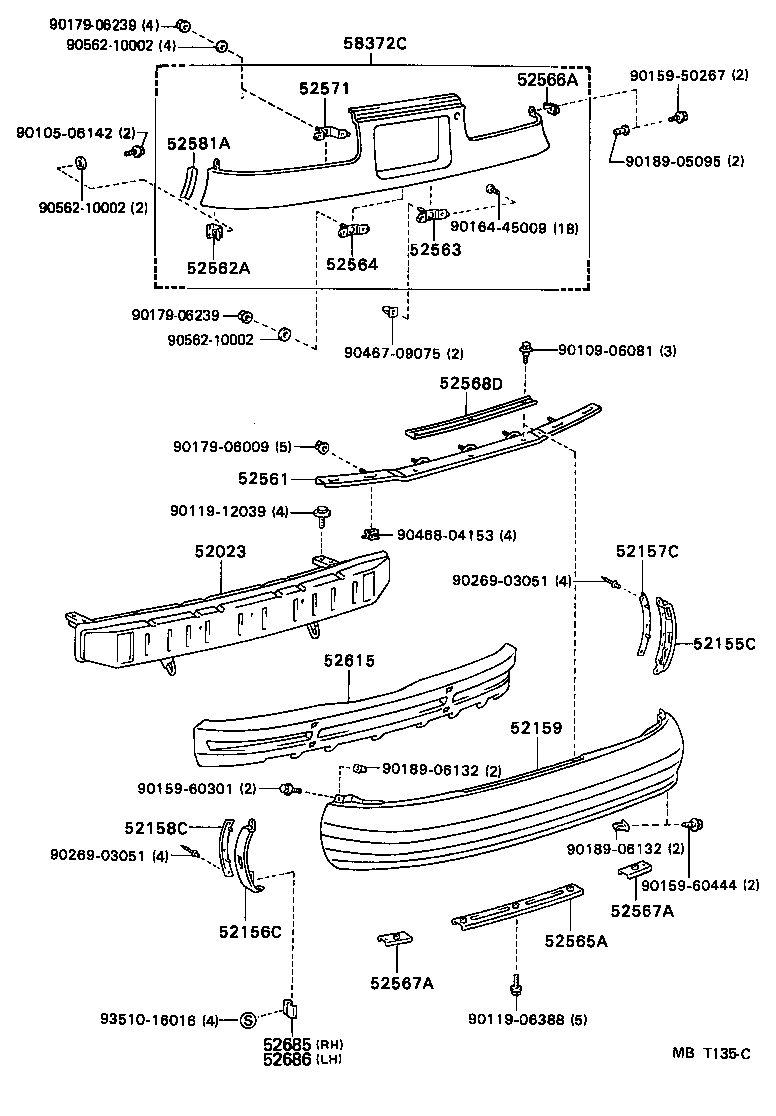

Click highlighted areas on diagram

diagram 52023 52155C 52156C 52157C 52158C 52159 52561 52562A 52563 52564 52565A 52566A 52567A 52567A 52568D 52571 52581A 52615 52685 52686 58372C 9010506142 9010906081 9011906388 9011912039 9015950267 9015960301 9015960444 9016445009 9017906009 9017906239 9017906239 9018905095 9018906132 9018906132 9026903051 9026903051 9046709075 9046804153 9056210002 9056210002 9056210002 9351016016
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-20290

AT180,ST184..CP

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-20230

AT180,ST184..CP

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-20160

AT180,ST184..CP

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-20100

AT180,ST184..CP

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-20070

AT180,ST184..CP

 1
52159 - COVER, REAR BUMPER
52159-20920

AT180,ST184..CP

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20160

AT180,ST184..CP

 1
52562A - RETAINER, REAR BUMPER FILLER, NO.2
52562-20020

AT180,ST184..CP

 2
52563 - RETAINER, REAR BUMPER FILLER, NO.3
52563-20030

AT180,ST184..CP

 2
52564 - RETAINER, REAR BUMPER FILLER, NO.4
52564-20010

AT180,ST184..CP

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-20140

AT180,ST18#

 1
52566A - RETAINER, REAR BUMPER FILLER, NO.5
52566-20020

AT180,ST184..CP

 2
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52567-20030

AT180,ST18#

 2
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52567-20030

AT180,ST18#

 2
52568D - RETAINER, REAR BUMPER, UPPER NO.2
52568-20020

AT180,ST18#

 1
52571 - BRACKET, REAR BUMPER FILLER
52571-20010

AT180,ST184..CP

 4
52581A - PROTECTOR, REAR BUMPER FILLER
52581-20020

AT180,ST184..CP

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20140

AT180,ST184..CP

 1
52685 - SUPPORT, REAR BUMPER SIDE, NO.3 RH
52685-20010

AT180,ST18#

 2
52686 - SUPPORT, REAR BUMPER SIDE, NO.3 LH
52685-20010

AT180,ST18#

 2
58372C - PANEL, BODY LOWER BACK, REAR
58372-20900

AT180,ST184..CP

 1
Common parts
90105-06142
90109-06081
90119-06388
90119-12039
90159-50267
90159-60301
90159-60444
90164-45009
90179-06009
90179-06239
90189-05095
90189-06132
90269-03051
90467-09075
90468-04153
90562-10002
93510-16016
