ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

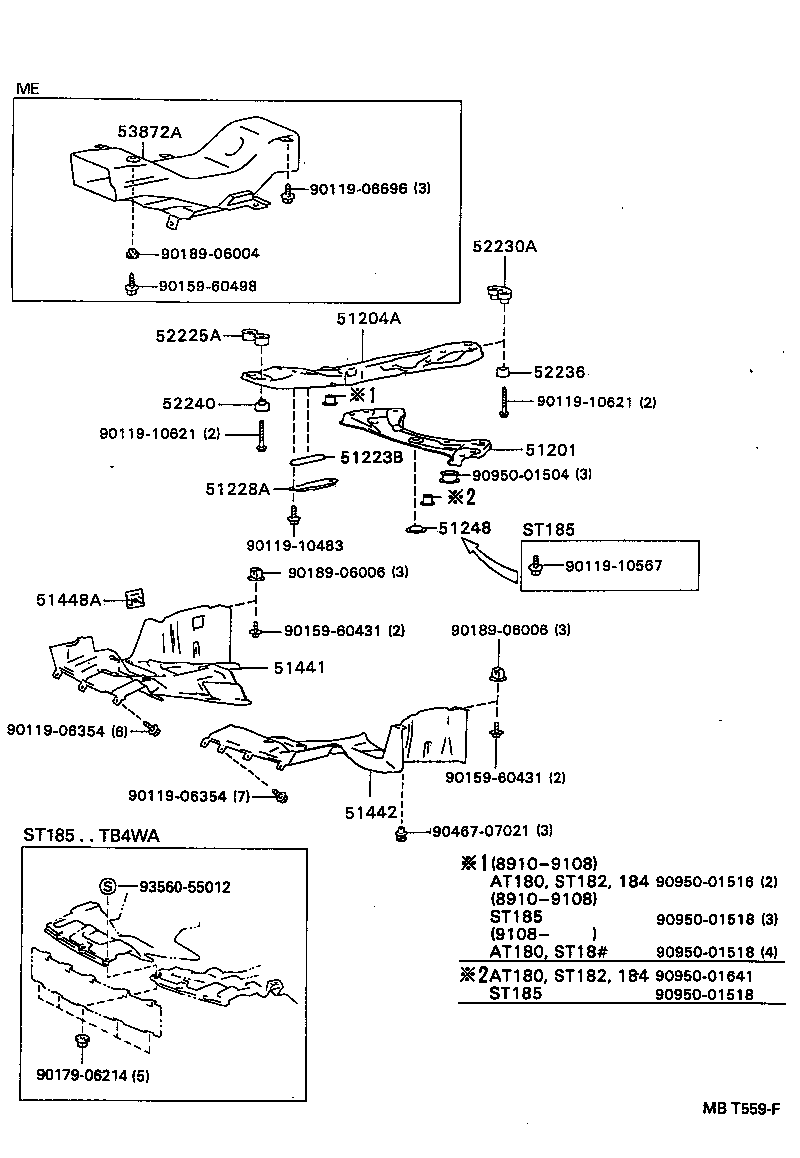

ILLUST NO. 1 OF 2(8910- )

Click highlighted areas on diagram

diagram 51201 51204A 51223B 51228A 51248 51441 51442 51448A 52225A 52230A 52236 52240 53872A 9011906354 9011906354 9011906696 9011910483 9011910567 9011910621 9011910621 9015960431 9015960431 9015960498 9017906214 9018906004 9018906006 9018906006 9046707021 9095001504 9095001516 9095001518 9095001518 9095001518 9095001641 9356055012
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20240

AT180,ST182,184

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20101

AT180,ST182,184

 1
51204-20100

AT180,ST182,184

 1
51223B - COVER, ENGINE MOUNTING HOLE
51223-20030

AT180,ST182,184

L=102.5

 2
51223-20020

AT180,ST182,184

L=102.5

 2
51223-20030

ST185..TBO4W;AT180,ST182,184

L=104

 2
51228A - WEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH
51228-20050

AT180,ST18#

 1
51248 - SPACER, FLAME CROSSMEMBER
51248-32010

AT180,ST182,184

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20230

AT180,ST184

 1
51441-20231

AT180,ST184

 1
51441-20231

AT180,ST184..NOB

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20230

ST184..ATM

 1
51442-20232

ST184..NOB..ATM

 1
51442-20232

ST184..ATM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

AT180,ST18#

 1
52225A - CUSHION, CENTER MEMBER MOUNTING, FRONT UPPER
52225-20040

AT180,ST182,184

 1
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-20050

AT180,ST182,184

 1
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-20040

AT180,ST182,184

 2
52240 - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER
52240-20040

AT180,ST182,184

 2
Common parts
90119-06354
90119-06696
90119-10483
90119-10567
90119-10621
90159-60431
90159-60498
90179-06214
90189-06004
90189-06006
90467-07021
90950-01504
90950-01516
90950-01518
90950-01641
93560-55012
