ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )AT180,ST182,184

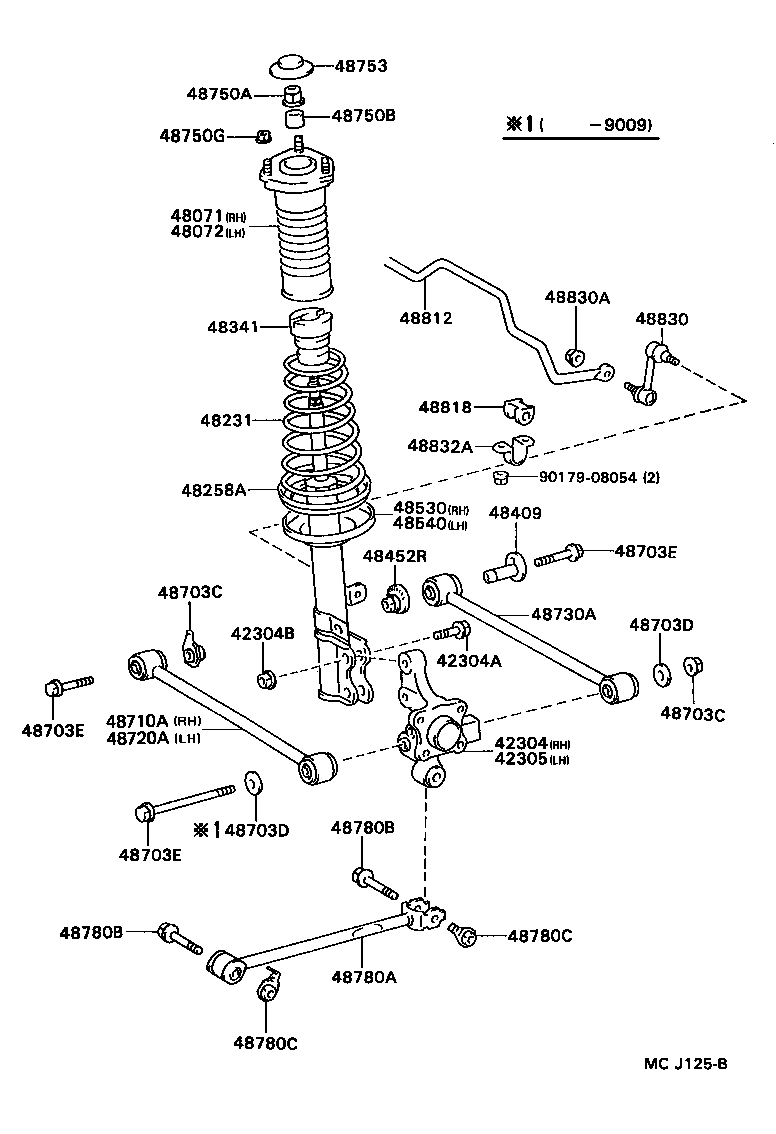

Click highlighted areas on diagram

diagram 42304 42304A 42304B 42305 48071 48072 48231 48258A 48341 48409 48452R 48530 48540 48703C 48703C 48703D 48703D 48703E 48703E 48703E 48710A 48720A 48730A 48750A 48750B 48750G 48753 48780A 48780B 48780B 48780C 48780C 48812 48818 48830 48830A 48832A 9017908054
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-20070

ST182,184

 1
42304-20090

ST184

W(*66)

 1
42304A - BOLT (FOR REAR AXLE CARRIER)
90105-15001

AT180,ST18#

 2
42304B - NUT (FOR REAR AXLE CARRIER)
90179-15001

AT180,ST18#

 2
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-20090

ST184

W(*66)

 1
42305-20070

ST182,184

 1
48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48071-20080

AT180,ST18#

 1
48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48072-20020

AT180,ST18#

 1
48231 - SPRING, COIL, REAR
48231-2B460

ST184..CP

 1
48231-2B450

AT180,ST184..CP

 1
48258A - INSULATOR, REAR COIL SPRING, LOWER
48258-32010

AT180,ST18#

 1
48341 - BUMPER, REAR SPRING
48341-20170

AT180,ST182,184

 1
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-20040

AT180,ST182,184

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-32020

AT180,ST182,184

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-20530

ST184..NOB

MARK 48530-20530

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-20530

ST184..NOB

MARK 48540-20530

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AT180,ST182,184

CARRIER SIDE

 2
90179-12063

AT180,ST182,184

BODY SIDE

 2
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AT180,ST182,184

CARRIER SIDE

 2
90179-12063

AT180,ST182,184

BODY SIDE

 2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90201-14017

AT180,ST182,184

 4
90201-14017

AT180,ST182,184

 2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90201-14017

AT180,ST182,184

 4
90201-14017

AT180,ST182,184

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-14068

AT180,ST182,184

*14-1.5PX258-19

 2
90105-12132

AT180,ST182,184

*12-1.25PX80-20

 2
90901-19001

AT180,ST182,184

*14-1.50PX260-26

 2
90109-12051

AT180,ST182,184

*12-1.25PX71.5-24

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-14068

AT180,ST182,184

*14-1.5PX258-19

 2
90105-12132

AT180,ST182,184

*12-1.25PX80-20

 2
90901-19001

AT180,ST182,184

*14-1.50PX260-26

 2
90109-12051

AT180,ST182,184

*12-1.25PX71.5-24

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-14068

AT180,ST182,184

*14-1.5PX258-19

 2
90105-12132

AT180,ST182,184

*12-1.25PX80-20

 2
90901-19001

AT180,ST182,184

*14-1.50PX260-26

 2
90109-12051

AT180,ST182,184

*12-1.25PX71.5-24

 2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-20130

ST182,184

 1
48710-20100

ST182,184

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-20130

ST182,184

 1
48710-20100

ST182,184

 1
48730A - ARM ASSY, REAR SUSPENSION, NO.2
48730-20070

ST182,184

 2
48730-20100

ST182,184

 2
48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90179-14015

AT180,ST18#

 1
48750B - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90387-15012

AT180,ST18#

 1
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08122

AT180,ST18#

 6
48753 - COVER, REAR SUSPENSION SUPPORT
48753-12010

ST185..TBO4W;AT180,ST182,184

 2
48780A - ROD ASSY, STRUT, REAR
48780-20020

AT180,ST182,184

 2
48780B - BOLT(FOR STRUT ROD)
90119-12131

AT180,ST18#

 4
48780B - BOLT(FOR STRUT ROD)
90119-12131

AT180,ST18#

 4
48780C - NUT(FOR STRUT ROD)
90179-12062

AT180,ST18#

CARRIER SIDE

 2
90179-12065

AT180,ST18#

BODY SIDE

 2
48780C - NUT(FOR STRUT ROD)
90179-12062

AT180,ST18#

CARRIER SIDE

 2
90179-12065

AT180,ST18#

BODY SIDE

 2
48812 - BAR, STABILIZER, REAR
48812-20460

AT180,ST184..NOB

 1
48812-20580

ST182;ST184..WIB;ST184..NOB..ATM

 1
48818 - BUSH, STABILIZER, REAR
48818-20220

ST182;ST184..WIB;ST184..NOB..ATM

 2
48818-20210

AT180,ST184..NOB

 2
48830 - LINK ASSY, REAR STABILIZER
48830-20010

AT180,ST18#

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

AT180,ST18#

 4
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-20070

AT180,ST182,184

 2
Common parts
90179-08054
