ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )ST184,185

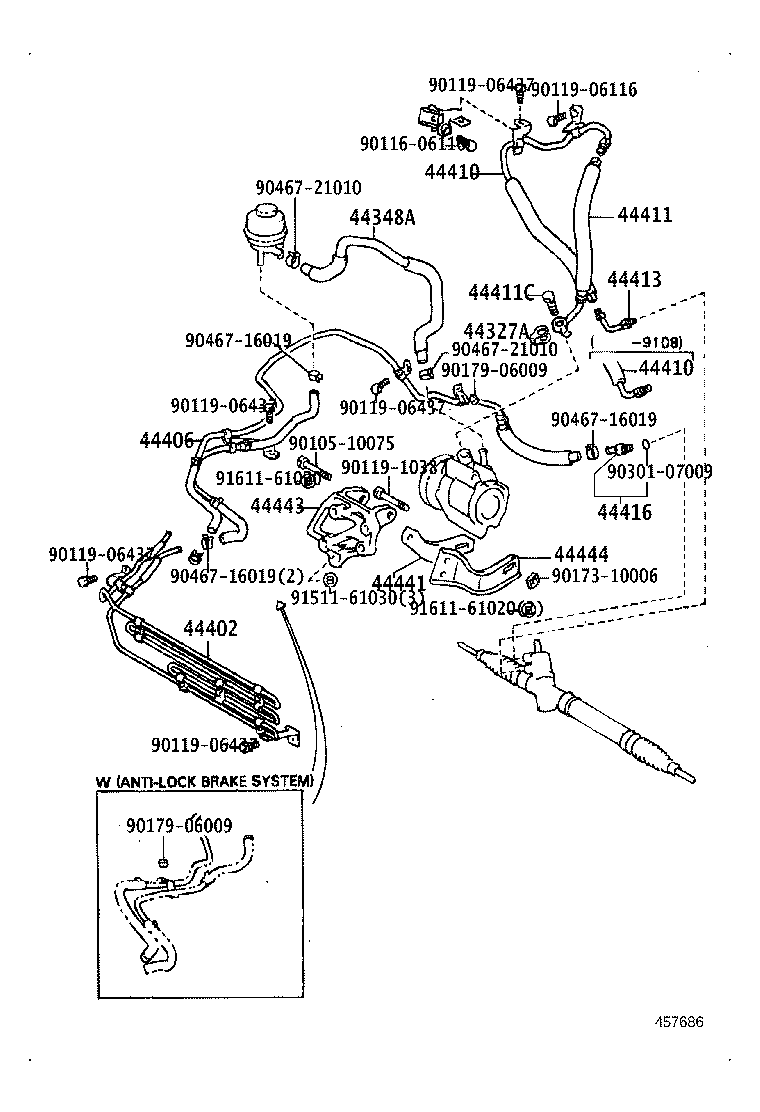

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT180,ST18# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20350 |
ST184 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-20350 |
ST18# |
1 | ||
| 44402-20380 |
ST182,184;ST185..TBO4W |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-20280 |
ST184,185 |
1 | ||
| 44406-20240 |
ST184,185 |
1 | ||
| 44406-20280 |
ST184 |
1 | ||
| 44406-20380 |
ST184,185 W(*66) |
1 | ||
| 44406-20370 |
ST184,185 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-20551 |
ST184 |
1 | ||
| 44410-20670 |
ST184,185 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-20551 |
ST184 |
1 | ||
| 44410-20670 |
ST184,185 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-20301 |
ST184 |
1 | ||
| 44411-20292 |
ST184,185 |
1 | ||
| 44411-20291 |
ST184,185 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16008 |
ST182,184;ST185..TBO4W |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-20080 |
ST184,185 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44420-17010 |
ST184,185 |
1 | ||
| 44416-20110 |
ST184,185 |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-32010 |
ST18# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
ST18# |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
ST18# |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90116-06110 | ||||
| 90119-06116 | ||||
| 90119-06437 | ||||
| 90119-10387 | ||||
| 90173-10006 | ||||
| 90179-06009 | ||||
| 90301-07009 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91511-61030 | ||||
| 91611-61020 | ||||
