ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )ATM

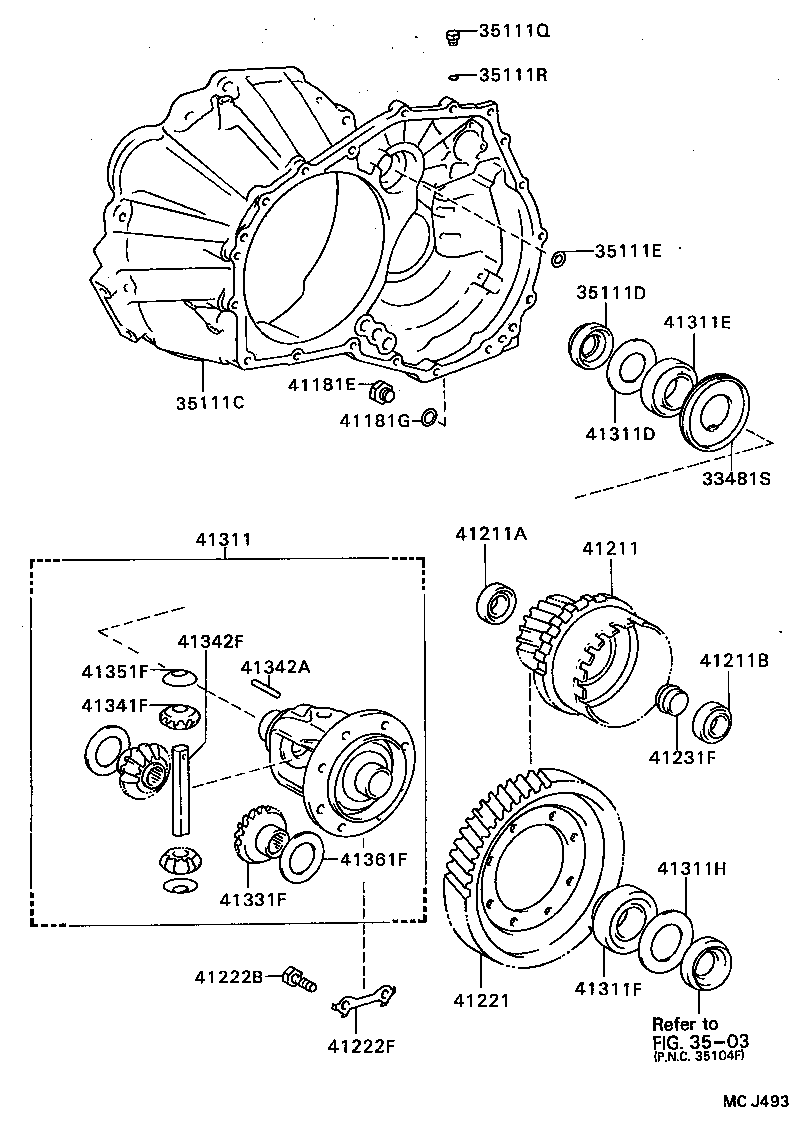

Click highlighted areas on diagram

A241L,A241E

diagram 33481S 3503 35111C 35111D 35111E 35111Q 35111R 41181E 41181G 41211 41211A 41211B 41221 41222B 41222F 41231F 41311 41311D 41311E 41311F 41311H 41331F 41341F 41342A 41342F 41351F 41361F
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-20140

ST184..ATM

 1
35111C - HOUSING, TRANSAXLE
35105-20020

ST184..ATM

 1
35105-20022

ST184..ATM

 1
35105-20023

ST184..ATM

 1
35105-20021

ST184..ATM

 1
35111D - SEAL, OIL (FOR TRANSAXLE HOUSING)
90311-35019

ST184..ATM

 1
35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
90210-13002

ST184..ATM

 1
35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING)
90341-08001

ST184..ATM

 1
35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
90301-06196

ST184..ATM

 1
41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN)
90341-18057

ST184..ATM

 1
41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
90430-18008

ST184..ATM

 1
41211 - PINION, DIFFERENTIAL DRIVE
41206-17030

ST184..ATM

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90366-30053

ST184..ATM

 1
90366-30036

ST184..ATM

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90366-30037

ST184..ATM

 1
90366-30054

ST184..ATM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-17030

ST184..ATM

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353

AT180;ST184..ATM

 8
90101-11353

ST184..ATM

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

ST182,184

 4
41222-20030

ST184..ATM

 4
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-17010

ST184..ATM

 1
41311 - CASE, FRONT DIFFERENTIAL
41301-20112

ST184..ATM

 1
41301-20110

ST184..ATM

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45015

ST184..ATM

T=2.60,MARK 15

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90368-40002

ST184..ATM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-44001

ST184..ATM

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-45004

ST184..ATM

T=2.00,MARK 01

 1
90201-45005

ST184..ATM

T=2.05,MARK 02

 1
90201-45012

ST184..ATM

T=2.40,MARK 09

 1
90201-45010

ST184..ATM

T=2.30,MARK 07

 1
90201-45008

ST184..ATM

T=2.20,MARK 05

 1
90201-45013

ST184..ATM

T=2.45,MARK 10

 1
90201-45009

ST184..ATM

T=2.25,MARK 06

 1
90201-45011

ST184..ATM

T=2.35,MARK 08

 1
90201-45014

ST184..ATM

T=2.50,MARK 11

 1
90201-45015

ST184..ATM

T=2.55,MARK 12

 1
90201-45007

ST184..ATM

T=2.15,MARK 04

 1
90201-45006

ST184..ATM

T=2.10,MARK 03

 1
90201-45018

ST184..ATM

T=2.70,MARK 15

 1
90201-45016

ST184..ATM

T=2.60,MARK 13

 1
90201-45019

ST184..ATM

T=2.75,MARK 16

 1
90201-45020

ST184..ATM

T=2.80,MARK 17

 1
90201-45021

ST184..ATM

T=2.85,MARK 18

 1
90201-45017

ST184..ATM

T=2.65,MARK 14

 1
90201-45022

ST184..ATM

T=2.90,MARK 19

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

ST182,184

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-22030

ST182,184

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AT180,ST182,184

 1
90250-06058

ST182,184

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

ST182,184

 1
41342-20050

ST182,184

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ST182,184

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-17040

ST184..ATM

T=1.10

 2
41361-17030

ST184..ATM

T=1.05

 2
41361-17010

ST184..ATM

T=0.95

 2
41361-17050

ST184..ATM

T=1.15

 2
41361-17060

ST184..ATM

T=1.20

 2
41361-17020

ST184..ATM

T=1.00

 2
Linked diagrams
3503
