ST184R-BCPSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

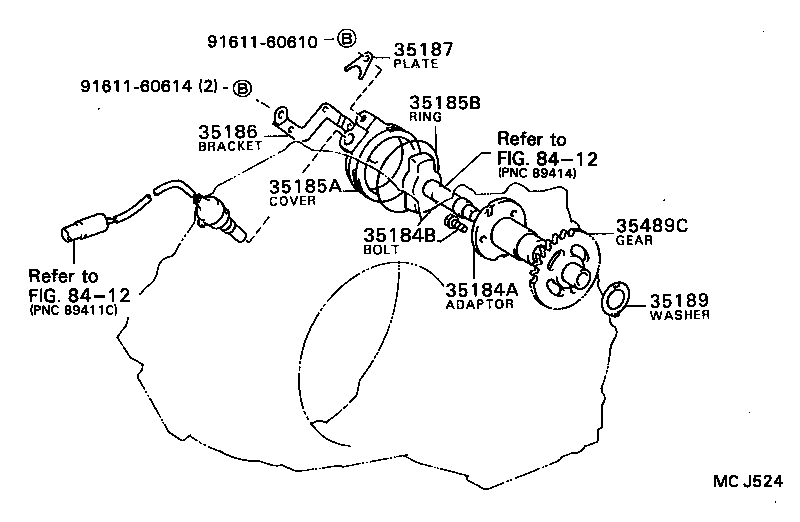

(9108- )ATM
Click highlighted areas on diagram
A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35184A - ADAPTER, SENSOR ROTOR | ||||
| 35184-12010 |
ST184..ATM |
1 | ||
| 35184B - BOLT(FOR SENSOR ROTOR ADAPTER) | ||||
| 90105-06053 |
ST184..ATM |
3 | ||
| 35185A - COVER, SPEED SENSOR | ||||
| 35185-12010 |
ST184..ATM |
1 | ||
| 35185B - RING, O (FOR SPEED SENSOR COVER) | ||||
| 90301-68001 |
ST184..ATM |
1 | ||
| 35186 - BRACKET, SPEED SENSOR COVER | ||||
| 35186-12010 |
ST184..ATM |
1 | ||
| 35187 - PLATE, SPEED SENSOR LOCK | ||||
| 35187-12010 |
ST184..ATM |
1 | ||
| 35189 - WASHER, GOVERNOR THRUST, NO.1 | ||||
| 35189-12010 |
ST184..ATM |
1 | ||
| 35489C - GEAR, GOVERNOR DRIVEN | ||||
| 35489-12010 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 8412 | ||||

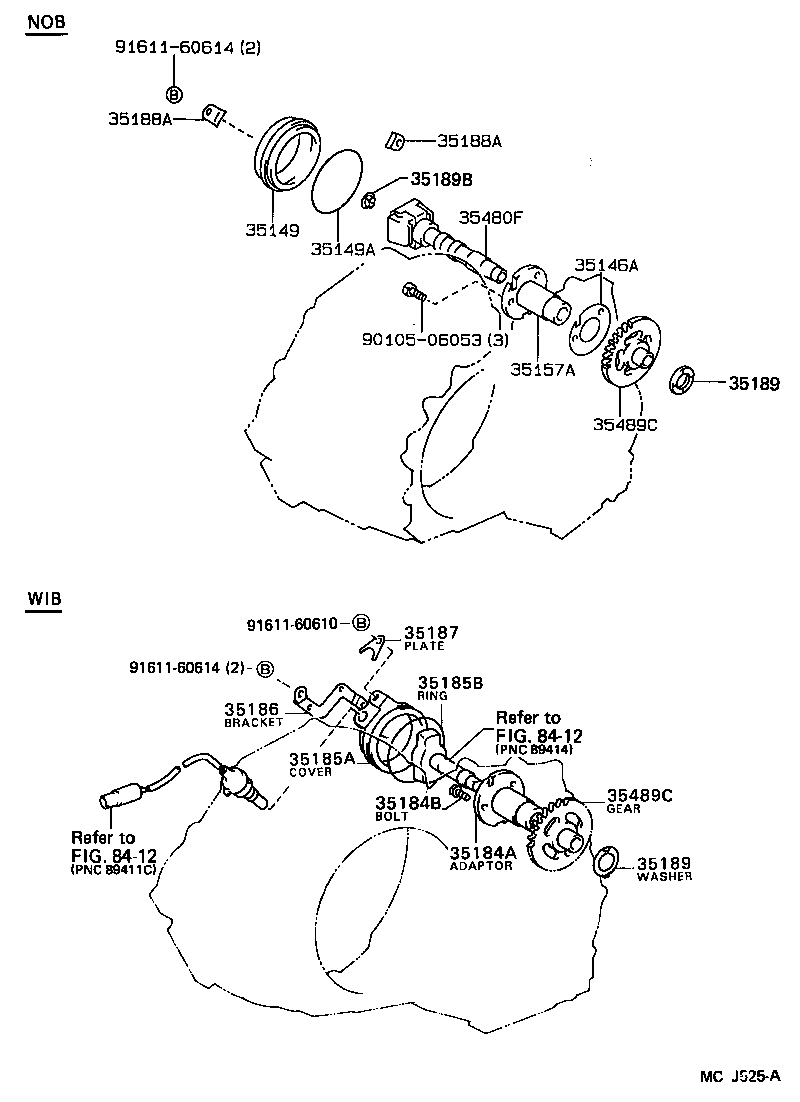

(8910-9108)ATM
Click highlighted areas on diagram
A241L,A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35146A - GASKET, GOVERNOR BODY | ||||
| 35146-20010 |
ST184..NOB..ATM |
1 | ||
| 35149 - COVER, GOVERNOR | ||||
| 35149-20010 |
ST184..NOB..ATM |
1 | ||
| 35149A - RING, O (FOR GOVERNOR COVER) | ||||
| 90301-68001 |
ST184..NOB..ATM |
1 | ||
| 35157A - ADAPTER, GOVERNOR BODY | ||||
| 35157-20031 |
ST184..NOB..ATM |
1 | ||
| 35184A - ADAPTER, SENSOR ROTOR | ||||
| 35184-12010 |
ST184..ATM |
1 | ||
| 35184B - BOLT(FOR SENSOR ROTOR ADAPTER) | ||||
| 90105-06053 |
ST184..ATM |
3 | ||
| 35185A - COVER, SPEED SENSOR | ||||
| 35185-12010 |
ST184..ATM |
1 | ||
| 35185B - RING, O (FOR SPEED SENSOR COVER) | ||||
| 90301-68001 |
ST184..ATM |
1 | ||
| 35186 - BRACKET, SPEED SENSOR COVER | ||||
| 35186-12010 |
ST184..ATM |
1 | ||
| 35187 - PLATE, SPEED SENSOR LOCK | ||||
| 35187-12010 |
ST184..ATM |
1 | ||
| 35188A - BRACKET, GOVERNOR COVER | ||||
| 35188-20010 |
ST184..NOB..ATM |
2 | ||
| 35188A - BRACKET, GOVERNOR COVER | ||||
| 35188-20010 |
ST184..NOB..ATM |
2 | ||
| 35189 - WASHER, GOVERNOR THRUST, NO.1 | ||||
| 35189-12010 |
ST184..ATM |
1 | ||
| 35189 - WASHER, GOVERNOR THRUST, NO.1 | ||||
| 35189-12010 |
ST184..ATM |
1 | ||
| 35189B - WASHER, GOVERNOR THRUST, NO.2 | ||||
| 35189-32011 |
ST184..NOB..ATM |
1 | ||
| 35480F - BODY ASSY, GOVERNOR | ||||
| 35480-20021 |
ST184..NOB..ATM |
1 | ||
| 35489C - GEAR, GOVERNOR DRIVEN | ||||
| 35489-12010 |
ST184..ATM |
1 | ||
| 35489C - GEAR, GOVERNOR DRIVEN | ||||
| 35489-12010 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 90105-06053 | ||||
| 91611-60610 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 8412 | ||||
