ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )ATM

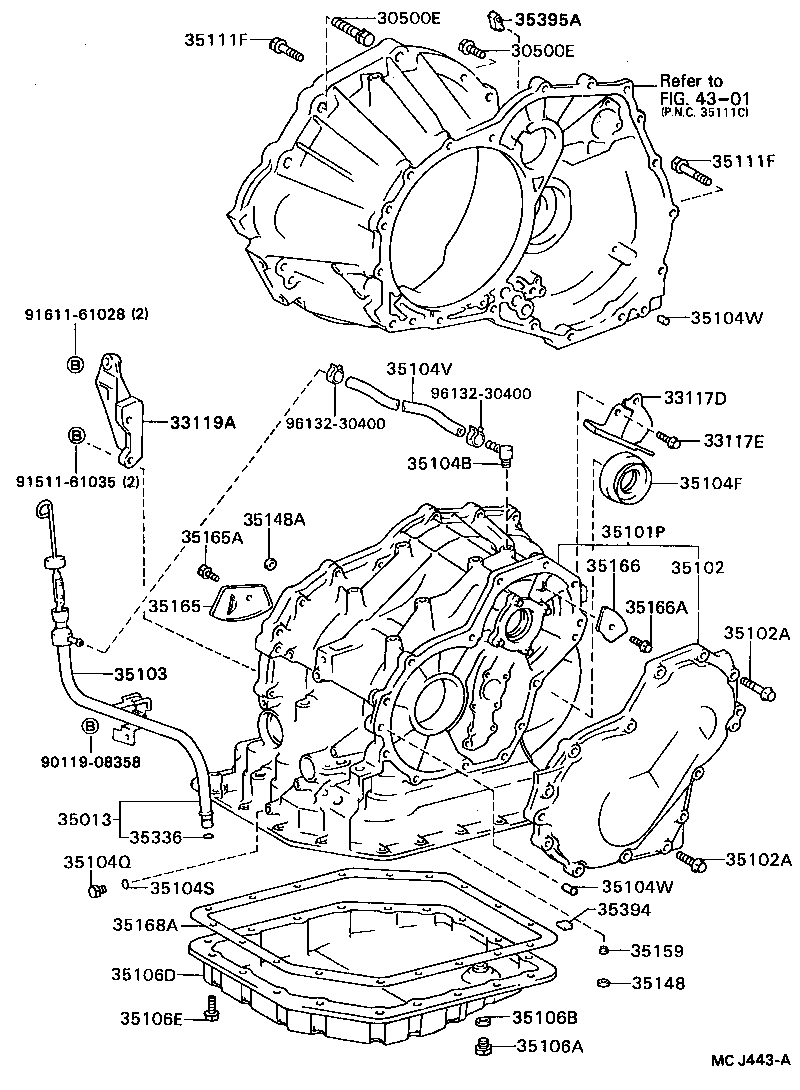

Click highlighted areas on diagram

A241L,A241E

diagram 30500E 30500E 33117D 33117E 33119A 35013 35101P 35102 35102A 35102A 35103 35104B 35104F 35104Q 35104S 35104V 35104W 35104W 35106A 35106B 35106D 35106E 35111F 35111F 35148 35148A 35159 35165 35165A 35166 35166A 35168A 35336 35394 35395A 4301 9011908358 9151161035 9161161028 9613230400 9613230400
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91651-41022

ST184..ATM

*10-1.25PX22-22

 1
91619-61245

ST184..ATM

*12-1.25PX45-30

 3
90105-10077

ST184..ATM

*10-1.25PX43-26

 1
90105-08040

ST184..ATM

*8-1.25PX18-15

 1
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91651-41022

ST184..ATM

*10-1.25PX22-22

 1
91619-61245

ST184..ATM

*12-1.25PX45-30

 3
90105-10077

ST184..ATM

*10-1.25PX43-26

 1
90105-08040

ST184..ATM

*8-1.25PX18-15

 1
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-12030

ST184..ATM

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

ST184..ATM

 2
33119A - PLATE, STIFFENER, LH(ATM)
33119-32020

ST184..ATM

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-20500

ST184..ATM

 1
35013-20460

ST184..ATM

 1
35013-20490

ST184..ATM

W(CRUISE CONTROL)

 1
35101P - CASE & COVER SUB-ASSY, TRANSAXLE
35101-20031

ST184..ATM

 1
35101-20030

ST184..ATM

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-20030

ST184..ATM

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08068

ST184..ATM

*8-1.25PX35-30

 3
90105-08065

ST184..ATM

*8-1.25PX45-35

 10
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08068

ST184..ATM

*8-1.25PX35-30

 3
90105-08065

ST184..ATM

*8-1.25PX45-35

 10
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-20180

ST184..ATM

 1
35103-20230

ST184..ATM

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03101

ST184..ATM

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-35020

ST184..ATM

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

ST184..ATM

 1
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

ST184..ATM

 1
35104V - HOSE (FOR BREATHER PLUG)
90447-11018

ST184..ATM

 1
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10007

ST184..ATM

HOUSING SIDE

 2
90250-10021

ST184..ATM

HOUSING SIDE

 2
90250-11001

ST184..ATM

RR COVER SIDE

 2
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10007

ST184..ATM

HOUSING SIDE

 2
90250-10021

ST184..ATM

HOUSING SIDE

 2
90250-11001

ST184..ATM

RR COVER SIDE

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10006

ST184..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

ST184..ATM

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-12070

ST184..ATM

 1
35106-12050

ST184..ATM

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

ST184..ATM

 18
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08065

ST184..ATM

*8-1.25PX45-35

 10
90105-08066

ST184..ATM

*8-1.25PX72-30

 2
90105-08068

ST184..ATM

*8-1.25PX35-30

 5
90105-08071

ST184..ATM

*8-1.25PX30-25

 2
90105-08082

ST184..NOB..ATM

*8-1.25PX48-30

 1
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08065

ST184..ATM

*8-1.25PX45-35

 10
90105-08066

ST184..ATM

*8-1.25PX72-30

 2
90105-08068

ST184..ATM

*8-1.25PX35-30

 5
90105-08071

ST184..ATM

*8-1.25PX30-25

 2
90105-08082

ST184..NOB..ATM

*8-1.25PX48-30

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

ST184..ATM

 1
35148A - GASKET, GOVERNOR APPLY, NO.2
35148-12010

ST184..ATM

 2
35148-12010

ST184..NOB..ATM

 3
35159 - GASKET, BRAKE DRUM
35159-20010

ST184..ATM

 1
35165 - PLATE, TRANSMISSION CASE, NO.1
35165-20010

ST184..ATM

 1
35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1)
90105-06049

ST184..ATM

 1
35166 - PLATE, TRANSMISSION CASE, NO.3
35166-12010

ST184..ATM

 1
35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3)
90105-06049

ST184..ATM

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-12020

ST184..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

ST184..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

ST184..ATM

 2
35394-30011

ST184..ATM

 3
35395A - STRAINER, GOVERNOR OIL
35395-12020

ST184..NOB..ATM

 1
Common parts
90119-08358
91511-61035
91611-61028
96132-30400
Linked diagrams
4301
