ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )ATM

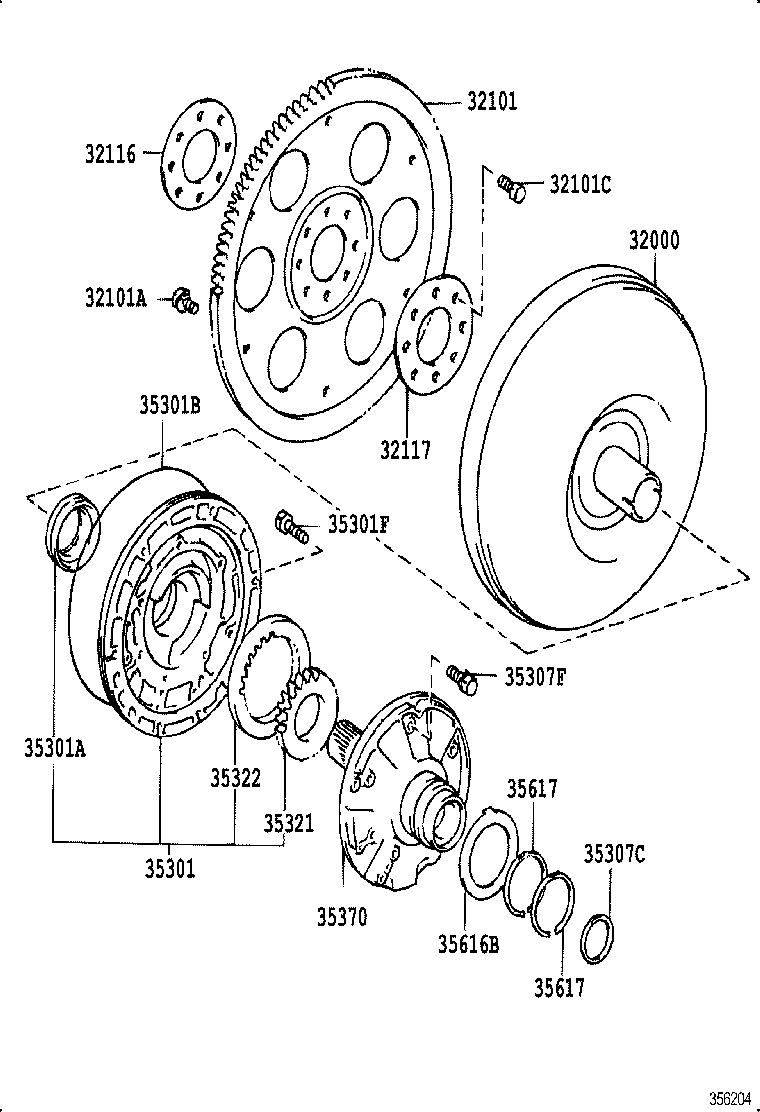

Click highlighted areas on diagram

A241L,A241E

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307C 35307F 35321 35322 35370 35616B 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-20210

ST184..ATM

 1
32000-32051

ST184..NOB..ATM

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-32050

ST184..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

ST184..ATM

*8-1.25PX12-8

 5
90109-08113

ST184..ATM

*8-1.25PX12-8.4

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90109-10054

ST184..ATM

*10-1.25PX22-16

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-32011

ST184..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-32010

ST184..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35035-12010

ST184..ATM

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

ST184..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99024

ST184..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08198

ST184..ATM

*8-1.25PX28-28

 6
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-32030

ST184..ATM

T=1.4

 1
35789-32020

ST184..ATM

T=0.8

 1
35307F - BOLT (FOR STATOR SHAFT)
90119-06180

ST184..ATM

 11
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12020

ST184..ATM

T=10.690-10.699

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-35010

ST184..ATM

T=10.690-10.740

 1
35370 - SHAFT ASSY, STATOR
35370-12040

ST184..ATM

 1
35370-32022

ST184..ATM

 1
35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
35616-32010

ST184..ATM

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32011

ST184..ATM

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32011

ST184..ATM

 2
