ST184R-BCPSKQ (1989)
Toyota Celica
(8910- )ATM
A241L,A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-20030 |
ST184..ATM |
1 | ||
| 33570-20031 |
ST184..ATM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20300 |
ST184..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-20340 |
AT180,ST18# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20640 |
ST184..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01568 |
ST184..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01560 |
ST184..ATM |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01562 |
ST184..ATM |
1 | ||
| 33821K - CLAMP, NO.3 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01563 |
ST184..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20060 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 90119-06231 | ||||
| 90159-60025 | ||||
| 90179-06214 | ||||
| 90179-08061 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60816 | ||||
| 93560-15020 | ||||
| 94110-40600 | ||||

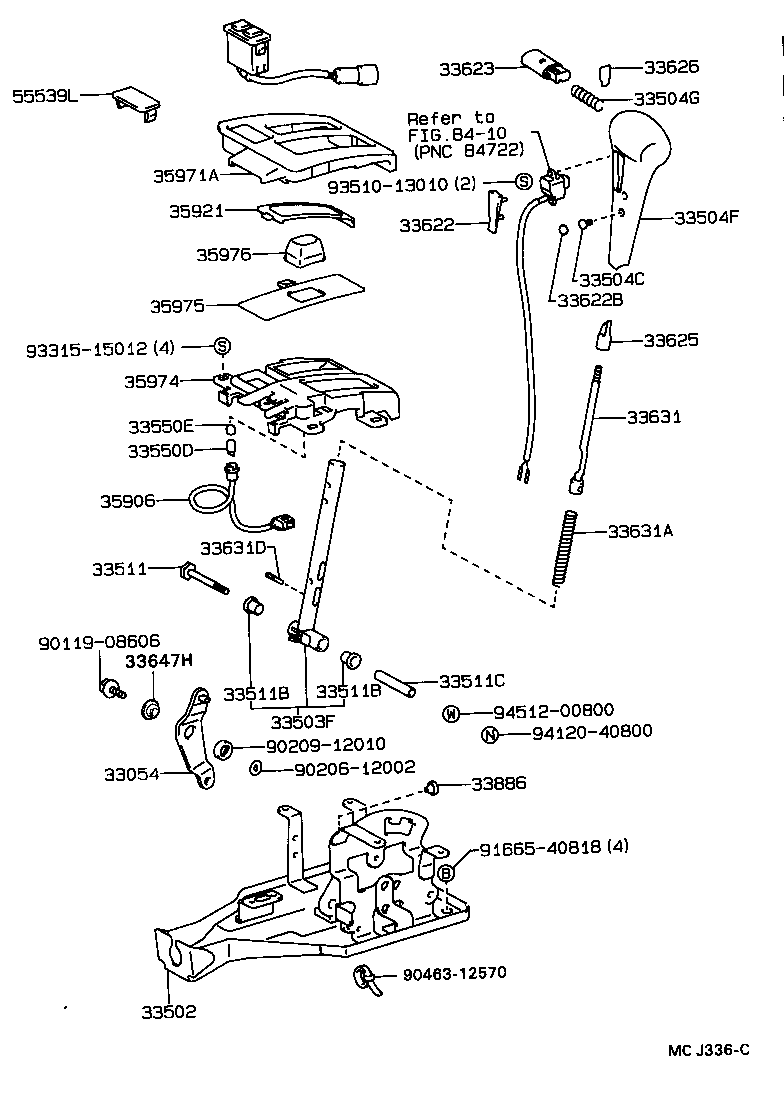

(8910- )ATM
A241L,A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-20060 |
ST184..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-20300 |
ST184..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-20470 |
ST184..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
ST184..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2012004 |
ST184..ATM DARK BLUE,TRIM8# |
1 | ||
| 33542-2012003 |
ST184..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33542-20120C0 |
ST184..ATM BLACK,TRIM1#,8# |
1 | ||
| 33542-2012101 |
ST184..ATM BLACK,TRIM1#,8# |
1 | ||
| 33542-2012103 |
ST184..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33542-2012101 |
ST184..ATM BLACK,TRIM8# |
1 | ||
| 33504G - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB) | ||||
| 90501-06060 |
ST184..ATM |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-32020 |
ST184..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
ST184..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11012 |
ST184..ATM |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08091 |
ST184..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
ST184..ATM 12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
ST184..ATM |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-2003003 |
ST184..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33622B - PLUG, SHIFT LEVER KNOB | ||||
| 33622-2005004 |
ST184..NOB..ATM DARK BLUE |
2 | ||
| 33622-2005003 |
ST184..ATM SHADOW GRAY,TRIM1# |
2 | ||
| 33622-2005003 |
ST184..CP..ATM SHADOW GRAY |
2 | ||
| 33622-2005004 |
ST184..ATM DARK BLUE,TRIM8# |
2 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-2004003 |
ST184..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33623-2004004 |
ST184..ATM DARK BLUE,TRIM8# |
1 | ||
| 33623-2004101 |
ST184..ATM BLACK,TRIM8# |
1 | ||
| 33623-2004101 |
ST184..ATM BLACK,TRIM1#,8# |
1 | ||
| 33623-2004103 |
ST184..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-20020 |
ST184..ATM |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-20010 |
ST184..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20120 |
ST184..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-06061 |
ST184..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04007 |
ST184..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-12029 |
ST184..ATM |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
ST184..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20040 |
ST184..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20280 |
ST184..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20180 |
ST184..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-20120 |
ST184..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20100 |
ST184..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-20030 |
ST184..ATM |
1 | ||
| 55539L - COVER, SPARE SWITCH HOLE | ||||
| 55539-22100 |
ST184..NOB..ATM |
1 | ||
| 55539-22100 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 90119-08606 | ||||
| 90206-12002 | ||||
| 90209-12010 | ||||
| 90463-12570 | ||||
| 91665-40818 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8410 | ||||
