ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )5SFE

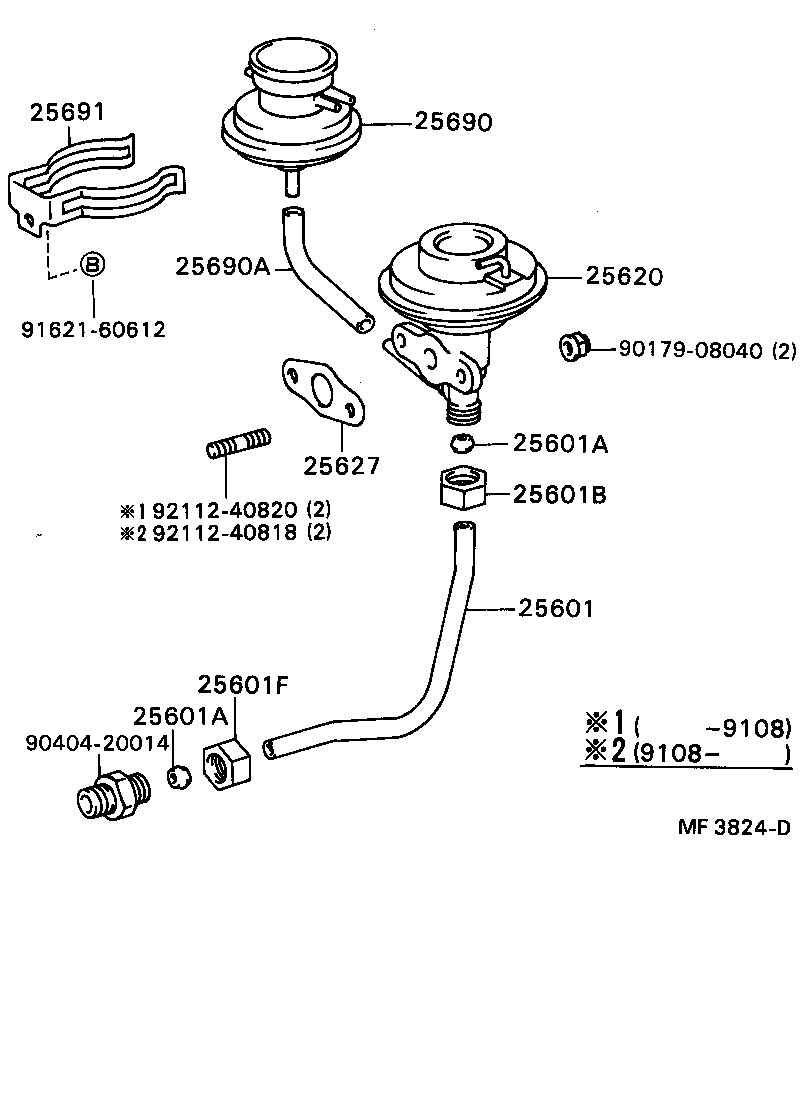

Click highlighted areas on diagram

diagram 25601 25601A 25601A 25601B 25601F 25620 25627 25690 25690A 25691 9017908040 9040420014 9162160612 9211240818 9211240820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-74030

5SFE..ST184

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

5SFE..ST184

 2
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

5SFE..ST184

 2
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20073

5SFE..ST184

 1
90402-20009

3SGTE,5SFE..ST184,185

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90402-20073

5SFE..ST184

 1
25620 - VALVE ASSY, EGR
25620-74211

5SFE..ST184..ATM

 1
25620-74210

5SFE..ST184..ATM

 1
25620-74260

5SFE..ST184..ATM

 1
25627 - GASKET, EGR VALVE
25627-74011

5SFE..ST184

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-74090

5SFE..ST184

 1
25870-74100

5SFE..ST184..ATM

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11065

5SFE..ST184

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-74040

5SFE..ST184

 1
Common parts
90179-08040
90404-20014
91621-60612
92112-40818
92112-40820
