ST184R-BCPSKQ (1989)
Toyota Celica
(8910- )5SFE..ATM ; (8912- )3SGE
12V 70A

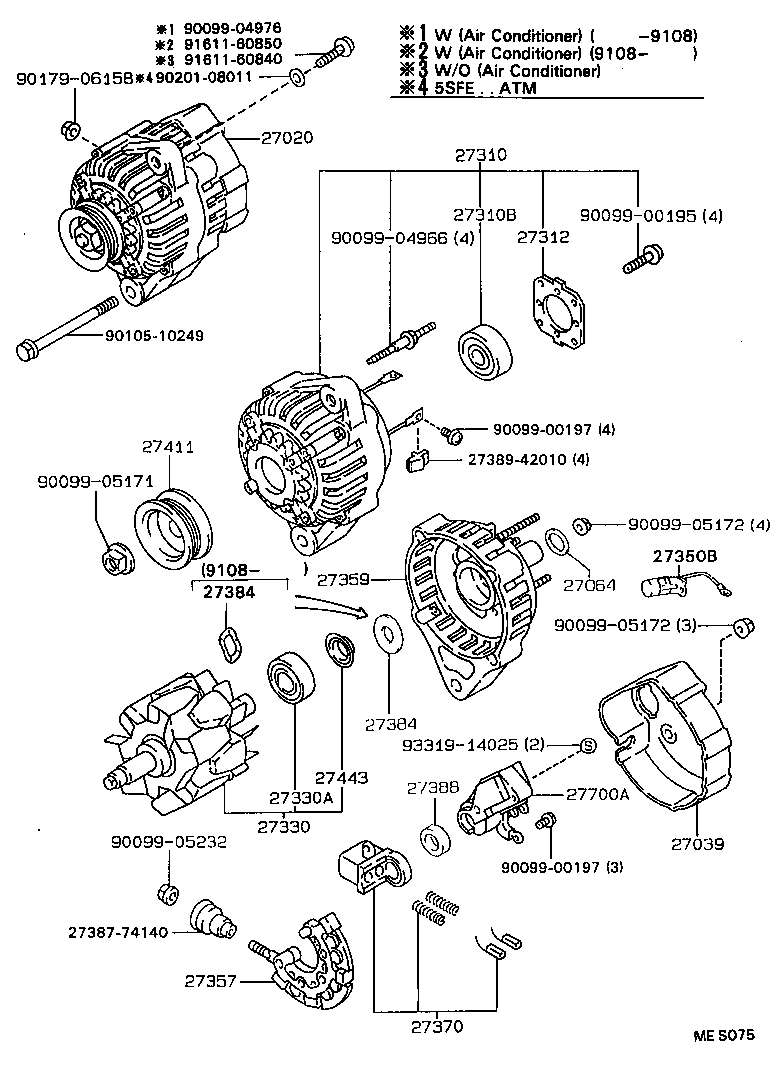

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-74290 |
3SGE..ST182;5SFE..ST184..ATM 12V 80A |
1 | ||
| 27060-74150 |
5SFE..ST184..ATM 12V 70A |
1 | ||
| 27060-74291 |
3SGE..ST182;5SFE..ST184..ATM 12V 80A |
1 | ||
| 27060-74460 |
3SGE..ST182;5SFE..ST184..ATM 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-74140 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27039-74390 |
3SGE..ST182;5SFE..ST184..ATM |
1 | ||
| 27039-74140 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27064-42010 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-42050 |
5SFE..ST184..ATM |
1 | ||
| 27310-74120 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
5SFE..ST184..ATM |
1 | ||
| 90099-10192 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27312-42010 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42010 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27330-42010 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27330-76030 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AFE,3SG#,5SFE..AT180,ST18# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74140 |
3SGE..ST182;5SFE..ST184..ATM |
1 | ||
| 27357-74260 |
3SGE..ST182;5SFE..ST184..ATM |
1 | ||
| 27357-74140 |
5SFE..ST184..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74140 |
5SFE..ST184..ATM |
1 | ||
| 27359-74140 |
3SGE..ST182;5SFE..ST184..ATM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-42010 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27370-75060 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27370-42010 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27384-50030 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27384-42010 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27384-50030 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27384-42010 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27388-42010 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
5SFE..ST184..ATM |
1 | ||
| 27411-42030 |
3SGE..ST182;5SFE..ST184..ATM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AFE,3SG#,5SFE..AT180,ST18# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
3SGTE..ST185;5SFE..ST184..ATM |
1 | ||
| 27700-46030 |
3SG#,5SFE..ST18# |
1 | ||
| 27700-74030 |
3SGE,5SFE..ST182,184 |
1 | ||
| 27700-16010 |
3SGTE,5SFE..ST184,185 |
1 | ||
| 27700-46030 |
3SG#..ST182,185;5SFE..ST184..ATM |
1 | ||
| 27700-16010 |
3SG#,5SFE..ST18# |
1 | ||
| Common parts | ||||
| 27387-74140 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-04976 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10249 | ||||
| 90179-06158 | ||||
| 90201-08011 | ||||
| 91611-60840 | ||||
| 91611-60850 | ||||
| 93319-14025 | ||||
