ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910-9108)5SFE

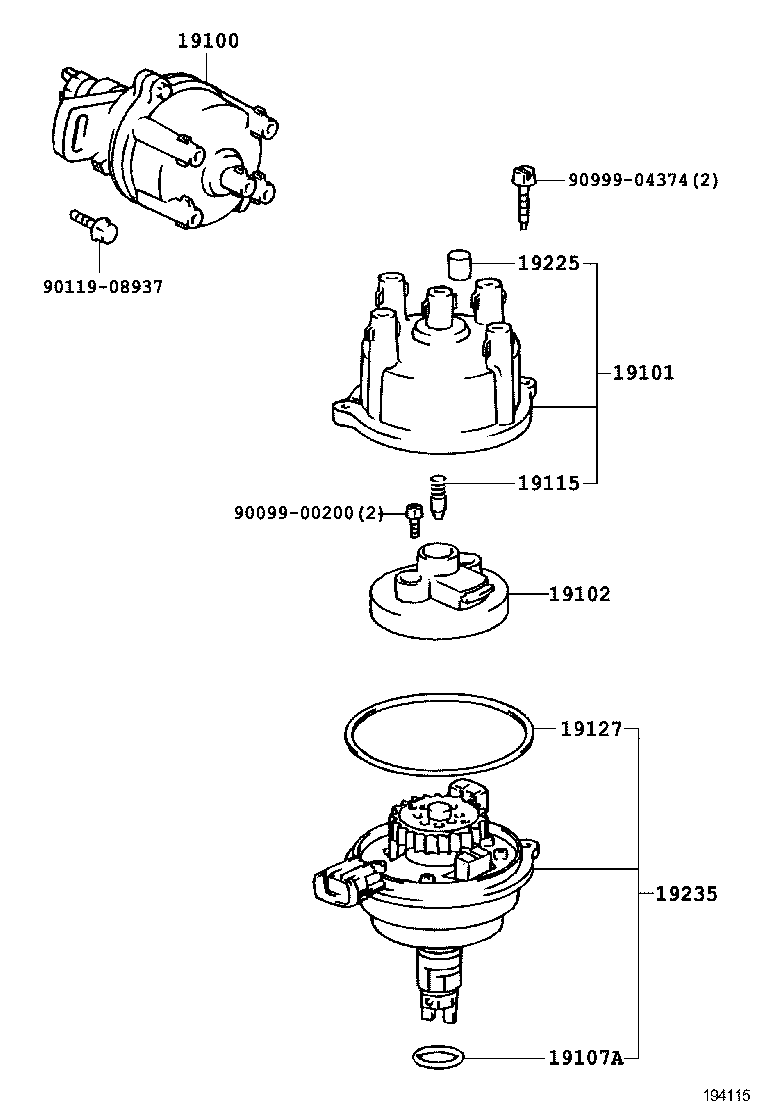

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19127 19225 19235 9009900200 9011908937 9099904374
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19050-74020

5SFE..ST184

 1
19100-74050

5SFE..ST184

 1
19050-74050

5SFE..ST184

 1
19100-74060

5SFE..ST184

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74090

5SFE..ST184

 1
19101-74110

5SFE..ST184

 1
19101-74180

5SFE..ST184

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

5SFE..ST184

 1
19102-74040

3SG#,5SFE..ST18#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091

5SFE..ST184

 1
90099-14091

5SFE..ST184

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

3SG#,5SFE..ST18#

 1
19115-63010

5SFE..ST184

 2
19127 - PACKING, DUST PROOF
19127-74050

5SFE..ST184

 1
19127-74040

3SG#,5SFE..ST18#

 1
19225 - CAP, RUBBER
19225-74060

5SFE..ST184

 1
19235 - HOUSING, DISTRIBUTOR
19235-74110

5SFE..ST184

 1
19235-74180

5SFE..ST184

 1
19235-74070

5SFE..ST184

 1
19235-74210

5SFE..ST184

 1
Common parts
90099-00200
90119-08937
90999-04374

(9108- )5SFE

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19115 19121 19127 19133 19144 19235 19500B 9009900957 9009900966 9009904374 9009905179 9011908937
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19050-74020

5SFE..ST184

 1
19100-74050

5SFE..ST184

 1
19050-74050

5SFE..ST184

 1
19100-74060

5SFE..ST184

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74090

5SFE..ST184

 1
19101-74110

5SFE..ST184

 1
19101-74180

5SFE..ST184

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

5SFE..ST184

 1
19102-74040

3SG#,5SFE..ST18#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091

5SFE..ST184

 1
90099-14091

5SFE..ST184

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

3SG#,5SFE..ST18#

 1
19115-63010

5SFE..ST184

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

3SG#,5SFE..ST18#

 1
19115-63010

5SFE..ST184

 2
19121 - COVER, DUST PROOF
19121-11080

5SFE..ST184

 1
19127 - PACKING, DUST PROOF
19127-74050

5SFE..ST184

 1
19127-74040

3SG#,5SFE..ST18#

 1
19133 - CONDENSER, DISTRIBUTOR
19133-16240

5SFE..ST184

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-74100

5SFE..ST184

 1
19235 - HOUSING, DISTRIBUTOR
19235-74110

5SFE..ST184

 1
19235-74180

5SFE..ST184

 1
19235-74070

5SFE..ST184

 1
19235-74210

5SFE..ST184

 1
19500B - COIL ASSY, IGNITION
90919-02163

5SFE..ST184

 1
Common parts
90099-00957
90099-00966
90099-04374
90099-05179
90119-08937
