ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

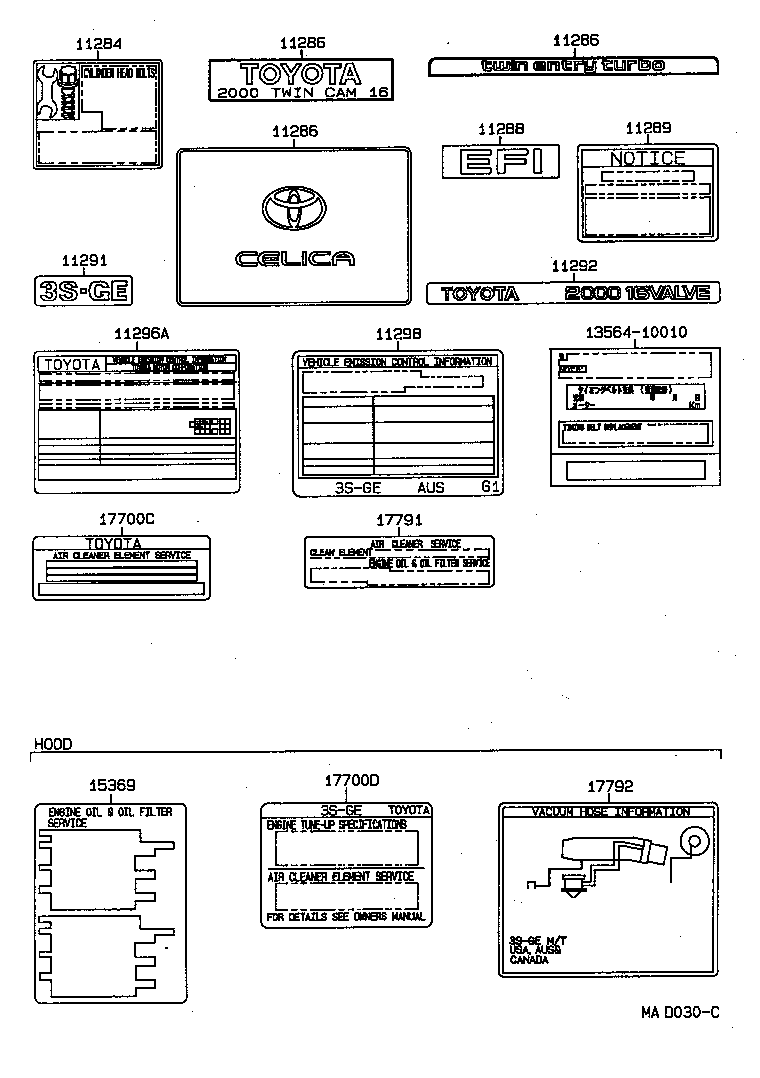

Click highlighted areas on diagram

diagram 11284 11286 11286 11286 11288 11289 11291 11292 11296A 11298 1356410010 15369 17700C 17700D 17791 17792
Part # Description Qty Price
11284 - PLATE, ENGINE BOLT INFORMATION
11284-74040

5SFE..ST184

 1
11284-74050

5SFE..ST184

 1
11284-74040

5SFE..ST184

 1
11288 - PLATE, ENGINE SYSTEM
11288-74020

5SFE..ST184

 1
11288-74040

5SFE..ST184

 1
11288-74041

5SFE..ST184

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-73020

3SGTE,5SFE..ST184,185

 1
11292 - PLATE, ENGINE NAME, NO.2
11292-74060

5SFE..ST184

 1
11292-74130

5SFE..ST184

 1
11292-74120

5SFE..ST184

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-74490

5SFE..ST184

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
90917-07118

5SFE..ST184

 1
17791 - LABEL, MAINTENANCE INFORMATION
90917-07118

5SFE..ST184

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-74240

5SFE..ST184..ATM

 1
17792-74360

5SFE..ST184

 1
Common parts
13564-10010
