ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

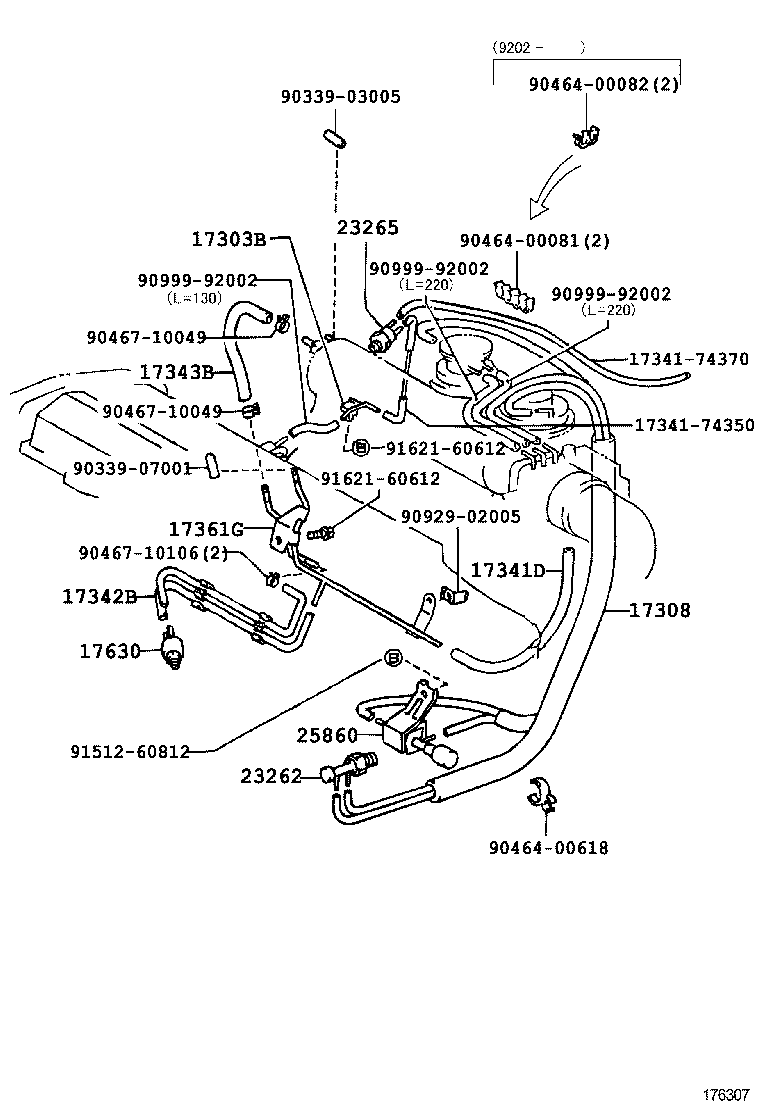

(9108- )5SFE

Click highlighted areas on diagram

diagram 17303B 17308 1734174350 1734174370 17341D 17342B 17343B 17361G 17630 23262 23265 25860 9033903005 9033907001 9046400081 9046400082 9046400618 9046710049 9046710049 9046710106 9092902005 9099992002 9099992002 9099992002 9151260812 9162160612 9162160612
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-74040

5SFE..ST184

 1
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74100

5SFE..ST184

 1
17308-74131

5SFE..ST184

 1
17308-74130

5SFE..ST184

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74040

5SFE..ST184

 1
17341-74340

5SFE..ST184

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

5SFE..ST184

 2
17343-74100

5SFE..ST184

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74040

5SFE..ST184

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74100

5SFE..ST184

 1
17361-74030

5SFE..ST184

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SG#,5SFE..ST18#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

3SGTE,5SFE..ST184,185

 1
23265 - FILTER, GAS, NO.1
90917-11032

5SFE..ST184

 1
90917-11023

5SFE..ST184

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74050

5SFE..ST184

 1
Common parts
17341-74350
17341-74370
90339-03005
90339-07001
90464-00081
90464-00082
90464-00618
90467-10049
90467-10106
90929-02005
90999-92002
91512-60812
91621-60612

(8910- )3SG#,5SFE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

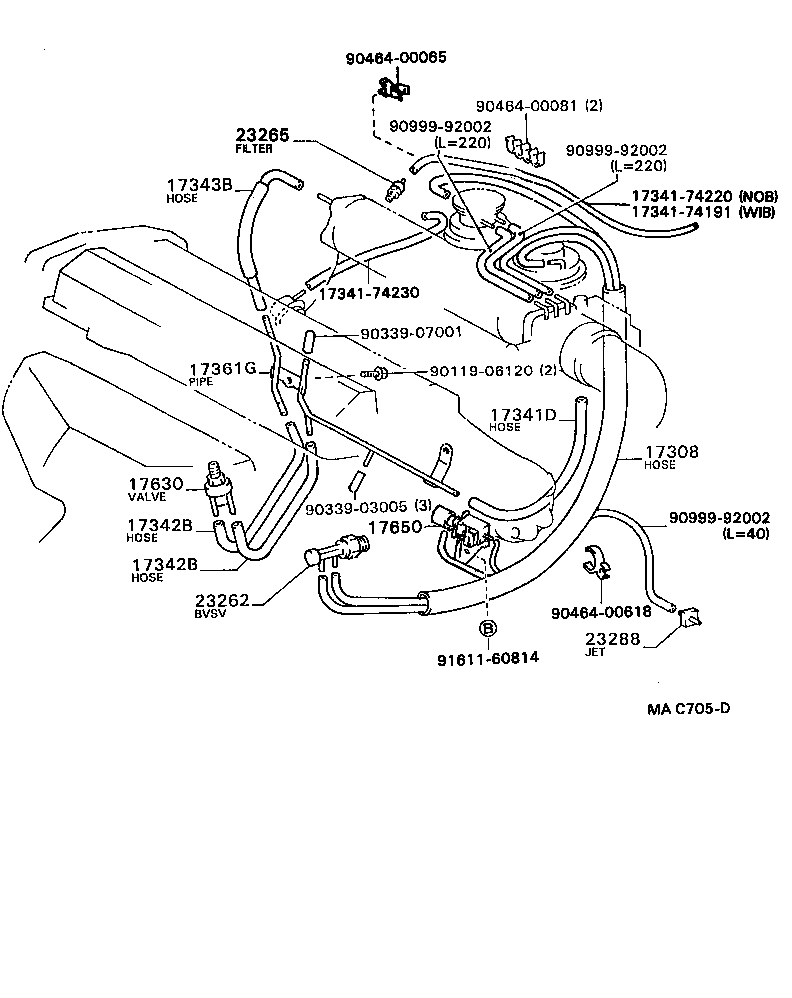

(8910-9108)5SFE

Click highlighted areas on diagram

diagram 17308 1734174191 1734174220 1734174230 17341D 17342B 17342B 17343B 17361G 17630 17650 23262 23265 23288 9011906120 9033903005 9033907001 9046400065 9046400081 9046400618 9099992002 9099992002 9099992002 9161160814
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74100

5SFE..ST184

 1
17308-74131

5SFE..ST184

 1
17308-74130

5SFE..ST184

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74040

5SFE..ST184

 1
17341-74340

5SFE..ST184

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

5SFE..ST184

 2
17343-74100

5SFE..ST184

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

5SFE..ST184

 2
17343-74100

5SFE..ST184

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74040

5SFE..ST184

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74100

5SFE..ST184

 1
17361-74030

5SFE..ST184

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SG#,5SFE..ST18#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12100

5SFE..ST184

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

3SGTE,5SFE..ST184,185

 1
23265 - FILTER, GAS, NO.1
90917-11032

5SFE..ST184

 1
90917-11023

5SFE..ST184

 1
Common parts
17341-74191
17341-74220
17341-74230
90119-06120
90339-03005
90339-07001
90464-00065
90464-00081
90464-00618
90999-92002
91611-60814
