ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )5SFE

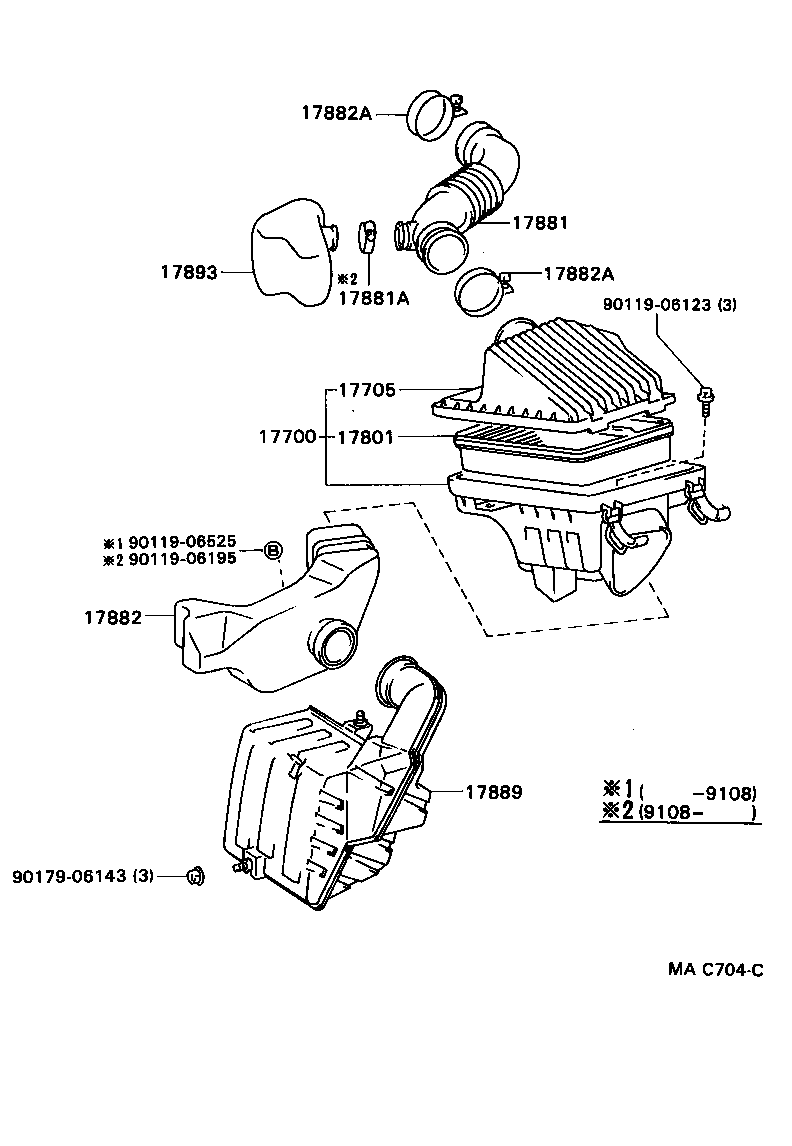

Click highlighted areas on diagram

diagram 17700 17705 17801 17881 17881A 17882 17882A 17882A 17889 17893 9011906123 9011906195 9011906525 9017906143
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74360

5SFE..ST184

 1
17700-74250

5SFE..ST184

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74160

5SFE..ST184

 1
17705-74250

5SFE..ST184

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-16020

5SFE..ST184

 1
17801-74020

3SG#,5SFE..ST18#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74430

5SFE..ST184

 1
17881-74290

5SFE..ST184

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-47001

5SFE..ST184

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-74171

3SG#,5SFE..ST18#

NO.1

 1
17882-74170

3SG#,5SFE..ST18#

NO.1

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

5SFE..ST184

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

5SFE..ST184

 2
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-74040

3SG#,5SFE..ST18#

 1
17893 - RESONATOR, INTAKE AIR
17893-74220

5SFE..ST184

 1
17893-74070

5SFE..ST184

 1
Common parts
90119-06123
90119-06195
90119-06525
90179-06143
