ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

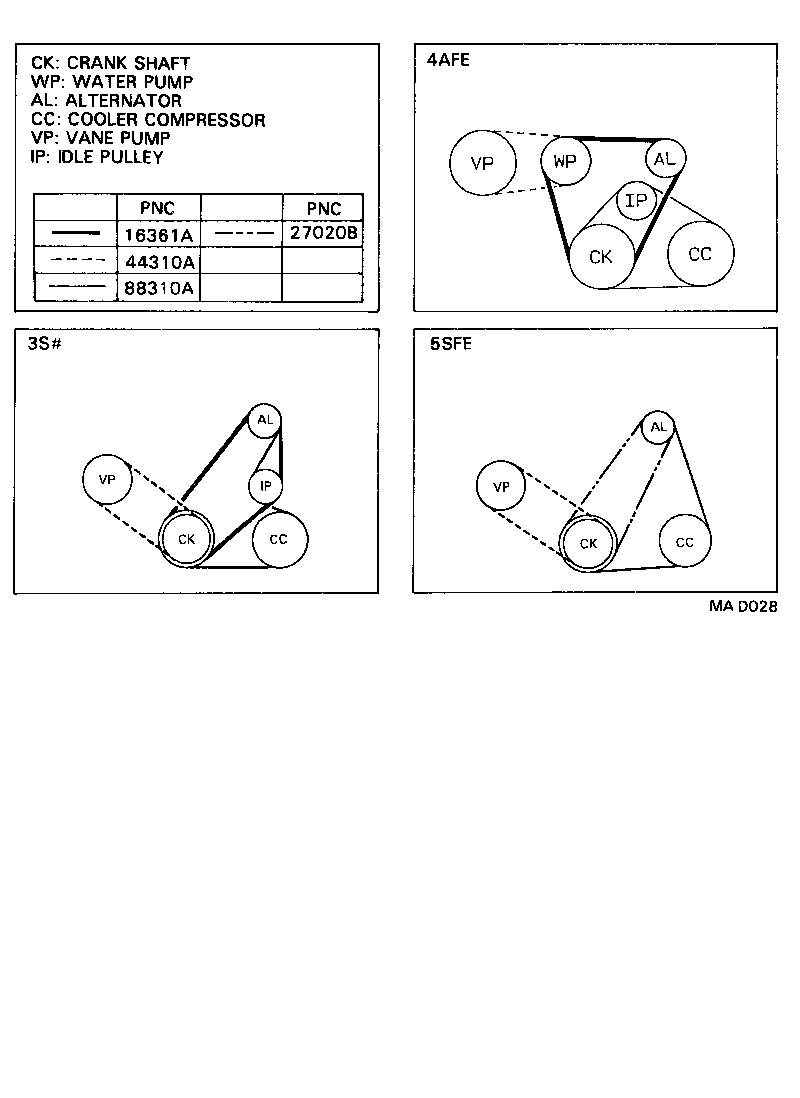

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
90916-02295

5SFE..ST184

 1
90916-02356

5SFE..ST184

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02205

ST18#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-71110

ST182,184

BANDO

 1
99365-51100

ST184

 1
99365-21110

ST182,184

L=1110,MITSUBOSHI

 1
99365-71110

ST184

BANDO

 1
