ST184R-BCPSKQ (1989)
Toyota Celica

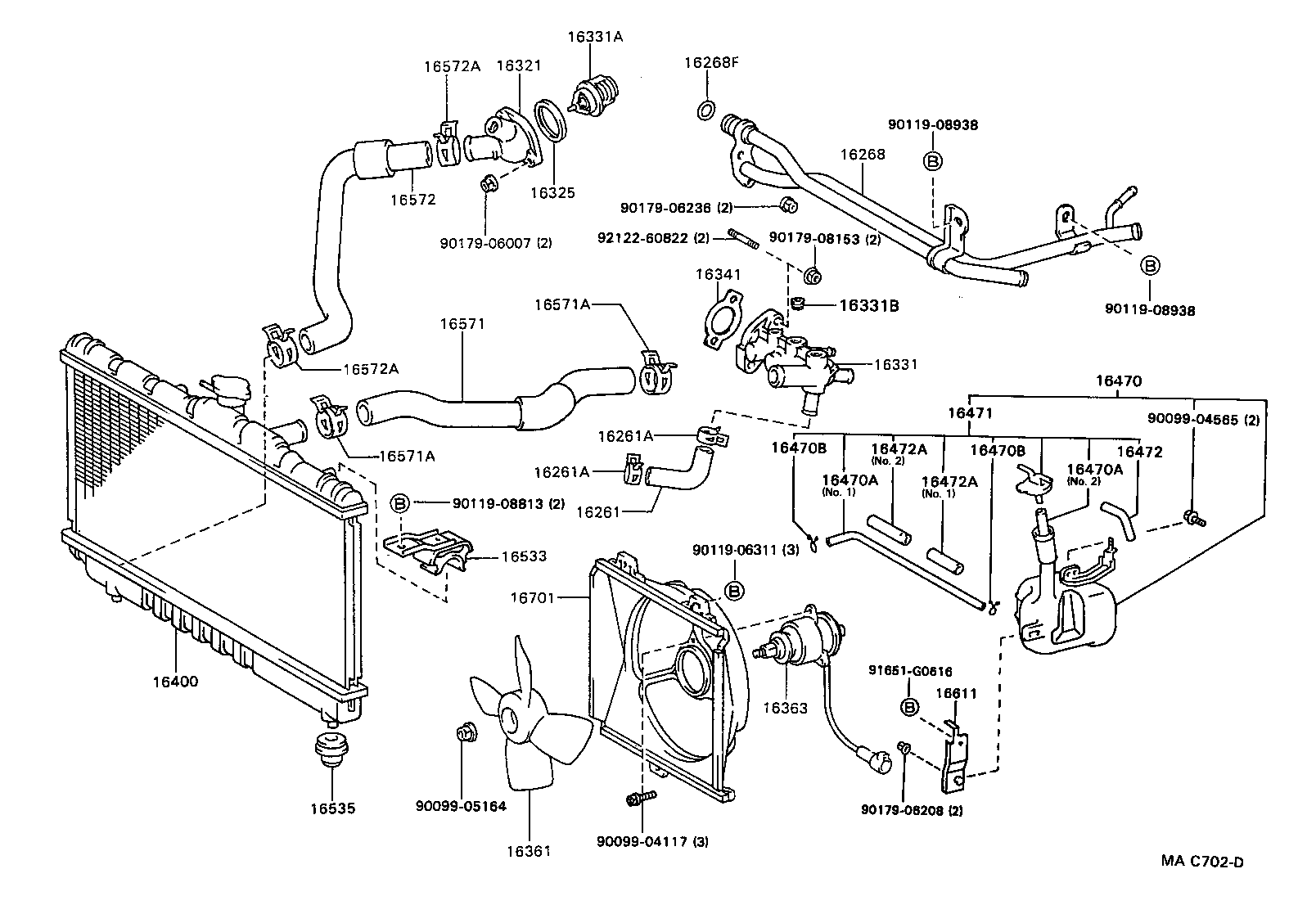

ILLUST NO. 1 OF 2(8910- )5SFE..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74010 |
5SFE..ST184 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SG#,5SFE..ST18# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SG#,5SFE..ST18# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74151 |
5SFE..ST184..ATM |
1 | ||
| 16268-74150 |
5SFE..ST184..ATM |
1 | ||
| 16268-74152 |
5SFE..ST184..ATM |
1 | ||
| 16268-74010 |
5SFE..ST184..ATM |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3SG#,5SFE..ST18# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-88381 |
3SG#,5SFE..ST18# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3SG#,5SFE..ST18# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-74180 |
5SFE..ST184 |
1 | ||
| 16304-74030 |
5SFE..ST184 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
3SG#,5SFE..ST18# *WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53009 |
5SFE..ST184..NOB..ATM |
1 | ||
| 90345-53009 |
5SFE..ST184 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63011 |
5SFE..ST184 |
1 | ||
| 16341-74020 |
5SFE..ST184 |
1 | ||
| 16361 - FAN | ||||
| 16361-63020 |
5SFE..ST184..ATM;3SGTE..ST185..TBO4W |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74030 |
3SG#..ST182,185;5SFE..ST184..ATM NO.1 |
1 | ||
| 16363-74030 |
3SGE..ST182;5SFE..ST184..ATM;3SGTE..ST185..TBO4W NO.1 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74500 |
5SFE..ST184..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74110 |
3SGE,5SFE..ST182,184 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74110 |
3SGE,5SFE..ST182,184 NO.1 |
1 | ||
| 90445-12078 |
3SGTE..ST185..TB4WA;3SGE,5SFE..ST182,184 L=600,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74110 |
3SGE,5SFE..ST182,184 NO.1 |
1 | ||
| 90445-12078 |
3SGTE..ST185..TB4WA;3SGE,5SFE..ST182,184 L=600,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SG#,5SFE..ST18# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SG#,5SFE..ST18# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74120 |
3SGE,5SFE..ST182,184 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
3SG#,5SFE..ST18# |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 85338-70070 |
3SGE,5SFE..ST182,184 NO.2 |
1 | ||
| 85338-70070 |
3SGE,5SFE..ST182,184 NO.2 |
1 | ||
| 16477-74110 |
3SGE,5SFE..ST182,184 NO.1 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 85338-70070 |
3SGE,5SFE..ST182,184 NO.2 |
1 | ||
| 85338-70070 |
3SGE,5SFE..ST182,184 NO.2 |
1 | ||
| 16477-74110 |
3SGE,5SFE..ST182,184 NO.1 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74130 |
3SG#,5SFE..ST18# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74100 |
3SG#,5SFE..ST18# |
2 | ||
| 16535-74101 |
3SG#,5SFE..ST18# |
2 | ||
| 16535-74091 |
5SFE..ST184 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74120 |
3SGE,5SFE..ST182,184 |
1 | ||
| 16571-74210 |
3SGE,5SFE..ST182,184 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33003 |
3SG#,5SFE..ST18# |
2 | ||
| 90467-33003 |
3SG#,5SFE..ST18# |
2 | ||
| 90467-33003 |
3SG#,5SFE..ST18# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33003 |
3SG#,5SFE..ST18# |
2 | ||
| 90467-33003 |
3SG#,5SFE..ST18# |
2 | ||
| 90467-33003 |
3SG#,5SFE..ST18# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74100 |
3SGE,5SFE..ST182,184 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33003 |
5SFE..ST184 ENGINE SIDE |
1 | ||
| 90467-33002 |
3SGE,5SFE..ST182,184 RADIATOR SIDE |
1 | ||
| 90467-33002 |
5SFE..ST184 RADIATOR SIDE |
1 | ||
| 90467-33002 |
3SG#,5SFE..ST18# |
2 | ||
| 90467-33003 |
3SGE,5SFE..ST182,184 ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33003 |
5SFE..ST184 ENGINE SIDE |
1 | ||
| 90467-33002 |
3SGE,5SFE..ST182,184 RADIATOR SIDE |
1 | ||
| 90467-33002 |
5SFE..ST184 RADIATOR SIDE |
1 | ||
| 90467-33002 |
3SG#,5SFE..ST18# |
2 | ||
| 90467-33003 |
3SGE,5SFE..ST182,184 ENGINE SIDE |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74070 |
3SGTE..ST185..TBO4W;3SGE,5SFE..ST182,184 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74210 |
5SFE..ST184..ATM |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-04565 | ||||
| 90099-05164 | ||||
| 90119-06311 | ||||
| 90119-08813 | ||||
| 90119-08938 | ||||
| 90179-06007 | ||||
| 90179-06208 | ||||
| 90179-06236 | ||||
| 90179-08153 | ||||
| 91651-G0616 | ||||
| 92122-60822 | ||||

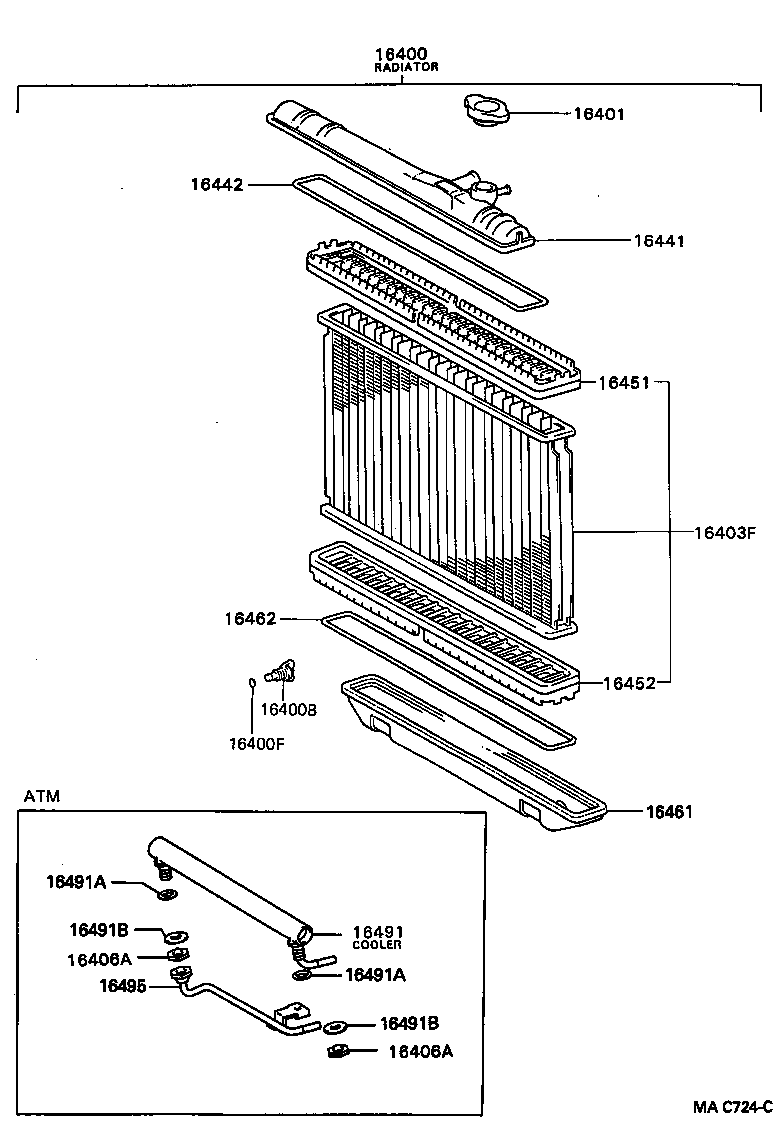

ILLUST NO. 2 OF 2(8910- )5SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-74500 |
5SFE..ST184..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3SG#,5SFE..ST18# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3SG#,5SFE..ST18# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3SG#,5SFE..ST18# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74530 |
3SG#,5SFE..ST18# |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
5SFE..ST184..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
5SFE..ST184..ATM |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-74480 |
5SFE..ST184 |
1 | ||
| 16441-74480 |
5SFE..ST184..ATM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-62050 |
3SG#,5SFE..ST18# |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-62050 |
3SG#,5SFE..ST18# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-62050 |
3SG#,5SFE..ST18# |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-74500 |
5SFE..ST184..ATM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-62050 |
3SG#,5SFE..ST18# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74520 |
5SFE..ST184..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
5SFE..ST184..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
5SFE..ST184..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
5SFE..ST184..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
5SFE..ST184..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-74500 |
5SFE..ST184..ATM |
1 | ||
