ST184R-BCPSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )5SFE

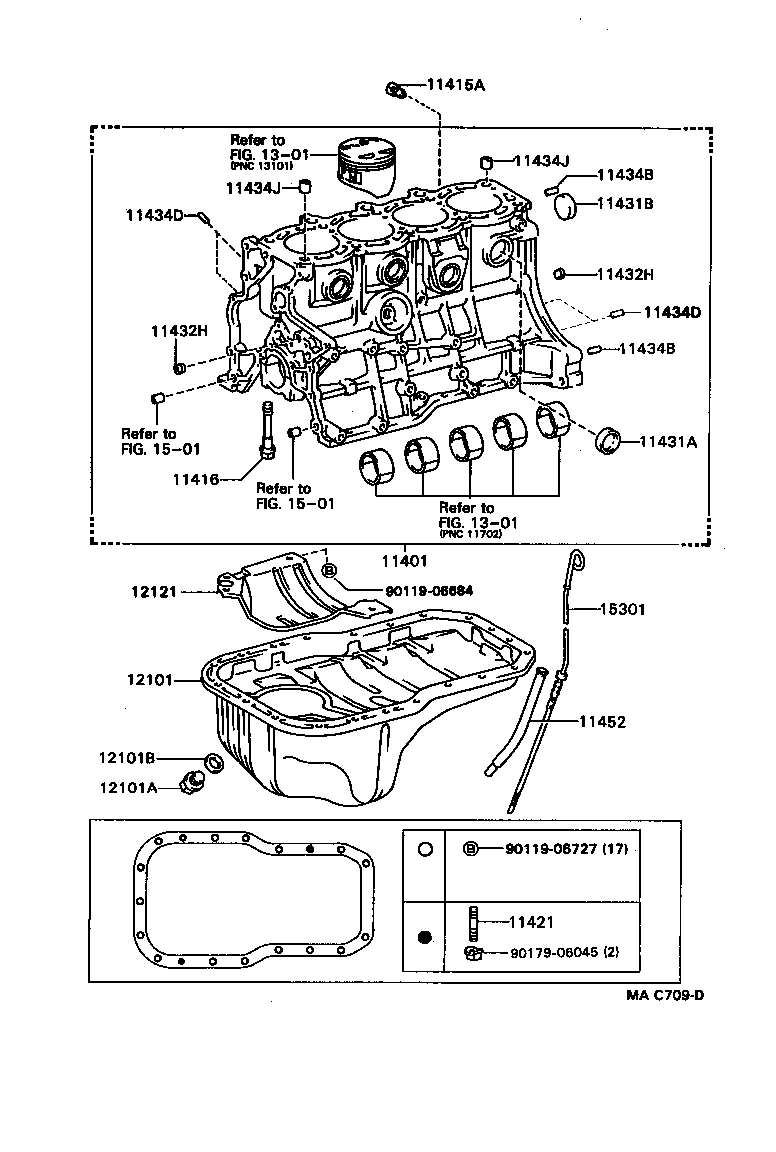

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11431A 11431B 11432H 11432H 11434B 11434B 11434D 11434D 11434J 11434J 11452 12101 12101A 12101B 12121 1301 1301 1501 1501 15301 9011906684 9011906727 9017906045
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79445

5SFE..ST184

 1
11401-79446

5SFE..ST184

 1
11401-79575

5SFE..ST184

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52001

3SGTE,5SFE..ST184,185

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

3SG#,5SFE..ST18#

 10
90105-10028

3SG#,5SFE..ST18#

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

5SFE..ST184

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3SG#,5SFE..ST18#

 8
96411-43500

3SG#,5SFE..ST18#

 8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

3SG#,5SFE..ST18#

 1
96411-44000

3SG#,5SFE..ST18#

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

5SFE..ST184

 2
90344-53015

3SG#,5SFE..ST18#

 2
90344-53006

5SFE..ST184

 2
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

5SFE..ST184

 2
90344-53015

3SG#,5SFE..ST18#

 2
90344-53006

5SFE..ST184

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3SG#,5SFE..ST18#

L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3SG#,5SFE..ST18#

L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

5SFE..ST184

L=14,OD=6

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

5SFE..ST184

L=14,OD=6

 4
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

3SG#,5SFE..ST18#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

3SG#,5SFE..ST18#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-74030

5SFE..ST184

 1
12101 - PAN SUB-ASSY, OIL
12101-74050

5SFE..ST184

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

5SFE..ST184

 1
90341-12012

3SG#,5SFE..ST18#

 1
90341-12026

3SG#,5SFE..ST18#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

5SFE..ST184

 1
90430-12021

5SFE..ST184

 1
90430-12027

3SG#,5SFE..ST18#

 1
90430-12027

5SFE..ST184

 1
90430-12027

3SG#,5SFE..ST18#

 1
90430-12027

3SG#,5SFE..ST18#

 1
90430-12027

3SG#,5SFE..ST18#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12123-74040

5SFE..ST184

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-74010

5SFE..ST184

 1
Common parts
90119-06684
90119-06727
90179-06045
Linked diagrams
1301
1501
