ST184R-BCMSKQ (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

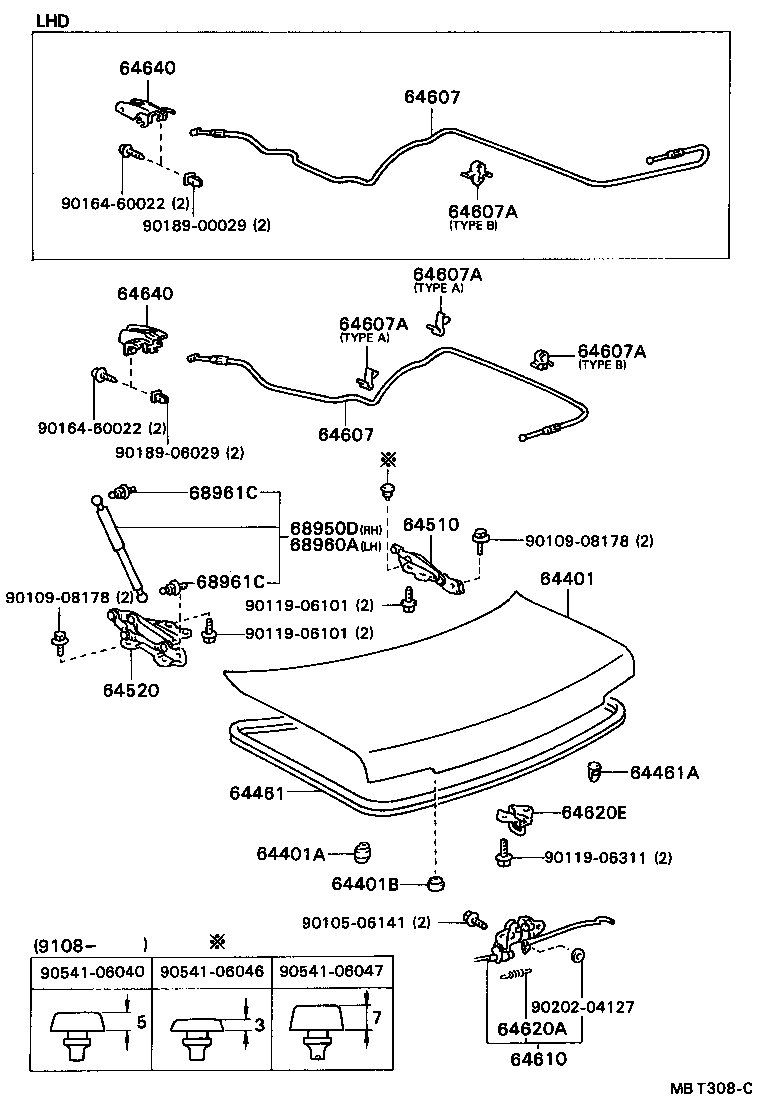

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64461 64461A 64510 64520 64607 64607 64607A 64607A 64607A 64607A 64610 64620A 64620E 64640 64640 68950D 68960A 68961C 68961C 9010506141 9010908178 9010908178 9011906101 9011906101 9011906311 9016460022 9016460022 9018900029 9018906029 9020204127 9054106040 9054106046 9054106047
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-2B360

AT180,ST184..CP

 1
64401-2B370

AT180,ST184..CP

W(REAR SPOILER)

 1
64401-2B480

ST184..CP

 1
64401-2B490

ST184..CP

W(REAR SPOILER)

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-17005

AT180,ST184..CP

 3
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90950-01618

AT180,ST184..CP

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20330

AT180,ST184..CP

 1
64461A - CLIP(FOR DECK TRIM COVER)
90467-0705323

AT180,ST184..CP

GRAY,TRIM1#,8#

 4
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20140

AT180,ST184..CP

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20130

AT180,ST184..CP

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-20560

AT180,ST184..RHD..CP

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-20560

AT180,ST184..RHD..CP

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01209

AT180,ST184..RHD..CP

TYPE B

 1
69749-12010

AT180,ST184..RHD..CP

TYPE A

 2
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01209

AT180,ST184..RHD..CP

TYPE B

 1
69749-12010

AT180,ST184..RHD..CP

TYPE A

 2
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01209

AT180,ST184..RHD..CP

TYPE B

 1
69749-12010

AT180,ST184..RHD..CP

TYPE A

 2
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90959-01209

AT180,ST184..RHD..CP

TYPE B

 1
69749-12010

AT180,ST184..RHD..CP

TYPE A

 2
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20210

AT180,ST184..CP

 1
64610-20190

AT180,ST184..CP

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-07018

AT180,ST184..CP

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-20090

AT180,ST184..CP

 1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-2038003

AT180,ST184..RHD..CP

SHADOW GRAY,TRIM1#

 1
64640-2038004

AT180,ST184..RHD..CP

DARK BLUE,TRIM8#

 1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-2038003

AT180,ST184..RHD..CP

SHADOW GRAY,TRIM1#

 1
64640-2038004

AT180,ST184..RHD..CP

DARK BLUE,TRIM8#

 1
68950D - STAY ASSY, LUGGAGE DOOR, RH
68950-80003

AT180,ST184..CP

W(REAR SPOILER)

 1
68950-80002

AT180,ST184..CP

 1
68960A - STAY ASSY, LUGGAGE DOOR, LH
68950-80002

AT180,ST184..CP

 1
68950-80003

AT180,ST184..CP

W(REAR SPOILER)

 1
68961C - BOLT, LUGGAGE DOOR STAY
68961-20051

AT180,ST184..CP

W/PANEL

 2
68961-20051

ST184..CP

W/PANEL

 2
68961-20040

ST184..CP

HINGE

 2
68961-20040

AT180,ST184..CP

HINGE

 2
68961-20051

ST184..CP

PANEL

 2
68961C - BOLT, LUGGAGE DOOR STAY
68961-20051

AT180,ST184..CP

W/PANEL

 2
68961-20051

ST184..CP

W/PANEL

 2
68961-20040

ST184..CP

HINGE

 2
68961-20040

AT180,ST184..CP

HINGE

 2
68961-20051

ST184..CP

PANEL

 2
Common parts
90105-06141
90109-08178
90119-06101
90119-06311
90164-60022
90189-00029
90189-06029
90202-04127
90541-06040
90541-06046
90541-06047
