ST184R-BCMSKQ (1989)
Toyota Celica
Production
Oct 1989
-
Nov 1993
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

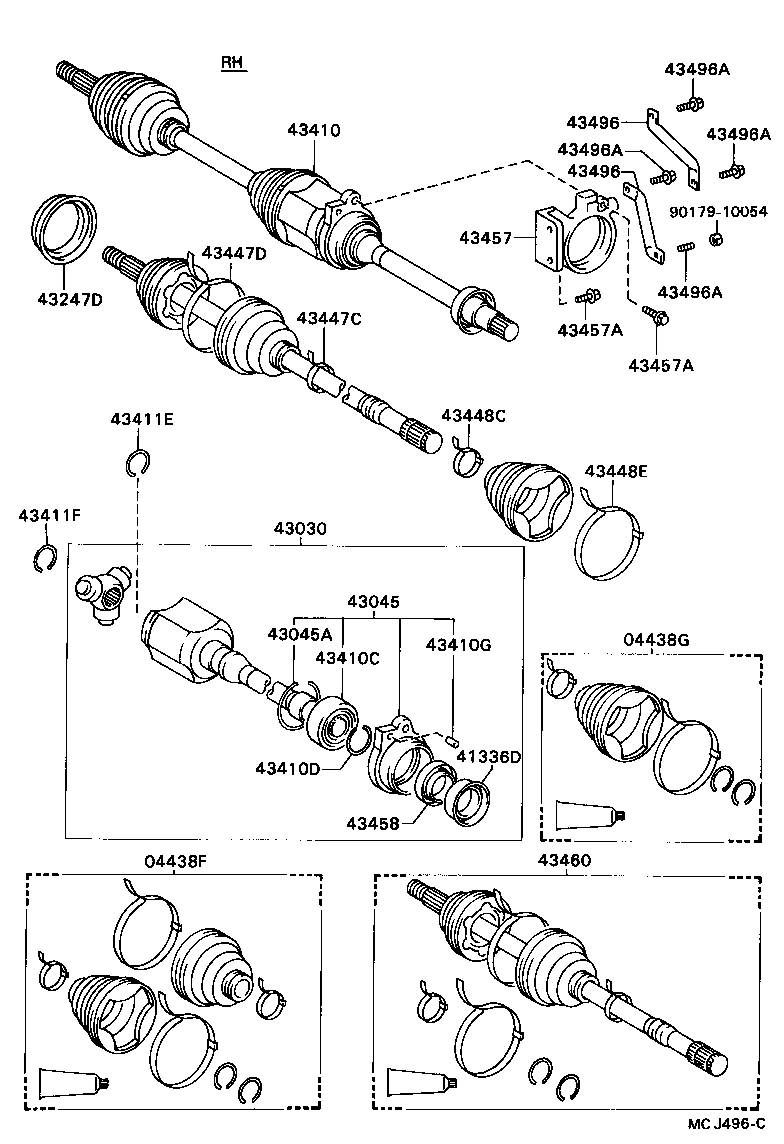

(8910- )ST184
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-20070 |
ST184 |
1 | ||
| 04438-20150 |
ST184 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-20140 |
ST184 |
1 | ||
| 04438-20060 |
ST184 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20011 |
ST182,184 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-20040 |
ST184 |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-20010 |
ST184 |
2 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 96153-00680 |
ST182,184 |
1 | ||
| 43247D - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH | ||||
| 43247-32011 |
AT180,ST18# |
1 | ||
| 43247-33010 |
AT180,ST18# |
1 | ||
| 43247-12010 |
ST184,185 W(*66) |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20241 |
ST184 |
1 | ||
| 43410-20240 |
ST184 |
1 | ||
| 43410-20251 |
ST184 W(*66) |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36001 |
ST184 |
2 | ||
| 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90520-33008 |
ST182,184 |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
ST182,184 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-26048 |
ST184 |
1 | ||
| 43411F - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER RH) | ||||
| 90520-25037 |
ST184 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ST184 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01473 |
ST184 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ST184 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-30010 |
ST184 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20030 |
ST182,184 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST182,184 *10-1.25PX22-19.5 |
4 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10202 |
ST182,184 *10-1.25PX22-19.5 |
4 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-20011 |
ST182,184 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29155 |
ST184 |
1 | ||
| 43470-29166 |
ST184 W(*66) |
1 | ||
| 43470-29156 |
ST184 |
1 | ||
| 43496 - STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1 | ||||
| 43496-20040 |
ST184 EXHUST PIPE SIDE |
1 | ||
| 43496-20010 |
ST182,184 VANE PUMP SIDE |
1 | ||
| 43496 - STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1 | ||||
| 43496-20040 |
ST184 EXHUST PIPE SIDE |
1 | ||
| 43496-20010 |
ST182,184 VANE PUMP SIDE |
1 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90116-10164 |
ST184 |
1 | ||
| 90105-10263 |
ST184 |
3 | ||
| 90116-10164 |
ST182,184 |
1 | ||
| 90105-10263 |
ST182,184 |
3 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90116-10164 |
ST184 |
1 | ||
| 90105-10263 |
ST184 |
3 | ||
| 90116-10164 |
ST182,184 |
1 | ||
| 90105-10263 |
ST182,184 |
3 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90116-10164 |
ST184 |
1 | ||
| 90105-10263 |
ST184 |
3 | ||
| 90116-10164 |
ST182,184 |
1 | ||
| 90105-10263 |
ST182,184 |
3 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90116-10164 |
ST184 |
1 | ||
| 90105-10263 |
ST184 |
3 | ||
| 90116-10164 |
ST182,184 |
1 | ||
| 90105-10263 |
ST182,184 |
3 | ||
| Common parts | ||||
| 90179-10054 | ||||

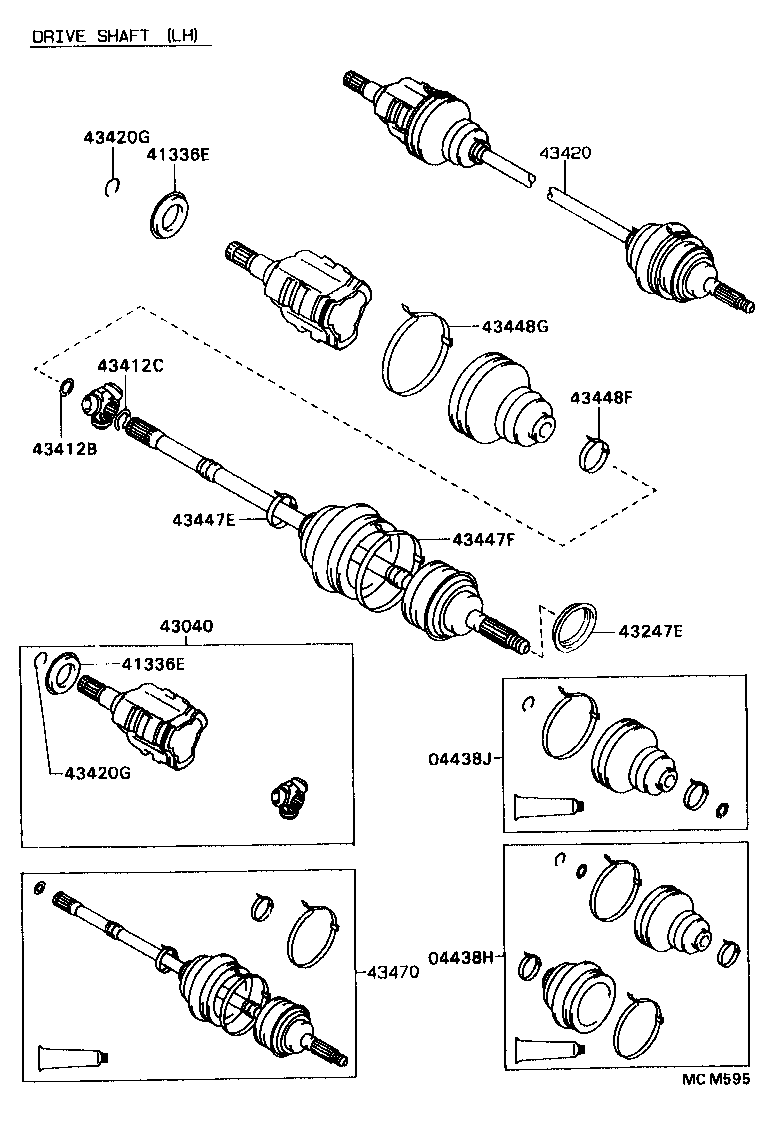

(8910- )AT180,ST184
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-20070 |
ST184 |
1 | ||
| 04438-20150 |
ST184 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-20060 |
ST184 |
1 | ||
| 04438-20140 |
ST184 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
ST182,184 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
ST182,184 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-20020 |
ST184 |
1 | ||
| 43247E - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 LH | ||||
| 43247-33010 |
AT180,ST18# |
1 | ||
| 43247-12010 |
ST184,185 W(*66) |
1 | ||
| 43247-32011 |
AT180,ST18# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-26048 |
ST184 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20201 |
ST184 W(*66) |
1 | ||
| 43420-20191 |
ST184 |
1 | ||
| 43420-20190 |
ST184 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
ST182,184 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
ST182,184 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01559 |
ST184 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01473 |
ST184 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01559 |
ST184 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-30010 |
ST184 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29155 |
ST184 |
1 | ||
| 43470-29166 |
ST184 W(*66) |
1 | ||
| 43470-29156 |
ST184 |
1 | ||

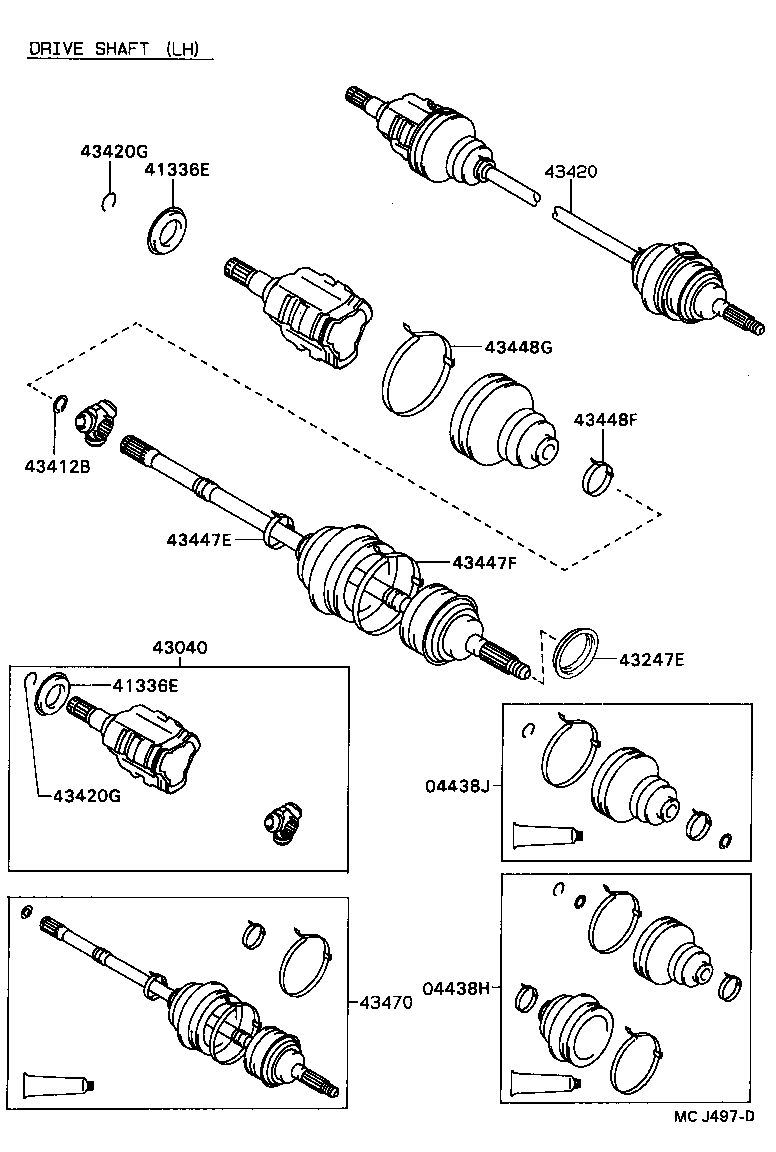

(8910- )ST184
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-20070 |
ST184 |
1 | ||
| 04438-20150 |
ST184 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-20060 |
ST184 |
1 | ||
| 04438-20140 |
ST184 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
ST182,184 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
ST182,184 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-20020 |
ST184 |
1 | ||
| 43247E - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 LH | ||||
| 43247-33010 |
AT180,ST18# |
1 | ||
| 43247-12010 |
ST184,185 W(*66) |
1 | ||
| 43247-32011 |
AT180,ST18# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-26048 |
ST184 |
1 | ||
| 43412C - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER LH) | ||||
| 90520-25037 |
ST184 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20201 |
ST184 W(*66) |
1 | ||
| 43420-20191 |
ST184 |
1 | ||
| 43420-20190 |
ST184 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
ST182,184 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
ST182,184 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01559 |
ST184 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01473 |
ST184 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01559 |
ST184 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-30010 |
ST184 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29155 |
ST184 |
1 | ||
| 43470-29166 |
ST184 W(*66) |
1 | ||
| 43470-29156 |
ST184 |
1 | ||
