ST182R-BLMVFQ (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910-9108)ST182

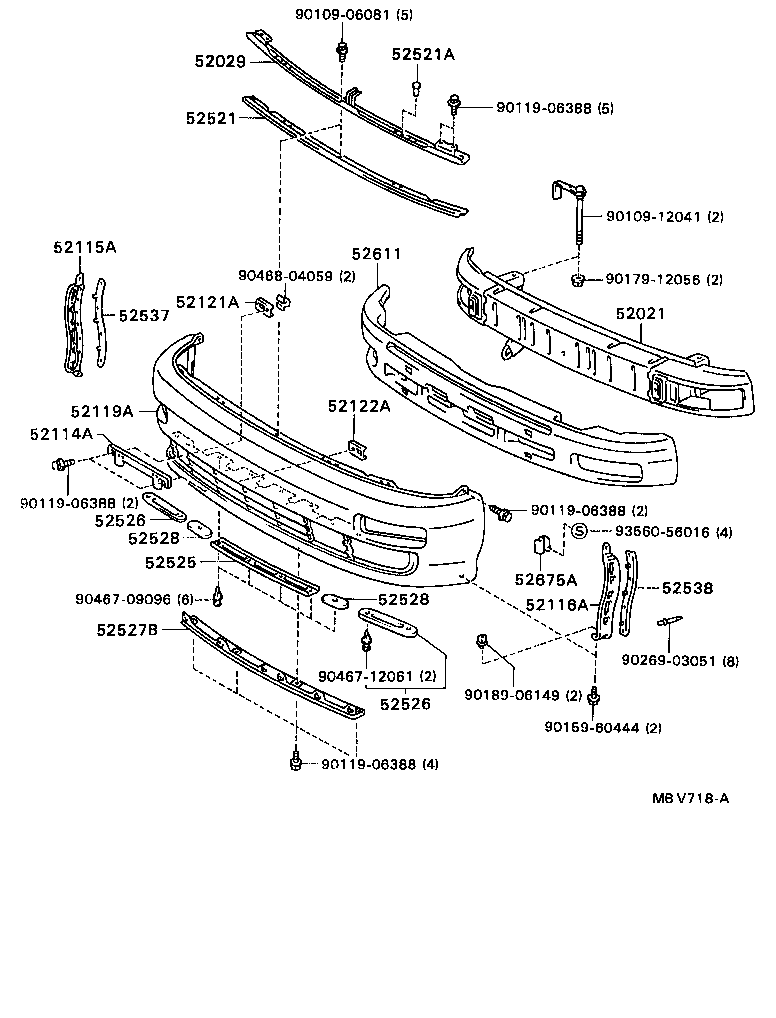

Click highlighted areas on diagram

diagram 52021 52029 52114A 52115A 52116A 52119A 52121A 52122A 52521 52521A 52525 52526 52526 52527B 52537 52538 52611 52675A 9010906081 9010912041 9011906388 9011906388 9011906388 9011906388 9015960444 9017912056 9018906149 9026903051 9046709093 9046709093 9046804059 9356056016
Part # Description Qty Price
Common parts
90109-06081
90109-12041
90119-06388
90159-60444
90179-12056
90189-06149
90269-03051
90467-09093
90468-04059
93560-56016

(8910-9108)ST185 ; (9108- )ST182 ; (9108-)TBO4W ; (9108- )ST184..WIB

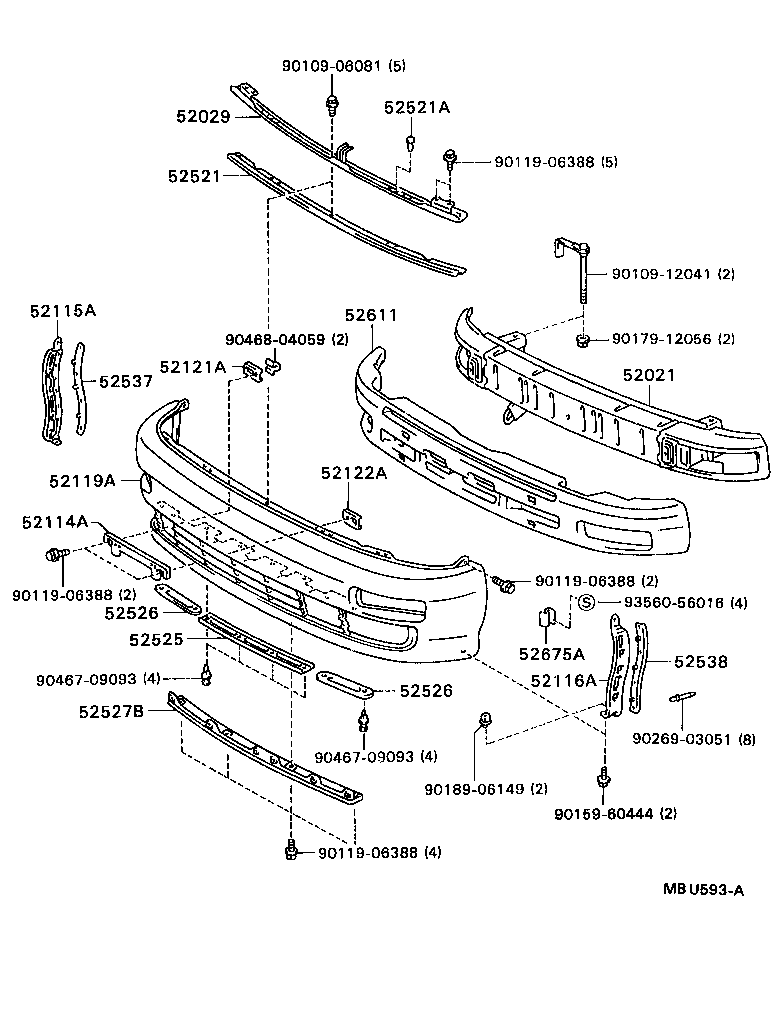

Click highlighted areas on diagram

diagram 52021 52029 52114A 52115A 52116A 52119A 52121A 52122A 52521 52521A 52525 52526 52526 52527B 52528 52528 52537 52538 52611 52675A 9010906081 9010912041 9011906388 9011906388 9011906388 9011906388 9015960444 9017912056 9018906149 9026903051 9046709096 9046712061 9046804059 9356056016
Part # Description Qty Price
Common parts
90109-06081
90109-12041
90119-06388
90159-60444
90179-12056
90189-06149
90269-03051
90467-09096
90467-12061
90468-04059
93560-56016
