ST182L-BLMGFV (1989)

Toyota Celica

Production Nov 1989 - Nov 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

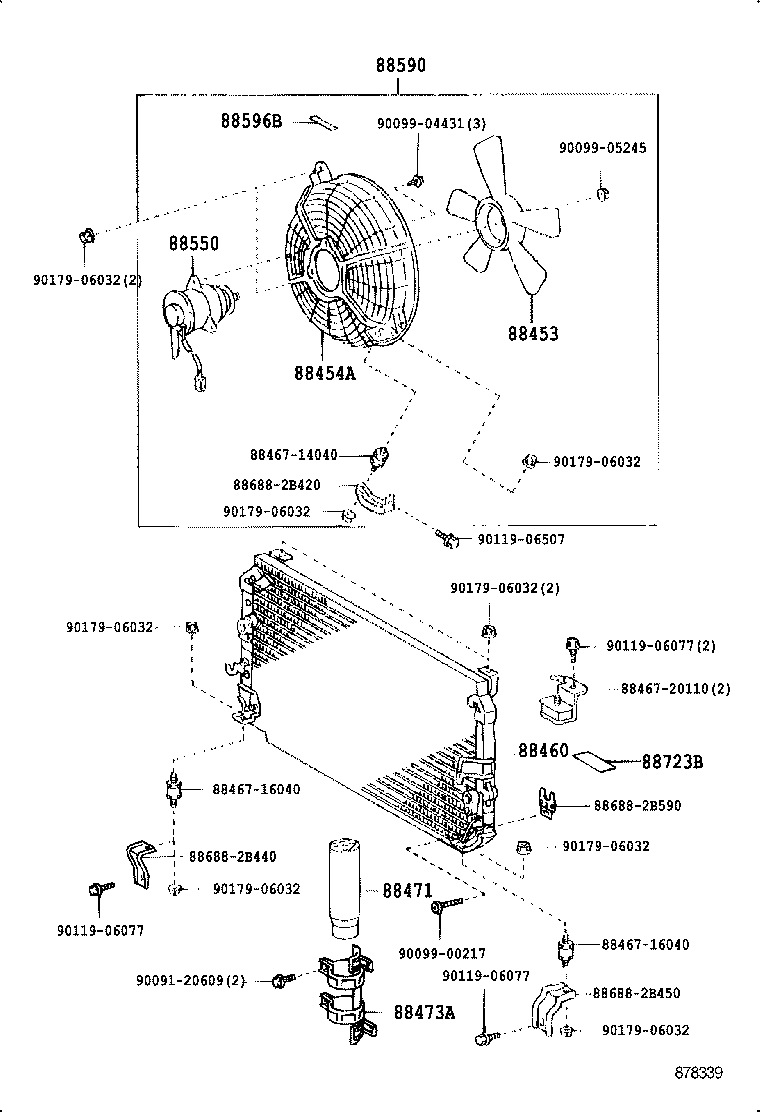

(8911- )AT180,ST182

Click highlighted areas on diagram

diagram 88453 88454A 88460 8846714040 8846716040 8846716040 8846720110 88471 88473A 88550 88590 88596B 886882B420 886882B440 886882B450 886882B590 88723B 9009120609 9009900217 9009904431 9009905245 9011906077 9011906077 9011906077 9011906507 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-20060

AT180,ST18#

 1
88453-20060

AT180,ST18#

 1
88454A - SHROUD, FAN
88454-20100

ST185..TBO4W;AT180,ST182,184

 1
88454-20100

AT180,ST18#

 1
88460 - CONDENSER ASSY, COOLER
88460-20310

AT180,ST182..LHD

 1
88460-20310

AT180,ST182..LHD

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

AT180,ST18#

 1
88471-16040

ST185..TBO4W;AT180,ST182,184

 1
88473A - HOLDER, RECEIVER
88473-20080

AT180,ST182

 1
88473-20080

AT180,ST18#

 1
88473-20080

AT180,ST182,184

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20070

ST185..TBO4W;AT180,ST182,184

 1
88550-20070

AT180,ST18#

 1
88590 - BLOWER ASSY, W/SHROUD
88590-20230

AT180,ST182

 1
88590-20230

AT180,ST182

 1
88596B - PLATE, CAUTION, NO.1
88596-24010

ST185..TBO4W;AT180,ST182,184

 1
88596-24010

AT180,ST18#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20020

AT180,ST18#

 1
Common parts
88467-14040
88467-16040
88467-20110
88688-2B420
88688-2B440
88688-2B450
88688-2B590
90091-20609
90099-00217
90099-04431
90099-05245
90119-06077
90119-06507
90179-06032

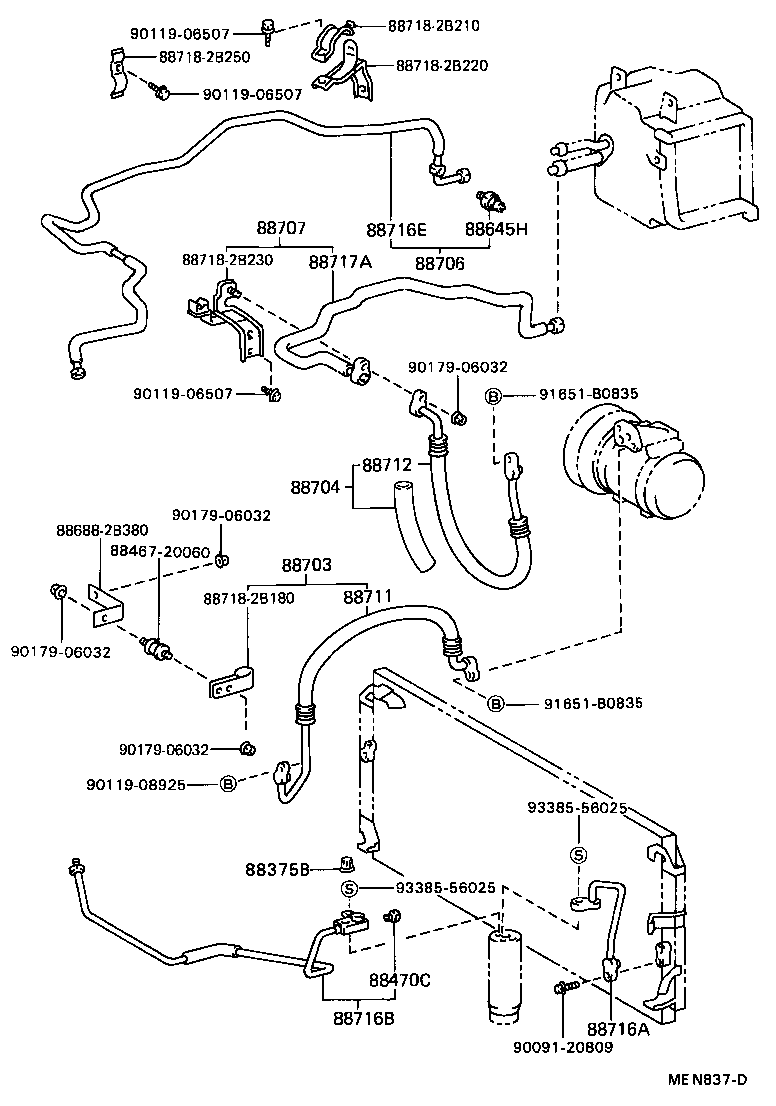

(8911-9108)ST182

Click highlighted areas on diagram

diagram 88375B 8846720060 88470C 88645H 886882B380 88703 88704 88706 88707 88711 88712 88716A 88716B 88716E 88717A 887182B180 887182B210 887182B220 887182B230 887182B250 9009120809 9011906507 9011906507 9011906507 9011908925 9017906032 9017906032 9017906032 9017906032 91651B0835 91651B0835 9338556025 9338556025
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-20010

AT180,ST182

 1
88375-20010

AT180,ST182,184

 1
88375-20010

AT180,ST18#

 1
88470C - BOLT, FUSE
88475-12020

AT180,ST182

 1
88475-12020

AT180,ST182

 1
88645H - SWITCH, PRESSURE NO.1
88645-50010

AT180,ST182

 1
88645-20040

ST185..TBO4W;AT180,ST182,184

 1
88645-20040

AT180,ST18#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-20061

ST182

 1
88703-20060

ST182,184

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-20120

ST182

 1
88704-20121

ST182

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-20060

AT180,ST182..LHD

 1
88706-20061

AT180,ST182..LHD

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-20010

AT180,ST182..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20710

ST182,184

 1
88711-20790

ST182

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B190

ST182

 1
88712-2B090

ST182

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B760

AT180,ST182,184

 1
88716-2B760

AT180,ST18#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2B750

AT180,ST182..LHD

 1
88716-2B750

AT180,ST182..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2B781

AT180,ST182..LHD

 1
88716-2B780

AT180,ST182..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B060

AT180,ST182..LHD

 1
Common parts
88467-20060
88688-2B380
88718-2B180
88718-2B210
88718-2B220
88718-2B230
88718-2B250
90091-20809
90119-06507
90119-08925
90179-06032
91651-B0835
93385-56025

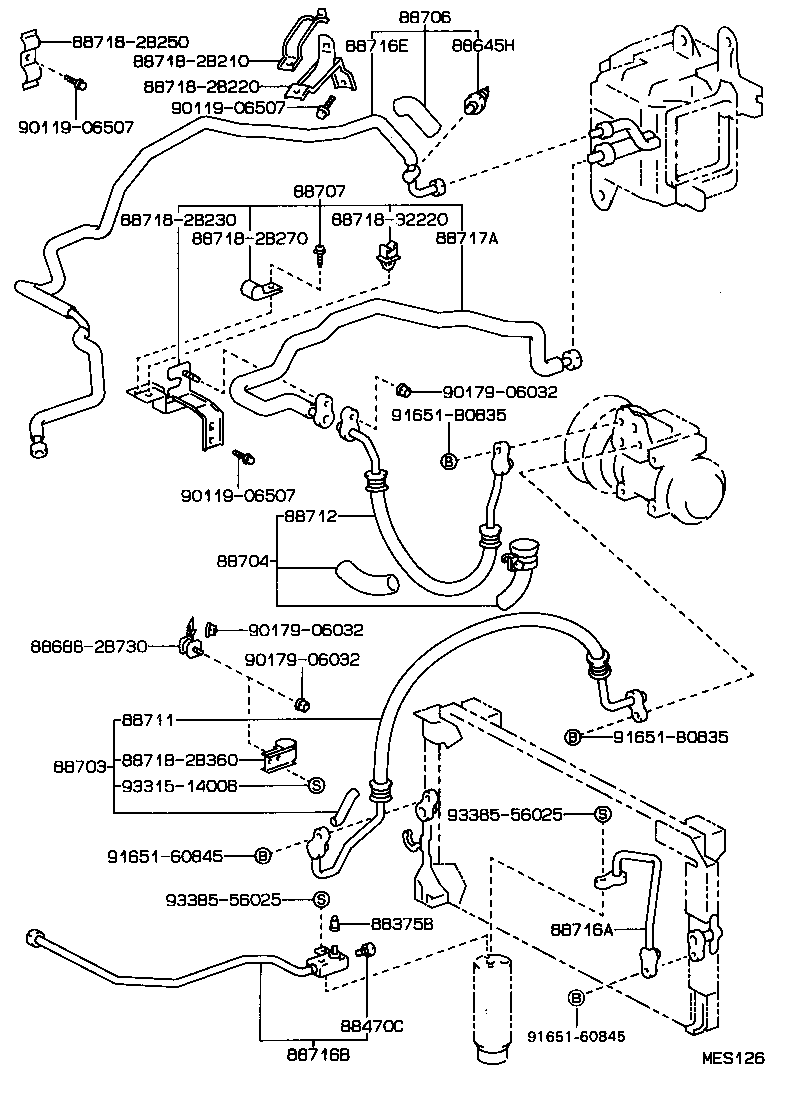

(9108- )ST182

Click highlighted areas on diagram

diagram 88375B 88470C 88645H 886882B730 88703 88704 88706 88707 88711 88712 88716A 88716B 88716E 88717A 887182B210 887182B220 887182B230 887182B250 887182B270 887182B360 8871832220 9011906507 9011906507 9011906507 9017906032 9017906032 9017906032 9165160845 9165160845 91651B0835 91651B0835 9331514008 9338556025 9338556025
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-20010

AT180,ST182

 1
88375-20010

AT180,ST182,184

 1
88375-20010

AT180,ST18#

 1
88470C - BOLT, FUSE
88475-12020

AT180,ST182

 1
88475-12020

AT180,ST182

 1
88645H - SWITCH, PRESSURE NO.1
88645-50010

AT180,ST182

 1
88645-20040

ST185..TBO4W;AT180,ST182,184

 1
88645-20040

AT180,ST18#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-20061

ST182

 1
88703-20060

ST182,184

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-20120

ST182

 1
88704-20121

ST182

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-20060

AT180,ST182..LHD

 1
88706-20061

AT180,ST182..LHD

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-20010

AT180,ST182..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20710

ST182,184

 1
88711-20790

ST182

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B190

ST182

 1
88712-2B090

ST182

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B760

AT180,ST182,184

 1
88716-2B760

AT180,ST18#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2B750

AT180,ST182..LHD

 1
88716-2B750

AT180,ST182..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2B781

AT180,ST182..LHD

 1
88716-2B780

AT180,ST182..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B060

AT180,ST182..LHD

 1
Common parts
88688-2B730
88718-2B210
88718-2B220
88718-2B230
88718-2B250
88718-2B270
88718-2B360
88718-32220
90119-06507
90179-06032
91651-60845
91651-B0835
93315-14008
93385-56025
