ST162R-BLPVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

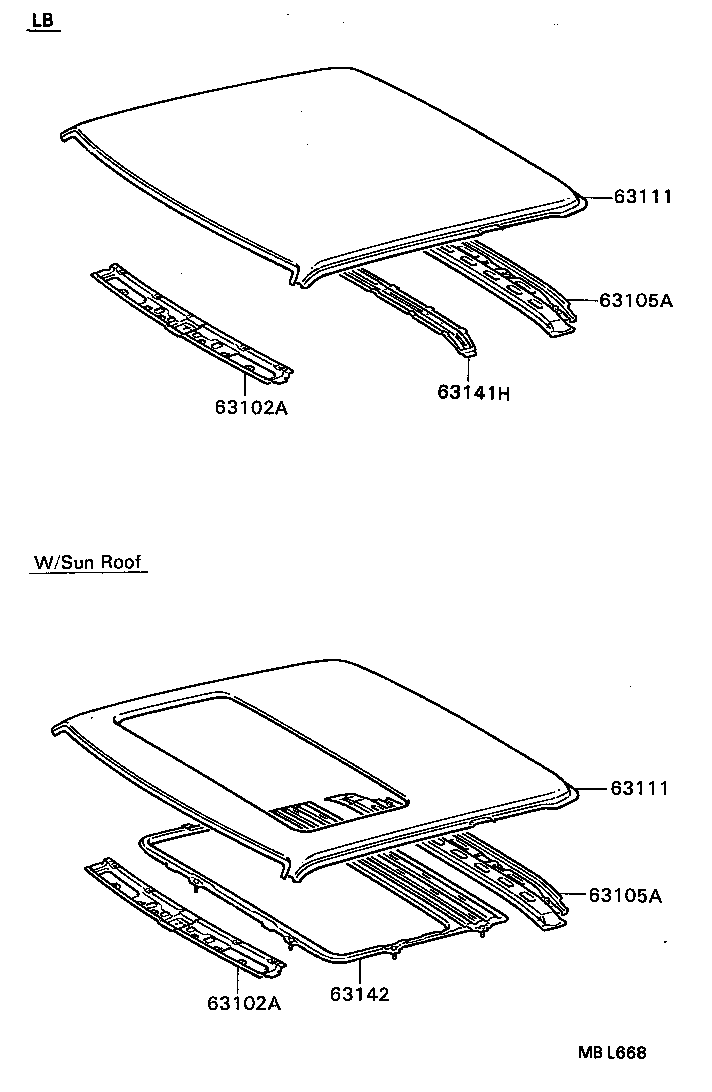

ILLUST NO. 1 OF 2(8708- )LB

Click highlighted areas on diagram

diagram 63102A 63102A 63105A 63105A 63111 63111 63141H 63142
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20090

AT160,ST162

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20090

AT160,ST162

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-20040

AT160,ST162..LB

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-20040

AT160,ST162..LB

 1
63111 - PANEL, ROOF
63111-20250

AT160,ST162..LB

W(SUN ROOF)

 1
63111-20240

AT160,ST162..LB

 1
63111 - PANEL, ROOF
63111-20250

AT160,ST162..LB

W(SUN ROOF)

 1
63111-20240

AT160,ST162..LB

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-20060

AT160,ST162

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-20040

AT160,ST162

 1

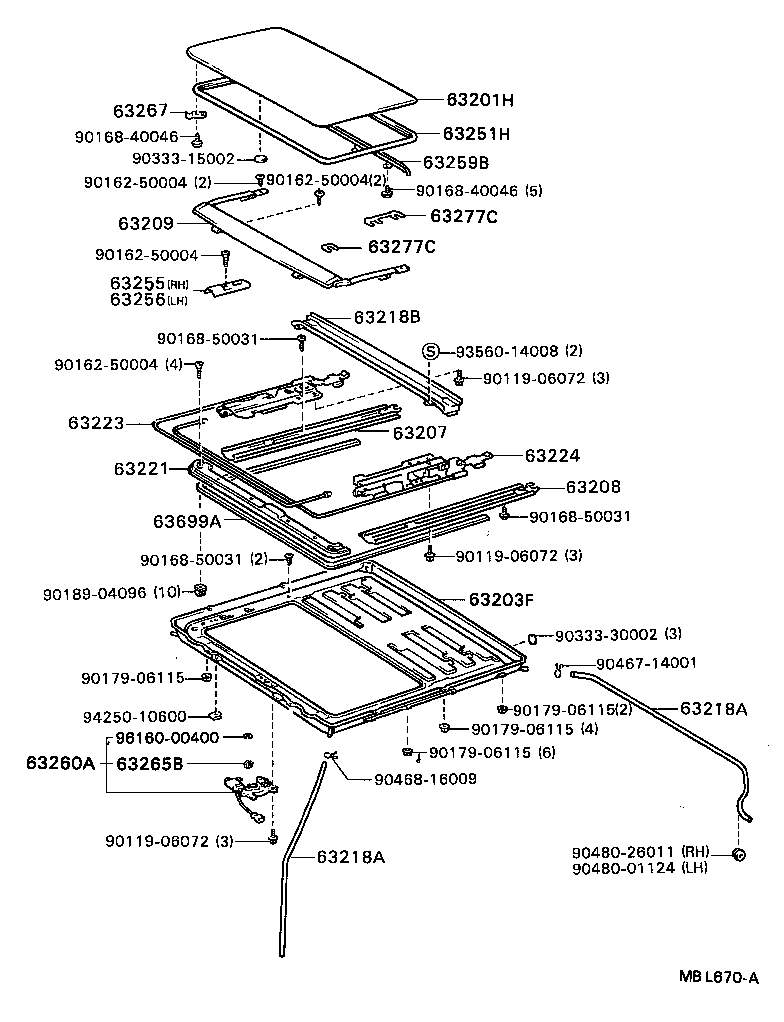

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 63201H 63203F 63207 63208 63209 63218A 63218A 63218B 63221 63223 63224 63251H 63255 63256 63259B 63260A 63265B 63267 63277C 63277C 63699A 9011906072 9011906072 9011906072 9016250004 9016250004 9016250004 9016250004 9016840046 9016840046 9016850031 9016850031 9016850031 9017906115 9017906115 9017906115 9017906115 9018904096 9033315002 9033330002 9046714001 9046816009 9048001124 9048026011 9356014008 9425010600 9616000400
Part # Description Qty Price
63201H - PANEL SUB-ASSY, SLIDE ROOF
63201-20030

AT160,ST162

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-20030

AT160,ST162

 1
63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH
63207-20031

AT160,ST162

 1
63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH
63208-20031

AT160,ST162

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-20031

AT160,ST162

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-20070

AT160,ST162..LB

RR RH

 1
63249-20080

AT160,ST162

FR

 2
63249-20100

AT160,ST162..LB

RR LH

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-20070

AT160,ST162..LB

RR RH

 1
63249-20080

AT160,ST162

FR

 2
63249-20100

AT160,ST162..LB

RR LH

 1
63218B - CHANNEL, ROOF DRIP, REAR
63218-20021

AT160,ST162

 1
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-20030

AT160,ST162

 1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-20031

AT160,ST162

 1
63223-20032

AT160,ST162

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-20031

AT160,ST162

 1
63224-20032

AT160,ST162

 1
63251H - WEATHERSTRIP, SLIDING ROOF
63251-20040

AT160,ST162

 1
63255 - COVER, SLIDING ROOF GUIDE RAIL, RH
63255-20030

AT160,ST162

 1
63256 - COVER, SLIDING ROOF GUIDE RAIL, LH
63255-20030

AT160,ST162

 1
63259B - HOLDER, SLIDING ROOF WEATHERSTRIP
63259-20030

AT160,ST162

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-20030

AT160,ST162

 1
63265B - GEAR, SLIDING ROOF DRIVE
63265-20010

AT160,ST162

 1
63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP
63267-20020

AT160,ST162

 2
63277C - SHIM, SLIDING ROOF PANEL
63277-20030

AT160,ST162

T=1.0,T=1.0,28X30

 1
63277-20040

AT160,ST162

T=2.0,T=2.0,124X30

 1
63277-20020

AT160,ST162

T=1.0,T=1.0,124X30

 1
63277-20050

AT160,ST162

T=2.0,T=2.0,28X30

 1
63277C - SHIM, SLIDING ROOF PANEL
63277-20030

AT160,ST162

T=1.0,T=1.0,28X30

 1
63277-20040

AT160,ST162

T=2.0,T=2.0,124X30

 1
63277-20020

AT160,ST162

T=1.0,T=1.0,124X30

 1
63277-20050

AT160,ST162

T=2.0,T=2.0,28X30

 1
63699A - SEAL, SLIDING ROOF GUIDE RAIL
63699-12040

AT160,ST162

 1
63699-20010

AT160,ST162

 1
Common parts
90119-06072
90162-50004
90168-40046
90168-50031
90179-06115
90189-04096
90333-15002
90333-30002
90467-14001
90468-16009
90480-01124
90480-26011
93560-14008
94250-10600
96160-00400
