ST162R-BLPVFQ (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

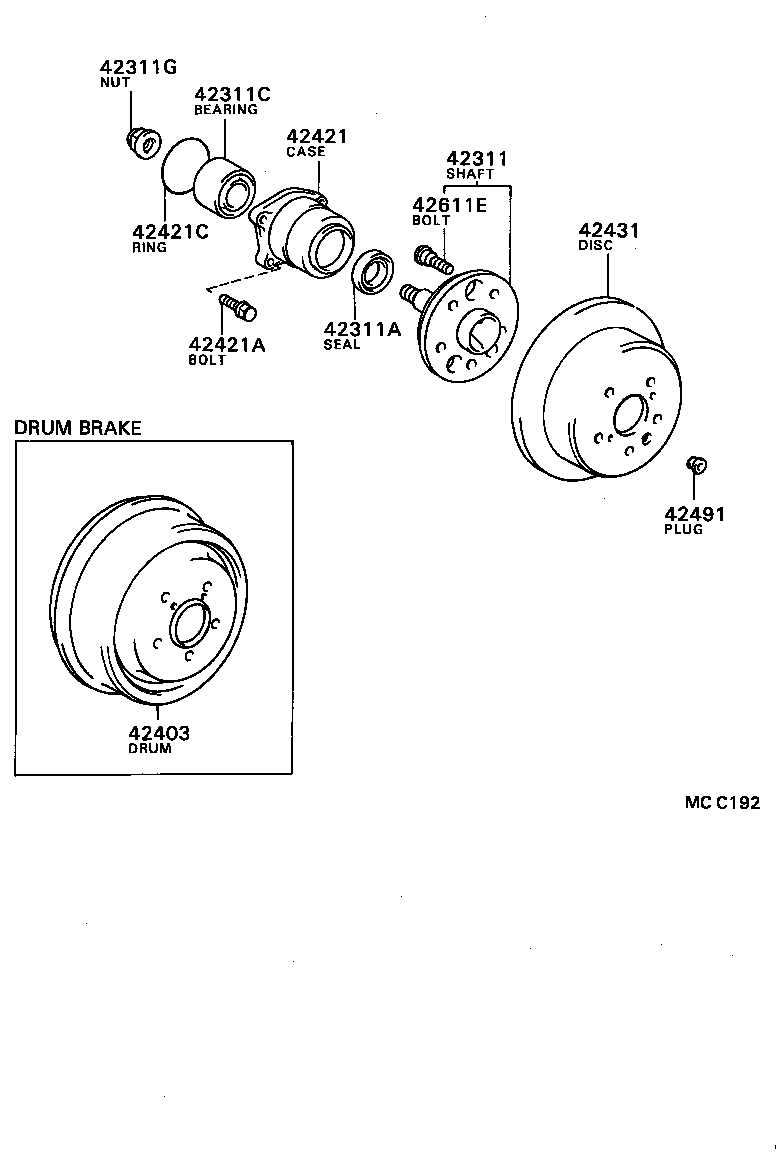

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311G 42403 42421 42421A 42421C 42431 42491 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42301-20060

ST162,182..GT,SX

 2
42301-20050

ST162..ST

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-42006

AT160,ST162,182

 2
90311-42018

AT160,ST162,182

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90369-30044

AT160,ST162,182

 2
42311G - NUT (FOR REAR AXLE SHAFT)
90179-20003

AT160,ST162,182

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-20080

ST162..ST

 2
42421 - CASE, REAR AXLE BEARING
42421-20020

AT160,ST162,182

 2
42421A - BOLT (FOR REAR AXLE BEARING CASE)
90105-10124

AT160,ST162,182

 8
42421C - RING, O (FOR REAR AXLE BEARING CASE)
90301-63003

AT160,ST162,182

 2
42431 - DISC, REAR
42431-20090

ST162,182..GT,SX

 2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

ST162,182..GT,SX

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

AT160,ST162,182

 10
