ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

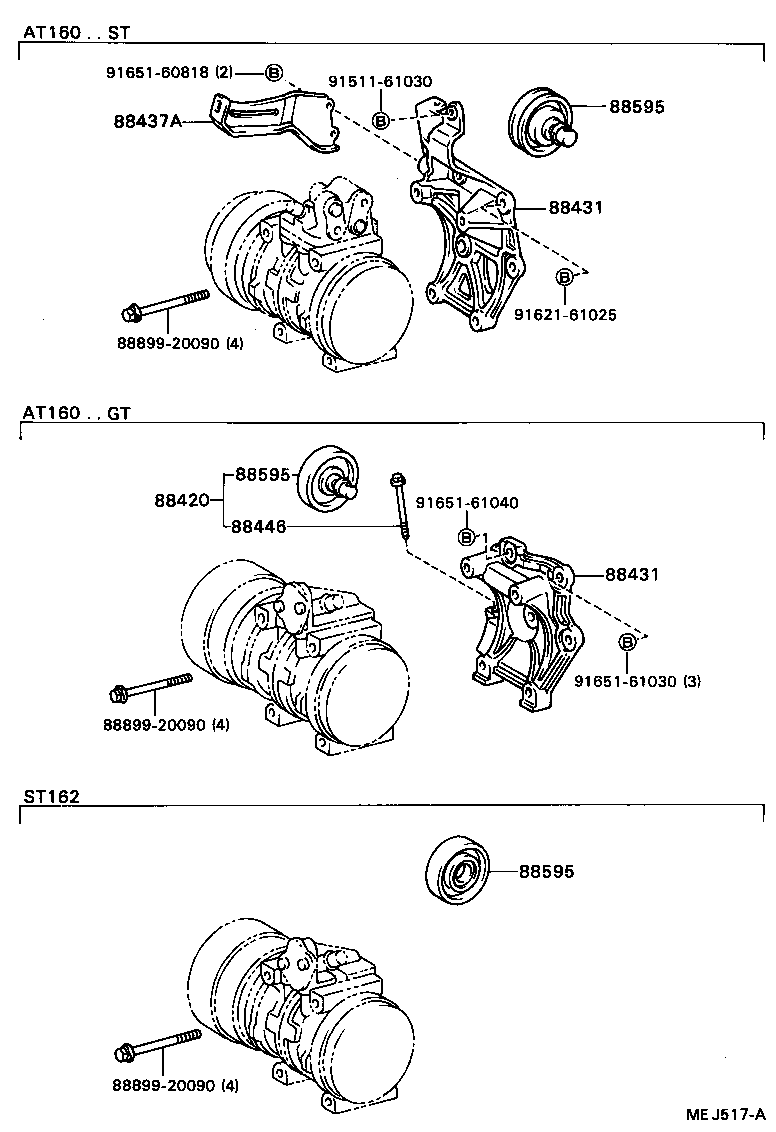

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

diagram 88420 88431 88431 88437A 88446 88595 88595 88595 8889920090 8889920090 8889920090 9151161030 9162161025 9165160818 9165161030 9165161040
Part # Description Qty Price
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-20110

ST162..SX

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-20110

ST162..SX

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-20110

ST162..SX

 1
Common parts
88899-20090
91511-61030
91621-61025
91651-60818
91651-61030
91651-61040

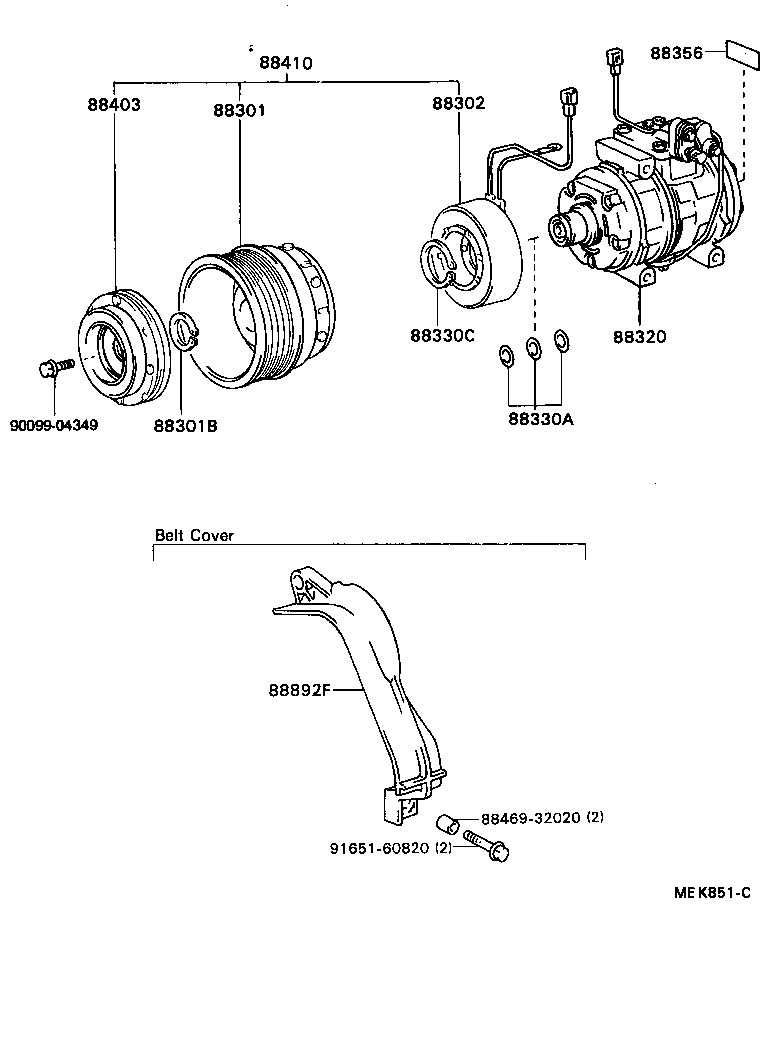

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 88301 88301B 88302 88320 88330A 88330C 88356 88403 88410 8846932020 88892F 9009904349 9165160820
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-20540

ST162..ARL

 1
88410 - CLUTCH ASSY, MAGNET
88410-14170

ST162..ARL

 1
88892F - COVER, COOLER COMPRESSOR
88892-32051

ST162..SX

 1
Common parts
88469-32020
90099-04349
91651-60820
