ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

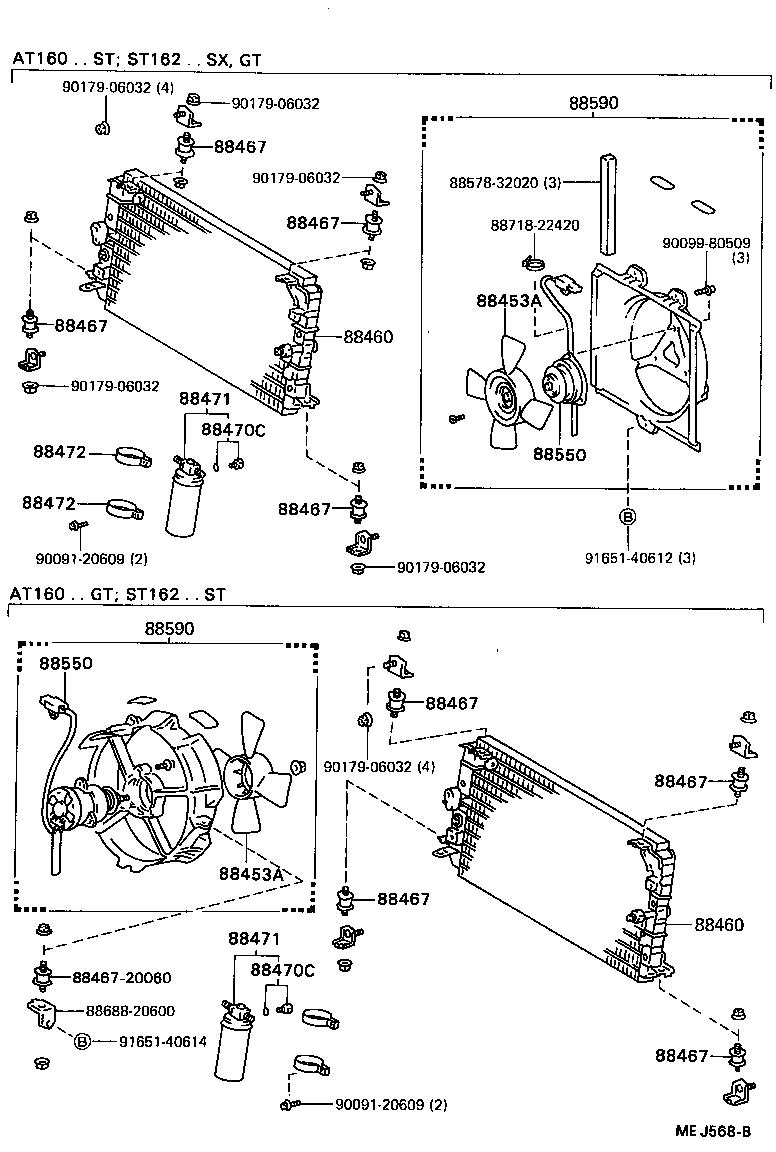

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
AT160,ST162 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20200 |
AT160,ST162 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-20060 |
AT160,ST162 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-20060 |
AT160,ST162 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-20060 |
AT160,ST162 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-20060 |
AT160,ST162 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-20060 |
AT160,ST162 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-20060 |
AT160,ST162 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-20060 |
AT160,ST162 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-20060 |
AT160,ST162 |
4 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
AT160,ST162 |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
AT160,ST162 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88470-14010 |
AT160,ST162 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88470-14010 |
AT160,ST162 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
ST162..ARL UPR |
1 | ||
| 88473-20030 |
ST162..ARL LWR |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
ST162..ARL UPR |
1 | ||
| 88473-20030 |
ST162..ARL LWR |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20080 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20080 |
AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
1 | ||
| Common parts | ||||
| 88467-20060 | ||||
| 88578-32020 | ||||
| 88688-20600 | ||||
| 88718-22420 | ||||
| 90091-20609 | ||||
| 90099-80509 | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||

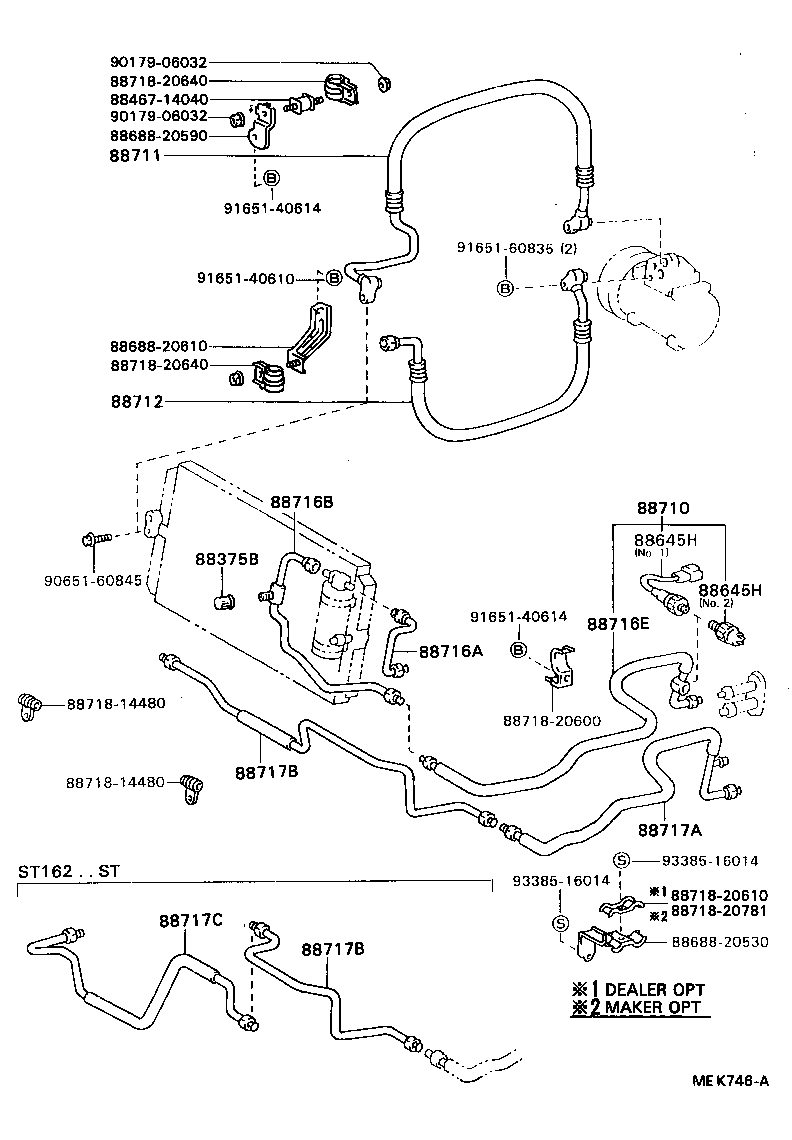

ILLUST NO. 2 OF 2(8708- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AT160,ST162 NO.1 |
1 | ||
| 88645-10020 |
AT160,ST162 NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
AT160,ST162 NO.1 |
1 | ||
| 88645-10020 |
AT160,ST162 NO.2 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20170 |
ST162..ST |
1 | ||
| 88710-20160 |
ST162..SX |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20450 |
ST162..ARL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-20560 |
ST162..SX |
1 | ||
| 88712-20700 |
ST162..ST |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B011 |
AT160,ST162 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2B400 |
ST162..ARL |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2B380 |
ST162..SX |
1 | ||
| 88716-2B390 |
ST162..ST |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-20690 |
ST162..SX |
1 | ||
| 88717-20700 |
ST162..ST |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-20720 |
ST162..SX |
1 | ||
| 88717-20660 |
ST162..ST |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-20720 |
ST162..SX |
1 | ||
| 88717-20660 |
ST162..ST |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-20710 |
ST162..ST |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88688-20530 | ||||
| 88688-20590 | ||||
| 88688-20610 | ||||
| 88718-14480 | ||||
| 88718-20600 | ||||
| 88718-20610 | ||||
| 88718-20640 | ||||
| 88718-20781 | ||||
| 90179-06032 | ||||
| 90651-60845 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
| 93385-16014 | ||||
