ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

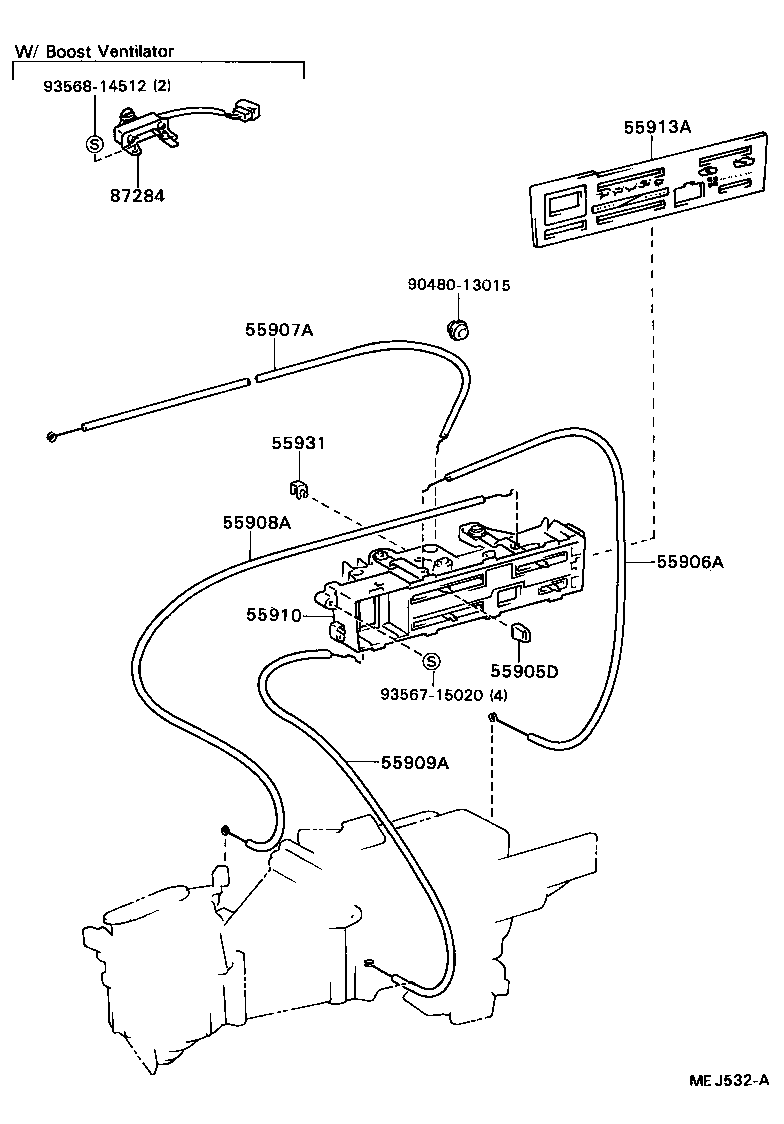

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 55905D 55906A 55907A 55908A 55909A 55910 55913A 55931 87284 9048013015 9356715020 9356814512
Part # Description Qty Price
55905D - KNOB SUB-ASSY, CONTROL
55905-12070

ST162..ARL

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20210

ST162..ARL

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20180

ST162..ARL

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20100

ST162..ARL

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20050

ST162..ARL

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20370

ST162..ARL

 1
55913A - PLATE, HEATER CONTROL LEVER GUIDE
55519-20230

ST162..ARL

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-20040

ST162..ARL

 4
Common parts
90480-13015
93567-15020
93568-14512

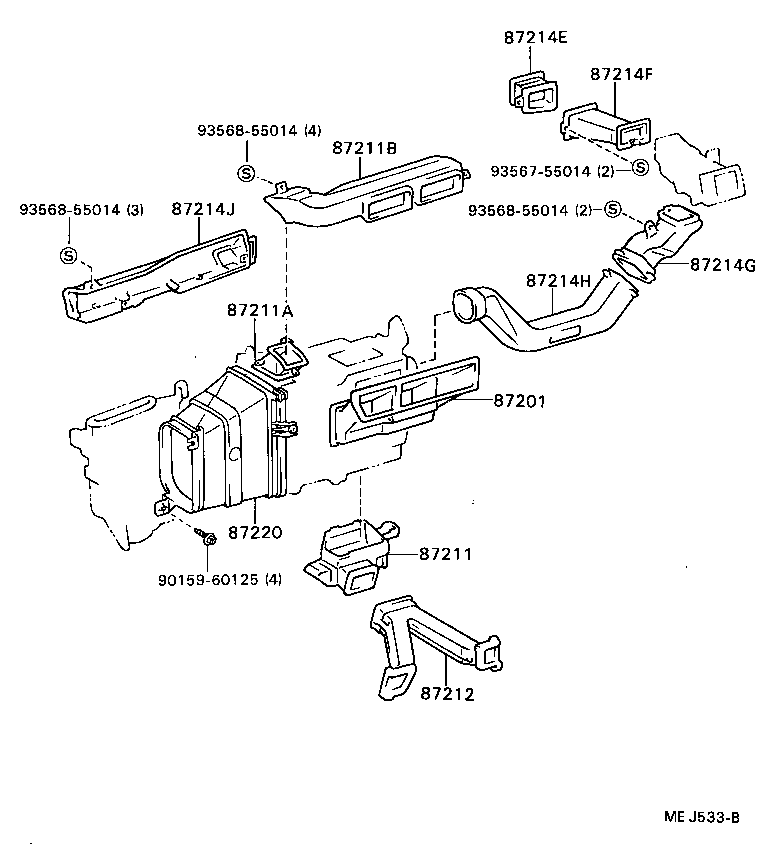

ILLUST NO. 1 OF 2(8708- )RHD

Click highlighted areas on diagram

diagram 87201 87211 87211A 87211B 87212 87214E 87214F 87214G 87214H 87214J 87220 9015960125 9356755014 9356855014 9356855014 9356855014
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20150

AT160,ST162..RHD

 1
87211 - DUCT, AIR, NO.1
87211-20090

AT160,ST162..RHD

 1
87211A - DUCT, AIR, NO.2
87201-20180

AT160,ST162..RHD

 1
87211B - DUCT, AIR, NO.3
55087-20060

AT160,ST162..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87202-20020

AT160,ST162..RHD

 1
87214E - BOOT, SIDE VENTILATOR DUCT, RH
55863-20040

AT160,ST162..RHD

 1
87214F - DUCT, COWL TO REGISTER, NO.1
55841-20050

AT160,ST162..RHD

 1
87214G - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-20110

AT160,ST162..RHD

 1
87214H - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-20060

AT160,ST162..RHD

 1
87214J - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-20050

AT160,ST162..RHD

 1
87220 - DUCT ASSY, AIR
87220-20010

AT160,ST162..RHD

 1
Common parts
90159-60125
93567-55014
93568-55014
