ST162R-BLMVFQ (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

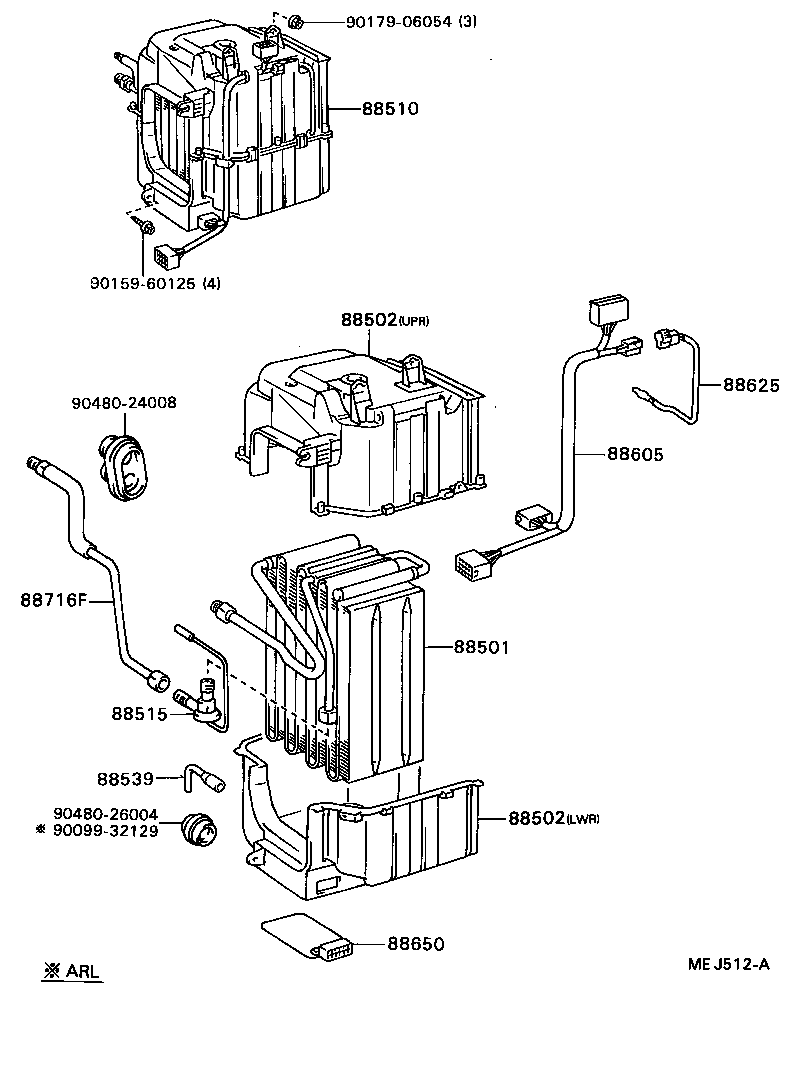

Click highlighted areas on diagram

diagram 88501 88502 88502 88510 88515 88539 88605 88625 88650 88716F 9009932129 9015960125 9017906054 9048024008 9048026004
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20201

AT160,ST162..RHD

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-20090

ST162..ARL

UPR

 1
88502-20100

ST162..ARL

LWR

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-20090

ST162..ARL

UPR

 1
88502-20100

ST162..ARL

LWR

 1
88510 - UNIT ASSY, COOLER
88510-20560

ST162..SX

 1
88510-20550

ST162..ST

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

AT160,ST162..RHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110

AT160,ST162..RHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-20670

ST162..SX

 1
88605-20590

AT160,ST162..RHD..(GT,ST)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

AT160,ST162..RHD

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20350

ST162..ST

 1
88650-20370

ST162..SX

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-2B040

ST162..ARL

 1
Common parts
90099-32129
90159-60125
90179-06054
90480-24008
90480-26004
