ST162R-BLMVFQ (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

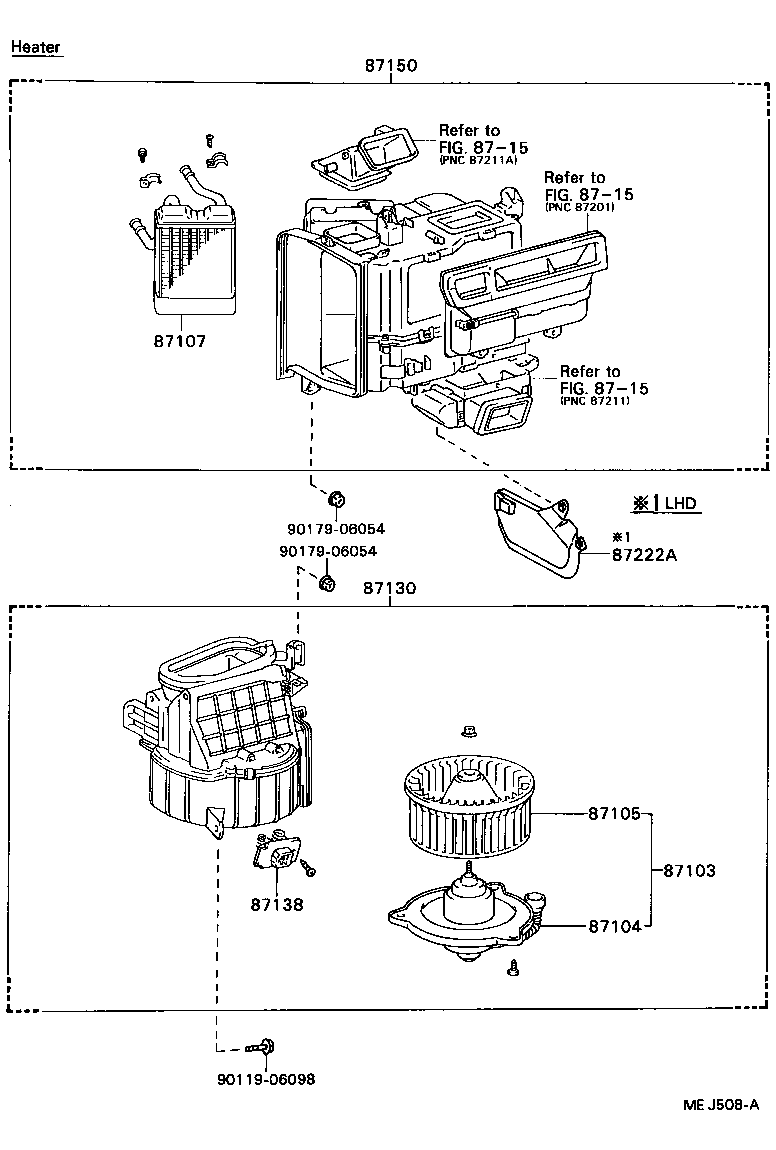

(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-20170 |
ST162..ARL |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
ST162..ARL |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20430 |
AT160,ST162..RHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-20160 |
ST162..ARL |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-20100 |
ST162..ARL |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-20560 |
AT160,ST162..RHD |
1 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90179-06054 | ||||
| Linked diagrams | ||||
| 8715 | ||||

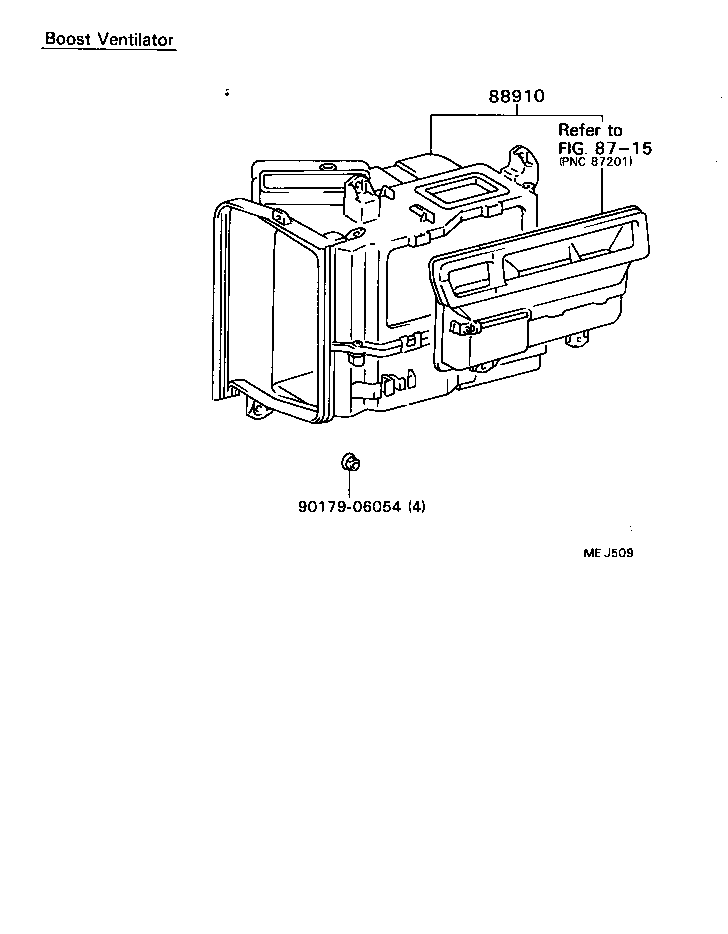

(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06054 | ||||
| Linked diagrams | ||||
| 8715 | ||||
